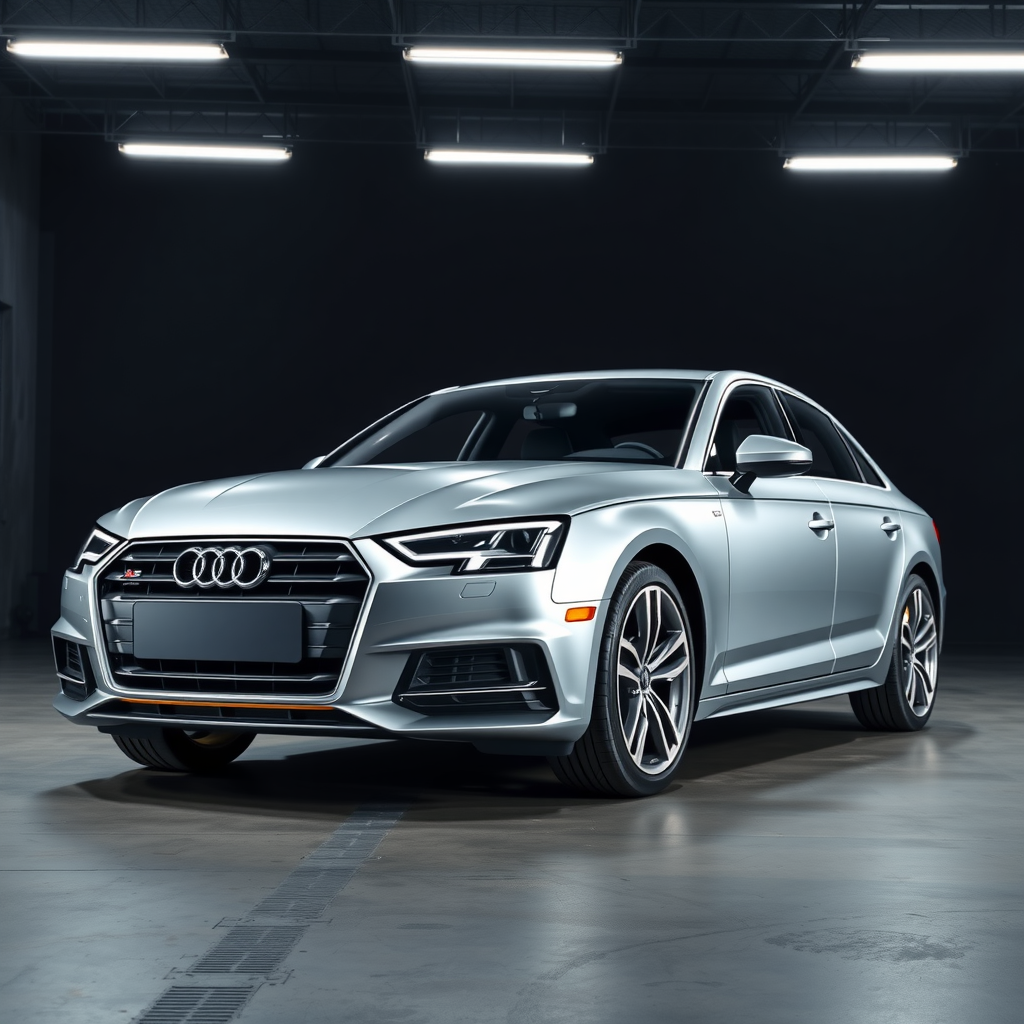

Audi A4 wheel fitment — B9 Facelift
Overview
The Audi A4 B9 Facelift is a luxury compact executive car produced by Audi AG from 2019 to 2025, built on the Volkswagen Group MLB platform. It features front-engine design with transaxle-type transmissions and is available in sedan and station wagon body styles. The generation sees improvements over its predecessor, including updated styling, enhanced technology, and refined performance characteristics.
History & notable variants
The B9 Facelift marks a significant update to the Audi A4 series, introduced as part of Audi's ongoing efforts to maintain competitiveness in the luxury compact executive car segment. Notable changes include refreshed exterior design elements, upgraded interior features, and improved connectivity options. The model also saw the introduction of new performance variants and received positive reception for its blend of luxury and practicality.
Audi A4 wheel fitment
Everything below is what the fit-check uses for Audi A4 wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the Audi A4 B9 Facelift.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14x1.5 (bolts) |
| Wheel-bolt torque | 120 Nm |
| Seat type | radius |
| Factory setup | square |
| TPMS | indirect |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 6.5J–8.5J | ET18–ET45 |
Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 1.4 TFSI | VW EA211, 1,395 cc, CVNA | petrol | 110 kW (150 PS) | FWD, 2015 to 2018 |
| 2.0 TFSI ultra | VW EA888, 1,984 cc, CVKB / / DEMA (MHEV) | petrol | 140 kW (190 PS) | FWD, 2015 to 2018 |
| 2.0 TFSI g-tron | VW EA888, 1,984 cc, CVLA | petrol | 125 kW (170 PS) | FWD, 2017 to 2018 |
| 2.0 TFSI | VW EA888, 1,984 cc, CYRB / / DDWA (MHEV) | petrol | 185 kW (252 PS) | FWD or AWD, 2015 to 2018 |
| 3.0 TFSI (S4) | VW EA839, 2,995 cc, CWGD | petrol | 260 kW (354 PS) | quattro, 2015 to 2018 |
| 2.9 TFSI (RS4) | VW EA839, 2,894 cc, DECA | petrol | 331 kW (450 PS) | quattro, 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DEUC | diesel | 90 kW (122 PS) | FWD, 2016 to 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DEUA | diesel | 110 kW (150 PS) | FWD or AWD, 2015 to 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DETA | diesel | 140 kW (190 PS) | FWD or AWD, 2015 to 2018 |
| 3.0 TDI | VW EA897 evo, 2,967 cc, CSWB | diesel | 160 kW (218 PS) | FWD or AWD, 2015 to 2019 |
| 3.0 TDI | VW EA897 evo, 2,967 cc, CRTC | diesel | 200 kW (272 PS) | quattro, 2015 to 2018 |
| 35 TFSI | VW EA888, 1,984 cc, DLVB | petrol | 110 kW (150 PS) | FWD, 2018 to 2019 |
| 40 TFSI | VW EA888, 1,984 cc, DLVA | petrol | 140 kW (190 PS) | FWD, 2018 to 2019 |
| 40 g-tron | VW EA888, 1,984 cc, DRXA | petrol | 125 kW (170 PS) | FWD, 2019 |
| 45 TFSI | VW EA888, 1,984 cc, DKNA | petrol | 180 kW (245 PS) | FWD or AWD, 2019 |
| RS4 | VW EA839, 2,894 cc, DECA | petrol | 331 kW (450 PS) | quattro, 2019 |
| 30 TDI | VW EA288 evo, 1,968 cc, DEUC | diesel | 90 kW (122 PS) | FWD, 2018 to 2019 |
| 35 TDI | VW EA288 evo, 1,968 cc, DEUA | diesel | 110 kW (150 PS) | FWD, 2018 to 2019 |
| 40 TDI | VW EA288 evo, 1,968 cc, DETA | diesel | 140 kW (190 PS) | FWD or AWD, 2018 to 2019 |
| 45 TDI | VW EA897 evo2, 2,967 cc, DCPE | diesel | 170 kW (231 PS) | quattro, 2019 |
| 50 TDI | VW EA897 evo2, 2,967 cc, DCPC | diesel | 210 kW (286 PS) | quattro, 2019 |
| 35 TFSI | VW EA888, 1,984 cc | petrol | 110 kW (150 PS) | FWD, 2019 to 2020 |
| 35 TFSI | VW EA888, 1,984 cc, DMSB | petrol | 110 kW (150 PS) | FWD, 2020 to 2023 |
| 35 TFSI | VW EA888, 1,984 cc | petrol | 110 kW (150 PS) | FWD, 2023 to 2024 |
| 40 g-tron | VW EA888, 1,984 cc | petrol | 125 kW (170 PS) | FWD, 2020 to 2023 |
| 40 TFSI | VW EA888, 1,984 cc | petrol | 140 kW (190 PS) | FWD, 2019 to 2020 |
| 40 TFSI | VW EA888, 1,984 cc, DMSA | petrol | 150 kW (204 PS) | FWD or AWD, 2020 to 2023 |
| 40 TFSI | VW EA888, 1,984 cc | petrol | 150 kW (204 PS) | FWD or AWD, 2023 to 2024 |
| 45 TFSI | VW EA888, 1,984 cc, DNPA, DRYA | petrol | 180 kW (245 PS) | AWD, 2019 to 2020 |
| 45 TFSI | VW EA888, 1,984 cc, DNP, DRY | petrol | 195 kW (265 PS) | AWD, 2020 to 2023 |
| 45 TFSI | VW EA888, 1,984 cc | petrol | 195 kW (265 PS) | AWD, 2023 to 2024 |
| RS4 | VW EA839, 2,894 cc | petrol | 331 kW (450 PS) | AWD, 2019 to 2020 |
| RS4 | VW EA839, 2,894 cc | petrol | 331 kW (450 PS) | AWD, 2021 to 2023 |
| RS4 | VW EA839, 2,894 cc | petrol | 331 kW (450 PS) | AWD, 2023 to 2024 |
| RS4 Edition 25 Years | VW EA839, 2,894 cc | petrol | 346 kW (470 PS) | AWD, 2024 |
| 30 TDI | VW EA288evo, 1,968 cc | diesel | 90 kW (122 PS) | FWD, 2019 to 2020 |
| 30 TDI | VW EA288evo, 1,968 cc, DEZB | diesel | 100 kW (136 PS) | FWD, 2019 to 2020 |
| 30 TDI | VW EA288evo, 1,968 cc | diesel | 100 kW (136 PS) | FWD, 2020 to 2023 |
| 30 TDI | VW EA288evo, 1,968 cc | diesel | 100 kW (136 PS) | FWD, 2023 to 2024 |
| 35 TDI | VW EA288evo, 1,968 cc, DEZE | diesel | 120 kW (163 PS) | FWD, 2019 to 2020 |
Source: Audi A4 B9, de.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| 1.4 TFSI | 110 kW (150 PS) | 8.5 to 9 s | 210 km/h (130 mph) |
| 2.0 TFSI ultra | 140 kW (190 PS) | 7.2 to 7.5 s | 236 to 240 km/h (147 to 149 mph) |
| 2.0 TFSI g-tron | 125 kW (170 PS) | 8.4 to 8.5 s | 221 to 223 km/h (137 to 139 mph) |
| 2.0 TFSI | 185 kW (252 PS) | 5.8 to 6.3 s | 250 km/h (155 mph) |
| 3.0 TFSI (S4) | 260 kW (354 PS) | 4.7 to 4.9 s | 250 km/h (155 mph) |
| 2.9 TFSI (RS4) | 331 kW (450 PS) | 4.1 s | 250 to 280 km/h (155 to 174 mph) |
| 2.0 TDI | 90 kW (122 PS) | 10.2 to 10.5 s | 204 to 205 km/h (127 to 127 mph) |
| 2.0 TDI | 110 kW (150 PS) | 8.5 to 9.2 s | 210 to 221 km/h (130 to 137 mph) |
| 2.0 TDI | 140 kW (190 PS) | 7.2 to 7.9 s | 210 to 240 km/h (130 to 149 mph) |
| 3.0 TDI | 160 kW (218 PS) | 6.3 to 6.7 s | 245 to 250 km/h (152 to 155 mph) |
| 3.0 TDI | 200 kW (272 PS) | 5.3 to 5.4 s | 250 km/h (155 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.6 to 9.2 s | 219 to 225 km/h (136 to 140 mph) |
| 40 TFSI | 140 kW (190 PS) | 7.2 to 7.5 s | 236 to 241 km/h (147 to 150 mph) |
| 40 g-tron | 125 kW (170 PS) | 8.4 s | 221 km/h (137 mph) |
| 45 TFSI | 180 kW (245 PS) | 5.8 to 6.5 s | 250 km/h (155 mph) |
| RS4 | 331 kW (450 PS) | 4.1 s | 250 to 280 km/h (155 to 174 mph) |
| 30 TDI | 90 kW (122 PS) | 10.6 to 11 s | 198 to 204 km/h (123 to 127 mph) |
| 35 TDI | 110 kW (150 PS) | 8.9 to 9.2 s | 213 to 219 km/h (132 to 136 mph) |
| 40 TDI | 140 kW (190 PS) | 7.4 to 7.9 s | 231 to 241 km/h (144 to 150 mph) |
| 45 TDI | 170 kW (231 PS) | 6 to 6.1 s | 249 to 250 km/h (155 to 155 mph) |
| 50 TDI | 210 kW (286 PS) | 5.2 to 5.3 s | 250 km/h (155 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.6 to 9.2 s | 210 to 224 km/h (130 to 139 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.9 to 9.2 s | 210 km/h (130 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.9 to 9.2 s | 210 km/h (130 mph) |
| 40 g-tron | 125 kW (170 PS) | 8.4 s | 221 km/h (137 mph) |
| 40 TFSI | 140 kW (190 PS) | 7.2 to 7.5 s | 236 to 241 km/h (147 to 150 mph) |
| 40 TFSI | 150 kW (204 PS) | 6.7 to 7.3 s | 210 km/h (130 mph) |
| 40 TFSI | 150 kW (204 PS) | 6.7 to 7.3 s | 210 km/h (130 mph) |
| 45 TFSI | 180 kW (245 PS) | 5.8 to 6 s | 250 km/h (155 mph) |
| 45 TFSI | 195 kW (265 PS) | 5.5 to 5.8 s | 250 km/h (155 mph) |
| 45 TFSI | 195 kW (265 PS) | 5.5 to 5.7 s | 250 km/h (155 mph) |
| RS4 | 331 kW (450 PS) | 4.1 s | 250 to 280 km/h (155 to 174 mph) |
| RS4 | 331 kW (450 PS) | 3.9 to 4.1 s | 250 to 290 km/h (155 to 180 mph) |
| RS4 | 331 kW (450 PS) | 3.9 to 4.1 s | 250 to 290 km/h (155 to 180 mph) |
| RS4 Edition 25 Years | 346 kW (470 PS) | 3.7 s | 300 km/h (186 mph) |
| 30 TDI | 90 kW (122 PS) | 10.9 to 11.3 s | 200 to 205 km/h (124 to 127 mph) |
| 30 TDI | 100 kW (136 PS) | 9.5 to 9.8 s | 211 to 214 km/h (131 to 133 mph) |
| 30 TDI | 100 kW (136 PS) | 9.5 to 9.8 s | 210 km/h (130 mph) |
| 30 TDI | 100 kW (136 PS) | 9.5 to 9.8 s | 210 km/h (130 mph) |
| 35 TDI | 120 kW (163 PS) | 8.2 to 8.5 s | 223 to 228 km/h (139 to 142 mph) |
Source: Audi A4 B9, de.wikipedia.org.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 242,314 Audi A4 on UK roads, placing it in the top 1% of car models by volume across our fitment database.
That makes Audi A4 wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 4,725 to 4,782 mm |
| Width | 1,842 to 1,866 mm |
| Height | 1,404 to 1,434 mm |
| Wheelbase | 2,820 mm |
| Kerb weight | 1,395 to 1,910 kg |
Source: Audi A4 B9, de.wikipedia.org.
Body styles & production
| Body styles | 4-door saloon/sedan, 5-door Avant (estate/wagon) |
| Produced | 2019–2026 |
Factory colours
Trim levels
Reliability & owner notes
- Pros: Updated styling, enhanced technology features, improved performance
- Cons: No specific cons mentioned in the reference
- Common issues: None reported for this generation
