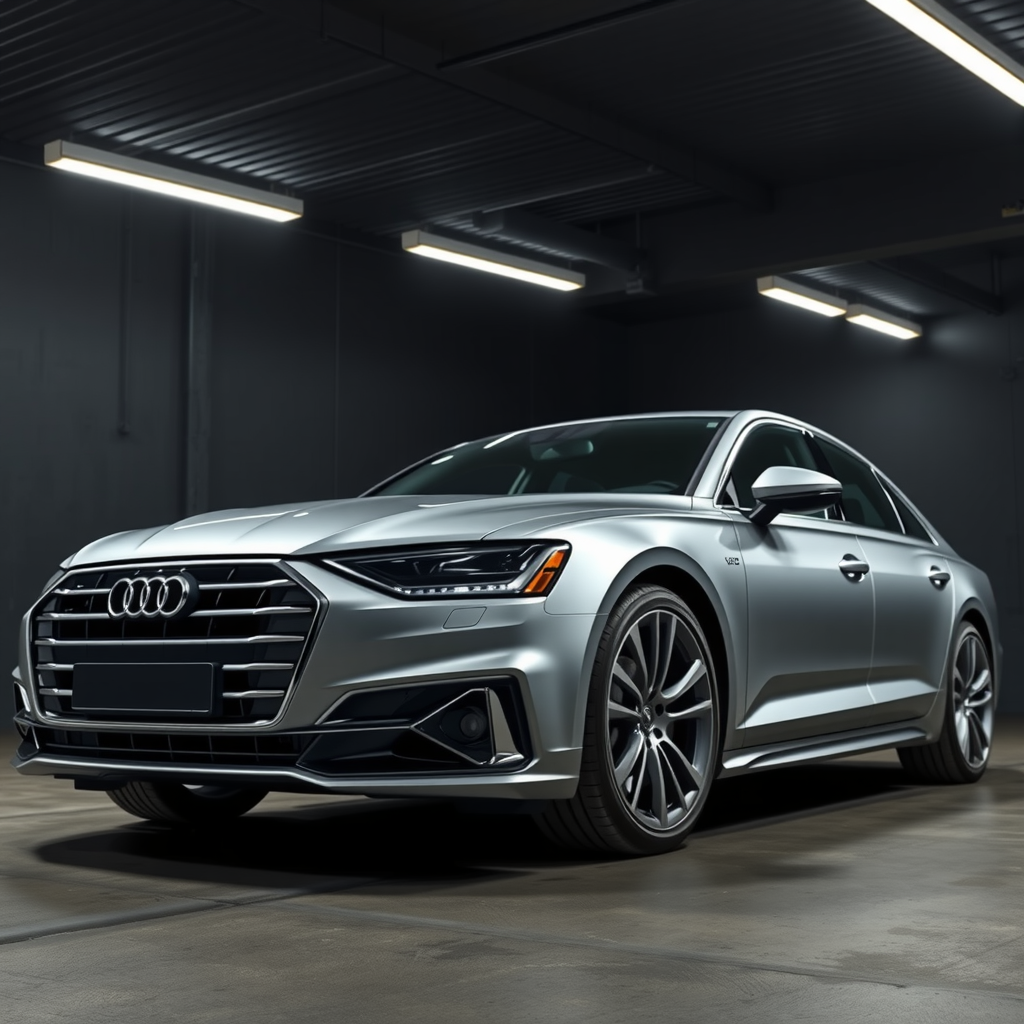

Audi A8 wheel fitment — D5
Overview
The Audi A8 D5 is the fourth generation of the full-size luxury sedan manufactured by Audi from 2017 to 2026. It was built at the Neckarsulm factory in Germany and uses the MLB platform, featuring an aluminum chassis for lightweight construction. Compared to its predecessor (D4), it introduced advanced technology features such as Matrix LED headlights and a more sophisticated MMI infotainment system. The A8 D5 competes with luxury sedans like the Mercedes-Benz S-Class and BMW 7 Series.
History & notable variants
The Audi A8 D5 was launched in 2017, marking a significant shift towards advanced technology and comfort features. In March 2026, it was announced that orders for the A8 were being phased out in Germany, signaling the end of this generation. Notable changes included a mid-cycle refresh (LCI) in 2020 which introduced new exterior styling elements and enhanced interior materials. The high-performance variant, Audi S8, also received updates to maintain its performance edge.
Audi A8 wheel fitment
Everything below is what the fit-check uses for Audi A8 wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the Audi A8 D5.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14x1.5 (bolts) |
| Wheel-bolt torque | 120 Nm |
| Seat type | radius |
| Factory setup | square |
| TPMS | indirect |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 7J–10J | ET15–ET45 |
As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 55 TFSI | 2,995 cc | petrol | 250 kW (340 PS) | 2017 to 2018 |
| 55 TFSI | 2,995 cc | petrol | 250 kW (340 PS) | 2019 to present |
| 60 TFSI | 3,996 cc | petrol | 338 kW (460 PS) | 2020 to present |
| S8 TFSI | 3,996 cc | petrol | 420 kW (571 PS) | 2019 to present |
| 50 TDI | 2,967 cc | diesel | 210 kW (286 PS) | 2017 to 2018 |
| 50 TDI | 2,967 cc | diesel | 210 kW (286 PS) | 2018 to present |
| 60 TDI | 3,956 cc | diesel | 320 kW (435 PS) | 2019 to present |
| 60 TFSI e | 2,995 cc | phev | 250 kW (340 PS) | 2019 to present |
Source: Audi A8, en.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| 55 TFSI | 250 kW (340 PS) | 5.6 to 5.7 s | 250 km/h (155 mph) |
| 55 TFSI | 250 kW (340 PS) | 5.6 to 5.7 s | 250 km/h (155 mph) |
| 60 TFSI | 338 kW (460 PS) | 4.4 s | 250 km/h (155 mph) |
| S8 TFSI | 420 kW (571 PS) | 3.8 s | 250 km/h (155 mph) |
| 50 TDI | 210 kW (286 PS) | 5.9 s | 250 km/h (155 mph) |
| 50 TDI | 210 kW (286 PS) | 5.9 s | 250 km/h (155 mph) |
| 60 TDI | 320 kW (435 PS) | 4.4 s | 250 km/h (155 mph) |
| 60 TFSI e | 250 kW (340 PS) | 4.9 s | 250 km/h (155 mph) |
Source: Audi A8, en.wikipedia.org.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 9,653 Audi A8 on UK roads, placing it in the top 14% of car models by volume across our fitment database.
A parc that size is why Audi A8 wheel fitment is worth getting exactly right: a lot of owners are shopping for these numbers.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 5,172 to 5,432 mm |
| Width | 1,945 mm |
| Height | 1,473 to 1,485 mm |
| Wheelbase | 2,998 to 3,258 mm |
| Kerb weight | 1,995 to 2,415 kg |
Source: Audi A8 D5, de.wikipedia.org.
Body styles & production
| Body styles | Limousine |
| Produced | 2017–2026 |
Factory colours
Trim levels
Reliability & owner notes
- Pros: Advanced technology features, lightweight construction, powerful engines
- Cons: High price point, limited availability in later years
