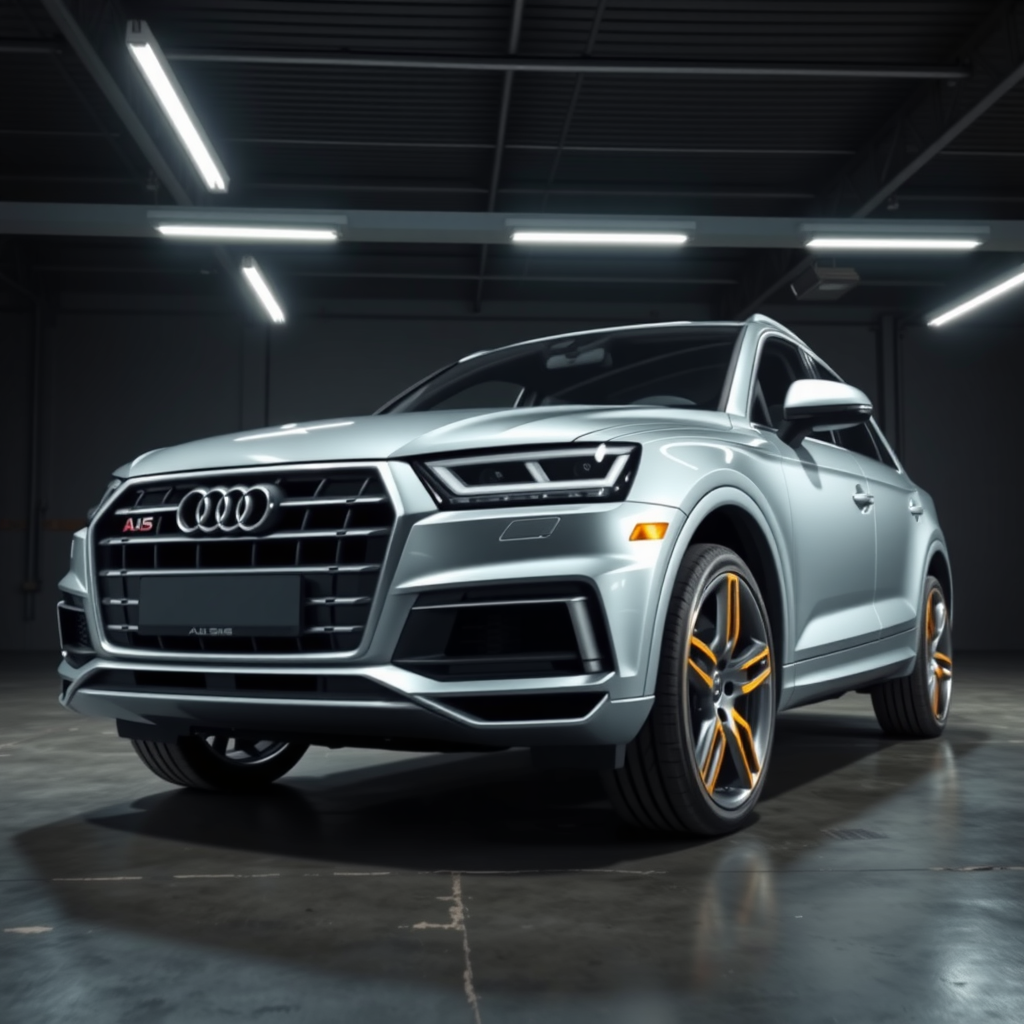

Audi Q5 wheel fitment — FY Facelift
Audi Q5 wheel fitment
Audi Q5 wheel fitment for the Audi Q5 FY Facelift (2020–2026): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14x1.5 (bolts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | radius |
| Factory setup | square |
| TPMS | indirect |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 6.5J–9J | ET20–ET45 |
Width and offset move together: roughly 8 to 10 ET more for every extra 1J keeps the wheel inside the arch. Final offset and any spacer come from the fit-check.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 133,602 Audi Q5 on UK roads, placing it in the top 3% of car models by volume across our fitment database.
With that many on the road, Audi Q5 wheel fitment is a spec fitters see constantly. We keep it current for that reason.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Overview
The Audi Q5 first generation (Typ 8R) is a compact luxury crossover SUV produced by Audi from July 2008 to 2017. It was the third member of the B8 family, following the A5 and fourth-generation A4, all based on the Volkswagen Group MLB platform. The model features front-engine, front-wheel drive or quattro four-wheel-drive layouts. Initially available in a 5-door SUV body style, it later introduced a Sportback variant (2020–present).
Dimensions
| Length | 4,663 to 4,765 mm |
| Width | 1,893 mm |
| Height | 1,635 to 1,662 mm |
| Wheelbase | 2,819 to 2,908 mm |
| Kerb weight | 1,810 to 2,208 kg |
Source: Audi Q5 FY, de.wikipedia.org; EU type-approval data (EEA).
Body styles & production
| Body styles | 5-door SUV, 5-door coupé SUV (Sportback) |
| Produced | 2020–2026 |
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 2.0 TFSI | VW EA888, 1,984 cc | petrol | 140 kW (190 PS) | quattro, 2018 |
| 2.0 TFSI | VW EA888, 1,984 cc, DAXB | petrol | 185 kW (252 PS) | quattro, 2017 to 2018 |
| SQ5 TFSI | VW EA839, 2,995 cc, CWGD | petrol | 260 kW (354 PS) | quattro, 2017 to 2020 |
| 2.0 TDI | VW EA288, 1,968 cc, DEUA | diesel | 110 kW (150 PS) | FWD, 2017 to 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DETB | diesel | 120 kW (163 PS) | quattro, 2017 to 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DETA | diesel | 140 kW (190 PS) | quattro, 2017 to 2018 |
| 3.0 TDI | VW EA897evo2, 2,967 cc, DCPC | diesel | 210 kW (286 PS) | quattro, 2017 to 2018 |
| 45 TFSI | VW EA888, 1,984 cc, DNPA | petrol | 180 kW (245 PS) | quattro, 2019 to 2020 |
| 50 TFSI e | VW EA888, 1,984 cc | petrol | 220 kW (299 PS) | quattro, 2019 to 2020 |
| 55 TFSI e | VW EA888, 1,984 cc, DLGA | petrol | 270 kW (367 PS) | quattro, 2019 to 2020 |
| 35 TDI | VW EA288evo, 1,968 cc | diesel | 120 kW (163 PS) | FWD or AWD, 2018 to 2020 |
| 40 TDI | VW EA288evo, 1,968 cc | diesel | 140 kW (190 PS) | AWD, 2018 to 2020 |
| 40 TDI | VW EA288evo, 1,968 cc | diesel | 150 kW (204 PS) | AWD, 2019 to 2020 |
| 45 TDI | VW EA897evo2, 2,967 cc | diesel | 170 kW (231 PS) | AWD, 2019 to 2020 |
| 50 TDI | VW EA897evo2, 2,967 cc | diesel | 210 kW (286 PS) | AWD, 2019 to 2020 |
| SQ5 TDI | VW EA897evo2, 2,967 cc | diesel | 255 kW (347 PS) | AWD, 2019 to 2020 |
| 50 TFSI e | VW EA888evo4, 1,984 cc | petrol | 220 kW (299 PS) | quattro, 2021 to 2023 |
| 50 TFSI e | VW EA888evo4, 1,984 cc | petrol | 220 kW (299 PS) | quattro, 2023 to 2024 |
| 55 TFSI e | VW EA888evo4, 1,984 cc | petrol | 270 kW (367 PS) | quattro, 2021 to 2023 |
| 55 TFSI e | VW EA888evo4, 1,984 cc | petrol | 270 kW (367 PS) | quattro, 2023 to 2024 |
Source: Audi Q5 FY, de.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| 2.0 TFSI | 140 kW (190 PS) | 8.6 s | 210 km/h (130 mph) |
| 2.0 TFSI | 185 kW (252 PS) | 6.3 s | 237 km/h (147 mph) |
| SQ5 TFSI | 260 kW (354 PS) | 5.4 s | 250 km/h (155 mph) |
| 2.0 TDI | 110 kW (150 PS) | 9.7 s | 206 km/h (128 mph) |
| 2.0 TDI | 120 kW (163 PS) | 8.9 s | 211 km/h (131 mph) |
| 2.0 TDI | 140 kW (190 PS) | 7.6 to 7.9 s | 218 to 223 km/h (135 to 139 mph) |
| 3.0 TDI | 210 kW (286 PS) | 5.8 s | 237 km/h (147 mph) |
| 45 TFSI | 180 kW (245 PS) | 6.4 s | 237 km/h (147 mph) |
| 50 TFSI e | 220 kW (299 PS) | 6.1 s | 239 km/h (149 mph) |
| 55 TFSI e | 270 kW (367 PS) | 5.3 s | 239 km/h (149 mph) |
| 35 TDI | 120 kW (163 PS) | 9.1 s | 211 km/h (131 mph) |
| 40 TDI | 140 kW (190 PS) | 7.6 to 8.1 s | |
| 40 TDI | 150 kW (204 PS) | 7.6 s | 222 km/h (138 mph) |
| 45 TDI | 170 kW (231 PS) | 228 km/h (142 mph) | |
| 50 TDI | 210 kW (286 PS) | 5.9 s | 237 km/h (147 mph) |
| SQ5 TDI | 255 kW (347 PS) | 5.1 s | 250 km/h (155 mph) |
| 50 TFSI e | 220 kW (299 PS) | 6.1 s | 239 km/h (149 mph) |
| 50 TFSI e | 220 kW (299 PS) | 6.1 s | 239 km/h (149 mph) |
| 55 TFSI e | 270 kW (367 PS) | 5.3 s | 239 km/h (149 mph) |
| 55 TFSI e | 270 kW (367 PS) | 5.3 s | 239 km/h (149 mph) |
Source: Audi Q5 FY, de.wikipedia.org.
Trim levels
Factory colours
History & notable variants
The Q5 was unveiled at the 2008 Beijing Auto Show and made its North American debut at the Los Angeles Auto Show that year. It went on sale as a 2009 model in the US, with early models including petrol engines like the 3.2 FSI and diesel options such as the 2.0 TDI quattro. The vehicle underwent a facelift in 2012, introducing new engine configurations for improved efficiency and output.
Reliability & owner notes
- Pros: Compact luxury crossover SUV design; Quattro all-wheel drive option
- Cons: Carbon buildup issues in 3.2L FSI engine
- Common issues: Significant carbon buildup in secondary air injection system of the 3.2L FSI engine
