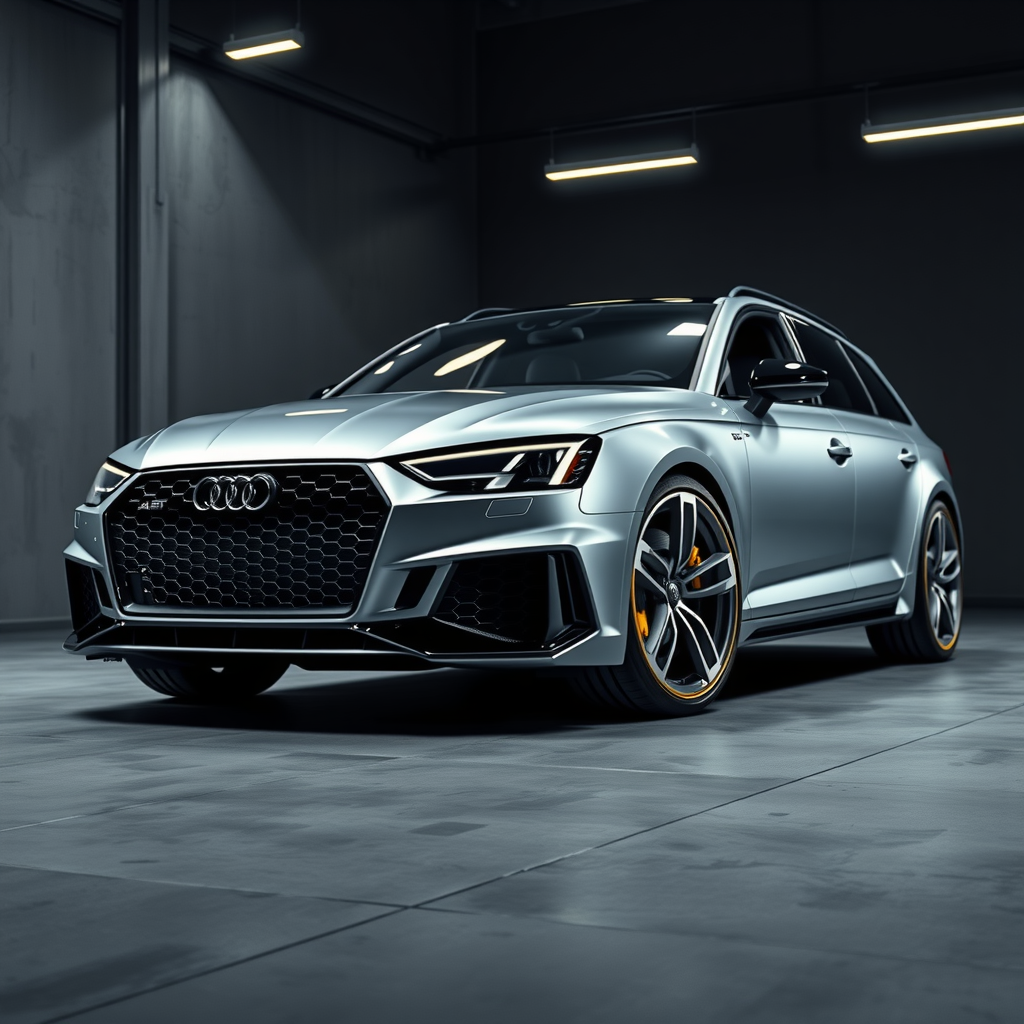

Audi RS4 wheel fitment — B9 Facelift
Audi RS4 wheel fitment
Audi RS4 wheel fitment for the Audi RS4 B9 Facelift (2019–2026): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14x1.5 (bolts) |
| Wheel-bolt torque | 120 Nm |
| Seat type | radius |
| Factory setup | square |
| TPMS | indirect |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8J–9.5J | ET10–ET31 |
Width and offset move together: roughly 8 to 10 ET more for every extra 1J keeps the wheel inside the arch. Final offset and any spacer come from the fit-check.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 5,870 Audi RS4 on UK roads, placing it in the top 17% of car models by volume across our fitment database.
That makes Audi RS4 wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Overview
The Audi RS 4 is a high-performance variant of the Audi A4 range produced by Audi Sport GmbH for AUDI AG, a division of the Volkswagen Group. It sits above the Audi S4 as the fastest and most sports-focused car based on the A4's 'B' automobile platform. The original B5 version was introduced in late 1999 for main production from 2000, succeeding the Porsche/Quattro GmbH joint venture-developed Audi RS2 Avant. It was available only as an Avant (station wagon) and built on the Volkswagen Group B5 platform shared with the A4 and S4.
Dimensions
| Length | 4,725 to 4,782 mm |
| Width | 1,842 to 1,866 mm |
| Height | 1,404 to 1,434 mm |
| Wheelbase | 2,820 mm |
| Kerb weight | 1,395 to 1,910 kg |
Source: Audi A4 B9, de.wikipedia.org.
Body styles & production
| Body styles | 5-door estate/wagon |
| Produced | 2019–2026 |
| Units produced | 6,030 |
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 1.4 TFSI | VW EA211, 1,395 cc, CVNA | petrol | 110 kW (150 PS) | FWD, 2015 to 2018 |
| 2.0 TFSI ultra | VW EA888, 1,984 cc, CVKB / / DEMA (MHEV) | petrol | 140 kW (190 PS) | FWD, 2015 to 2018 |
| 2.0 TFSI g-tron | VW EA888, 1,984 cc, CVLA | petrol | 125 kW (170 PS) | FWD, 2017 to 2018 |
| 2.0 TFSI | VW EA888, 1,984 cc, CYRB / / DDWA (MHEV) | petrol | 185 kW (252 PS) | FWD or AWD, 2015 to 2018 |
| 3.0 TFSI (S4) | VW EA839, 2,995 cc, CWGD | petrol | 260 kW (354 PS) | quattro, 2015 to 2018 |
| 2.9 TFSI (RS4) | VW EA839, 2,894 cc, DECA | petrol | 331 kW (450 PS) | quattro, 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DEUC | diesel | 90 kW (122 PS) | FWD, 2016 to 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DEUA | diesel | 110 kW (150 PS) | FWD or AWD, 2015 to 2018 |
| 2.0 TDI | VW EA288, 1,968 cc, DETA | diesel | 140 kW (190 PS) | FWD or AWD, 2015 to 2018 |
| 3.0 TDI | VW EA897 evo, 2,967 cc, CSWB | diesel | 160 kW (218 PS) | FWD or AWD, 2015 to 2019 |
| 3.0 TDI | VW EA897 evo, 2,967 cc, CRTC | diesel | 200 kW (272 PS) | quattro, 2015 to 2018 |
| 35 TFSI | VW EA888, 1,984 cc, DLVB | petrol | 110 kW (150 PS) | FWD, 2018 to 2019 |
| 40 TFSI | VW EA888, 1,984 cc, DLVA | petrol | 140 kW (190 PS) | FWD, 2018 to 2019 |
| 40 g-tron | VW EA888, 1,984 cc, DRXA | petrol | 125 kW (170 PS) | FWD, 2019 |
| 45 TFSI | VW EA888, 1,984 cc, DKNA | petrol | 180 kW (245 PS) | FWD or AWD, 2019 |
| RS4 | VW EA839, 2,894 cc, DECA | petrol | 331 kW (450 PS) | quattro, 2019 |
| 30 TDI | VW EA288 evo, 1,968 cc, DEUC | diesel | 90 kW (122 PS) | FWD, 2018 to 2019 |
| 35 TDI | VW EA288 evo, 1,968 cc, DEUA | diesel | 110 kW (150 PS) | FWD, 2018 to 2019 |
| 40 TDI | VW EA288 evo, 1,968 cc, DETA | diesel | 140 kW (190 PS) | FWD or AWD, 2018 to 2019 |
| 45 TDI | VW EA897 evo2, 2,967 cc, DCPE | diesel | 170 kW (231 PS) | quattro, 2019 |
| 50 TDI | VW EA897 evo2, 2,967 cc, DCPC | diesel | 210 kW (286 PS) | quattro, 2019 |
| 35 TFSI | VW EA888, 1,984 cc | petrol | 110 kW (150 PS) | FWD, 2019 to 2020 |
| 35 TFSI | VW EA888, 1,984 cc, DMSB | petrol | 110 kW (150 PS) | FWD, 2020 to 2023 |
| 35 TFSI | VW EA888, 1,984 cc | petrol | 110 kW (150 PS) | FWD, 2023 to 2024 |
| 40 g-tron | VW EA888, 1,984 cc | petrol | 125 kW (170 PS) | FWD, 2020 to 2023 |
| 40 TFSI | VW EA888, 1,984 cc | petrol | 140 kW (190 PS) | FWD, 2019 to 2020 |
| 40 TFSI | VW EA888, 1,984 cc, DMSA | petrol | 150 kW (204 PS) | FWD or AWD, 2020 to 2023 |
| 40 TFSI | VW EA888, 1,984 cc | petrol | 150 kW (204 PS) | FWD or AWD, 2023 to 2024 |
| 45 TFSI | VW EA888, 1,984 cc, DNPA, DRYA | petrol | 180 kW (245 PS) | AWD, 2019 to 2020 |
| 45 TFSI | VW EA888, 1,984 cc, DNP, DRY | petrol | 195 kW (265 PS) | AWD, 2020 to 2023 |
| 45 TFSI | VW EA888, 1,984 cc | petrol | 195 kW (265 PS) | AWD, 2023 to 2024 |
| RS4 | VW EA839, 2,894 cc | petrol | 331 kW (450 PS) | AWD, 2019 to 2020 |
| RS4 | VW EA839, 2,894 cc | petrol | 331 kW (450 PS) | AWD, 2021 to 2023 |
| RS4 | VW EA839, 2,894 cc | petrol | 331 kW (450 PS) | AWD, 2023 to 2024 |
| RS4 Edition 25 Years | VW EA839, 2,894 cc | petrol | 346 kW (470 PS) | AWD, 2024 |
| 30 TDI | VW EA288evo, 1,968 cc | diesel | 90 kW (122 PS) | FWD, 2019 to 2020 |
| 30 TDI | VW EA288evo, 1,968 cc, DEZB | diesel | 100 kW (136 PS) | FWD, 2019 to 2020 |
| 30 TDI | VW EA288evo, 1,968 cc | diesel | 100 kW (136 PS) | FWD, 2020 to 2023 |
| 30 TDI | VW EA288evo, 1,968 cc | diesel | 100 kW (136 PS) | FWD, 2023 to 2024 |
| 35 TDI | VW EA288evo, 1,968 cc, DEZE | diesel | 120 kW (163 PS) | FWD, 2019 to 2020 |
Source: Audi A4 B9, de.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| 1.4 TFSI | 110 kW (150 PS) | 8.5 to 9 s | 210 km/h (130 mph) |
| 2.0 TFSI ultra | 140 kW (190 PS) | 7.2 to 7.5 s | 236 to 240 km/h (147 to 149 mph) |
| 2.0 TFSI g-tron | 125 kW (170 PS) | 8.4 to 8.5 s | 221 to 223 km/h (137 to 139 mph) |
| 2.0 TFSI | 185 kW (252 PS) | 5.8 to 6.3 s | 250 km/h (155 mph) |
| 3.0 TFSI (S4) | 260 kW (354 PS) | 4.7 to 4.9 s | 250 km/h (155 mph) |
| 2.9 TFSI (RS4) | 331 kW (450 PS) | 4.1 s | 250 to 280 km/h (155 to 174 mph) |
| 2.0 TDI | 90 kW (122 PS) | 10.2 to 10.5 s | 204 to 205 km/h (127 to 127 mph) |
| 2.0 TDI | 110 kW (150 PS) | 8.5 to 9.2 s | 210 to 221 km/h (130 to 137 mph) |
| 2.0 TDI | 140 kW (190 PS) | 7.2 to 7.9 s | 210 to 240 km/h (130 to 149 mph) |
| 3.0 TDI | 160 kW (218 PS) | 6.3 to 6.7 s | 245 to 250 km/h (152 to 155 mph) |
| 3.0 TDI | 200 kW (272 PS) | 5.3 to 5.4 s | 250 km/h (155 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.6 to 9.2 s | 219 to 225 km/h (136 to 140 mph) |
| 40 TFSI | 140 kW (190 PS) | 7.2 to 7.5 s | 236 to 241 km/h (147 to 150 mph) |
| 40 g-tron | 125 kW (170 PS) | 8.4 s | 221 km/h (137 mph) |
| 45 TFSI | 180 kW (245 PS) | 5.8 to 6.5 s | 250 km/h (155 mph) |
| RS4 | 331 kW (450 PS) | 4.1 s | 250 to 280 km/h (155 to 174 mph) |
| 30 TDI | 90 kW (122 PS) | 10.6 to 11 s | 198 to 204 km/h (123 to 127 mph) |
| 35 TDI | 110 kW (150 PS) | 8.9 to 9.2 s | 213 to 219 km/h (132 to 136 mph) |
| 40 TDI | 140 kW (190 PS) | 7.4 to 7.9 s | 231 to 241 km/h (144 to 150 mph) |
| 45 TDI | 170 kW (231 PS) | 6 to 6.1 s | 249 to 250 km/h (155 to 155 mph) |
| 50 TDI | 210 kW (286 PS) | 5.2 to 5.3 s | 250 km/h (155 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.6 to 9.2 s | 210 to 224 km/h (130 to 139 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.9 to 9.2 s | 210 km/h (130 mph) |
| 35 TFSI | 110 kW (150 PS) | 8.9 to 9.2 s | 210 km/h (130 mph) |
| 40 g-tron | 125 kW (170 PS) | 8.4 s | 221 km/h (137 mph) |
| 40 TFSI | 140 kW (190 PS) | 7.2 to 7.5 s | 236 to 241 km/h (147 to 150 mph) |
| 40 TFSI | 150 kW (204 PS) | 6.7 to 7.3 s | 210 km/h (130 mph) |
| 40 TFSI | 150 kW (204 PS) | 6.7 to 7.3 s | 210 km/h (130 mph) |
| 45 TFSI | 180 kW (245 PS) | 5.8 to 6 s | 250 km/h (155 mph) |
| 45 TFSI | 195 kW (265 PS) | 5.5 to 5.8 s | 250 km/h (155 mph) |
| 45 TFSI | 195 kW (265 PS) | 5.5 to 5.7 s | 250 km/h (155 mph) |
| RS4 | 331 kW (450 PS) | 4.1 s | 250 to 280 km/h (155 to 174 mph) |
| RS4 | 331 kW (450 PS) | 3.9 to 4.1 s | 250 to 290 km/h (155 to 180 mph) |
| RS4 | 331 kW (450 PS) | 3.9 to 4.1 s | 250 to 290 km/h (155 to 180 mph) |
| RS4 Edition 25 Years | 346 kW (470 PS) | 3.7 s | 300 km/h (186 mph) |
| 30 TDI | 90 kW (122 PS) | 10.9 to 11.3 s | 200 to 205 km/h (124 to 127 mph) |
| 30 TDI | 100 kW (136 PS) | 9.5 to 9.8 s | 211 to 214 km/h (131 to 133 mph) |
| 30 TDI | 100 kW (136 PS) | 9.5 to 9.8 s | 210 km/h (130 mph) |
| 30 TDI | 100 kW (136 PS) | 9.5 to 9.8 s | 210 km/h (130 mph) |
| 35 TDI | 120 kW (163 PS) | 8.2 to 8.5 s | 223 to 228 km/h (139 to 142 mph) |
Source: Audi A4 B9, de.wikipedia.org.
Trim levels
Factory colours
History & notable variants
The original B5 version of the Audi RS 4 was produced from 1999 to 2001, marking its debut in late 1999. It succeeded the Audi RS2 Avant and was available only as an Avant (station wagon). The car featured a powerful V6 engine developed by Cosworth Technology and was equipped with Audi's Torsen-based quattro permanent four-wheel drive system.
Reliability & owner notes
- Pros: Powerful V6 engine, advanced technology features, high-performance quattro system
- Cons: Limited production run, only available as an Avant (station wagon)
