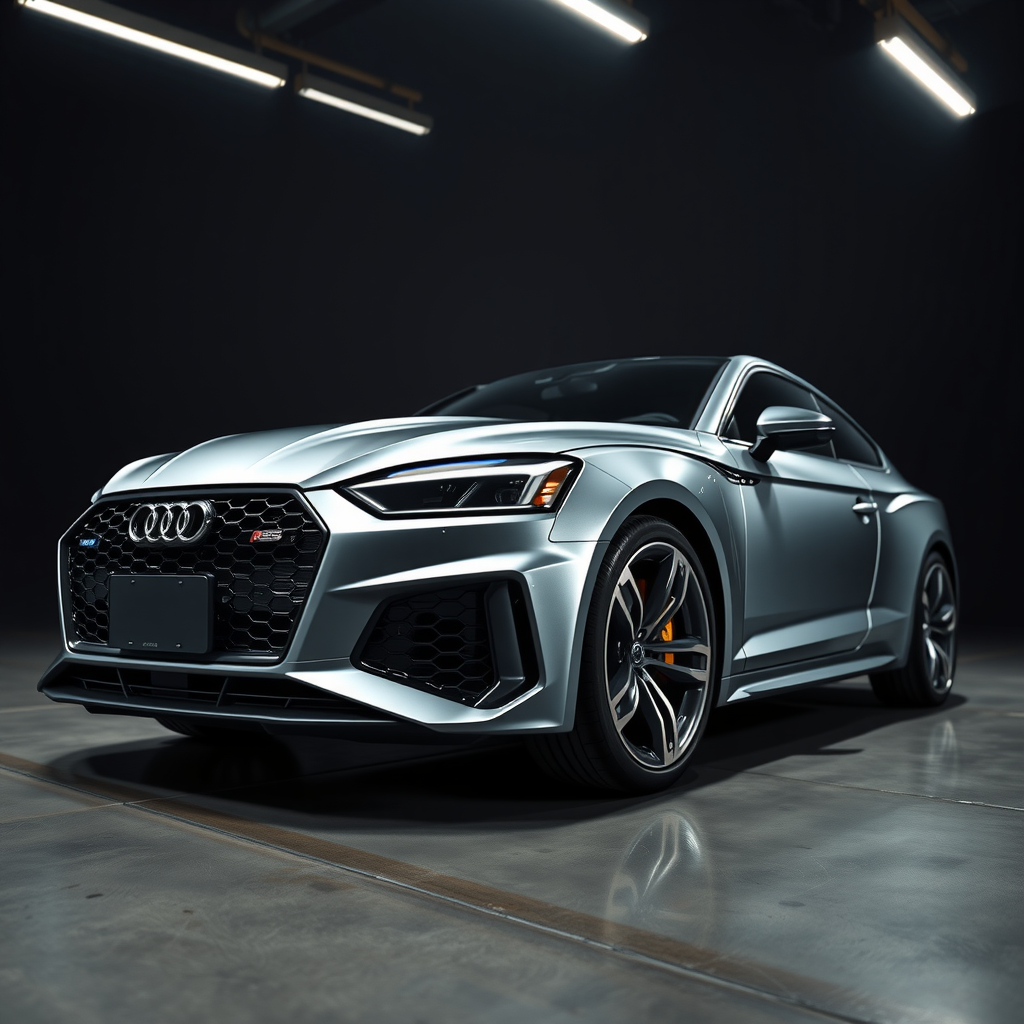

Audi RS5 F5 Facelift side profile — Audi RS5 wheel fitment

Audi RS5 wheel fitment — F5 Facelift

By Torque, AIWheelTech vehicle & fitment specialist · 2020–2026
The Audi RS5 F5 Facelift (2020–2026) uses a 5x112 bolt pattern, 66.6 mm centre bore, M14x1.5 bolts torqued to ~120 Nm. It accepts ~8J–9.5J wheels at ET10–ET31. That is the short version of Audi RS5 wheel fitment; the full picture is below.

Overview

The Audi A5 is a series of compact executive and grand touring coupé cars produced by Audi since June 2007, derived from the Audi A4 saloon and estate models. The first generation (Type 8T) belongs to the B8 family and was introduced at the Geneva Motor Show in March 2007. It includes coupe, cabriolet, and Sportback variants, with the latter being a five-door liftback with a fastback roofline. This generation marked Audi's return to the compact executive coupé market after a long absence.

History & notable variants

The A5 was unveiled at the Geneva Motor Show in March 2007 alongside its S5 variant. Orders began on the same day, and first deliveries were made in June 2007. The model range includes petrol and diesel engines with manual and automatic transmissions. Notable variants include the RS5 coupé introduced in 2010, featuring a powerful 4.2 FSI engine and advanced quattro all-wheel-drive system.

Audi RS5 wheel fitment

Everything below is what the fit-check uses for Audi RS5 wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the Audi RS5 F5 Facelift.

Bolt pattern (PCD)5x112
Centre bore66.6 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque120 Nm
Seat typeradius
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front8J–9.5JET10–ET31

Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.

Browse wheels that fit a Audi RS5 →Get them fitted (UK)

Engines & drivetrain

VariantEngineFuelPowerDrive, years
1.4 TFSIVW EA211, 1,395 ccpetrol110 kW (150 PS)FWD, 2017 to present
2.0 g-tronVW EA888, 1,984 cc, CVLpetrol125 kW (170 PS)FWD, 2017 to 2018
2.0 TFSI ultraVW EA888, 1,984 cc, CVKBpetrol140 kW (190 PS)FWD, 2016 to 2018
2.0 TFSIVW EA888, 1,984 cc, CYRBpetrol185 kW (252 PS)FWD or quattro, 2016 to 2018
S5VW EA839, 2,995 cc, CWGDpetrol260 kW (354 PS)quattro, 2016 to 2018
RS5VW EA839, 2,894 cc, DECApetrol331 kW (450 PS)quattro, 2017 to 2018
2.0 TDIVW EA288, 1,968 cc, CZHA, DEUAdiesel110 kW (150 PS)FWD or quattro, 2017 to 2018
2.0 TDI ultraVW EA288, 1,968 cc, DETAdiesel140 kW (190 PS)FWD, 2016 to 2018
2.0 TDIVW EA288, 1,968 cc, DESAdiesel140 kW (190 PS)FWD or quattro, 2016 to 2018
3.0 TDIVW EA897 evo, 2,967 cc, CSWBdiesel160 kW (218 PS)FWD or quattro, 2016 to 2018
3.0 TDIVW EA897 evo, 2,967 cc, CRTCdiesel200 kW (272 PS)AWD, 2017
3.0 TDIVW EA897 evo2, 2,967 cc, DCPCdiesel210 kW (286 PS)AWD, 2017 to 2018
35 TFSIVW EA888, 1,984 cc, DLVBpetrol110 kW (150 PS)FWD, 2018 to 2019
35 TFSIVW EA888, 1,984 cc, DMSBpetrol110 kW (150 PS)FWD, 2020 to 2024
40 TFSIVW EA888, 1,984 cc, DLVApetrol140 kW (190 PS)FWD, 2018 to 2020
40 TFSIVW EA888, 1,984 cc, DMSApetrol150 kW (204 PS)FWD or quattro, 2020 to 2024
40 g-tronVW EA888, 1,984 cc, CVLApetrol125 kW (170 PS)FWD, 2019 to 2020
40 g-tronVW EA888, 1,984 cc, DRXApetrol125 kW (170 PS)FWD, 2020 to 2023
45 TFSIVW EA888, 1,984 cc, DKNApetrol180 kW (245 PS)FWD or quattro, 2019 to 2020
45 TFSIVW EA888, 1,984 cc, DMTApetrol195 kW (265 PS)quattro, 2020 to 2024
S5 TFSIVW EA839, 2,995 cc, CWGDpetrol260 kW (354 PS)AWD, 2019 to 2020
S5 TFSIVW EA839, 2,995 cc, CWGDpetrol260 kW (354 PS)AWD, 2020 to 2024
RS5VW EA839, 2,894 cc, DECApetrol331 kW (450 PS)AWD, 2019 to 2020
RS5VW EA839, 2,894 cc, DECApetrol331 kW (450 PS)AWD, 2021 to 2024
RS5 Performance EditionVW EA839, 2,894 cc, DECCpetrol346 kW (470 PS)AWD, 2024
35 TDIVW EA288 evo, 1,968 cc, DEUAdiesel110 kW (150 PS)FWD, 2018 to 2019
35 TDIVW EA288 evo, 1,968 cc, DEZEdiesel120 kW (163 PS)FWD or quattro, 2019 to 2020
35 TDIVW EA288 evo, 1,968 cc, DTNAdiesel120 kW (163 PS)FWD, 2020 to 2024
40 TDIVW EA288 evo, 1,968 cc, DETAdiesel140 kW (190 PS)FWD or quattro, 2018 to 2020
40 TDIVW EA288 evo, 1,968 cc, DTPAdiesel150 kW (204 PS)quattro, 2020 to 2024
45 TDIVW EA897evo2, 2,967 cc, DCPEdiesel170 kW (231 PS)quattro, 2019 to 2020
50 TDIVW EA897evo2, 2,967 cc, DCPCdiesel210 kW (286 PS)quattro, 2019 to 2020
50 TDIVW EA897evo3, 2,967 cc, DMGAdiesel210 kW (286 PS)quattro, 2020 to 2023
S5 TDIVW EA897evo2, 2,967 cc, DEWBdiesel255 kW (347 PS)quattro, 2019 to 2020
S5 TDIVW EA897evo3, 2,967 cc, DMKCdiesel251 kW (341 PS)quattro, 2020 to 2023

Source: Audi A5 F5, de.wikipedia.org.

Performance

VariantPower0 to 62 mph (0 to 100 km/h)Top speed
1.4 TFSI110 kW (150 PS)8.7 s216 km/h (134 mph)
2.0 g-tron125 kW (170 PS)8.4 to 8.5 s224 to 226 km/h (139 to 140 mph)
2.0 TFSI ultra140 kW (190 PS)7.2 to 7.3 s240 km/h (149 mph)
2.0 TFSI185 kW (252 PS)5.8 to 6.3 s250 km/h (155 mph)
S5260 kW (354 PS)4.7 s250 km/h (155 mph)
RS5331 kW (450 PS)3.9 s250 km/h (155 mph)
2.0 TDI110 kW (150 PS)8.7 to 8.9 s217 to 221 km/h (135 to 137 mph)
2.0 TDI ultra140 kW (190 PS)7.7 s210 km/h (130 mph)
2.0 TDI140 kW (190 PS)7.2 to 7.7 s235 to 240 km/h (146 to 149 mph)
3.0 TDI160 kW (218 PS)6.4 to 6.6 s250 km/h (155 mph)
3.0 TDI200 kW (272 PS)5.2 s250 km/h (155 mph)
3.0 TDI210 kW (286 PS)5.2 s250 km/h (155 mph)
35 TFSI110 kW (150 PS)8.9 s225 km/h (140 mph)
35 TFSI110 kW (150 PS)8.9 to 9.1 s210 km/h (130 mph)
40 TFSI140 kW (190 PS)7.2 to 7.3 s241 km/h (150 mph)
40 TFSI150 kW (204 PS)6.7 to 7.2 s210 km/h (130 mph)
40 g-tron125 kW (170 PS)8.4 s210 km/h (130 mph)
40 g-tron125 kW (170 PS)8.4 s224 km/h (139 mph)
45 TFSI180 kW (245 PS)5.8 to 6.4 s250 km/h (155 mph)
45 TFSI195 kW (265 PS)5.5 to 6 s250 km/h (155 mph)
S5 TFSI260 kW (354 PS)4.7 to 5.1 s250 km/h (155 mph)
S5 TFSI260 kW (354 PS)4.9 s250 km/h (155 mph)
RS5331 kW (450 PS)3.9 s250 km/h (155 mph)
RS5331 kW (450 PS)3.9 s250 km/h (155 mph)
RS5 Performance Edition346 kW (470 PS)3.7 s300 km/h (186 mph)
35 TDI110 kW (150 PS)8.9 s219 km/h (136 mph)
35 TDI120 kW (163 PS)8.2 to 8.4 s226 to 228 km/h (140 to 142 mph)
35 TDI120 kW (163 PS)8.2 to 9 s210 to 222 km/h (130 to 138 mph)
40 TDI140 kW (190 PS)7.4 to 7.7 s235 to 241 km/h (146 to 150 mph)
40 TDI150 kW (204 PS)6.7 to 7.6 s210 km/h (130 mph)
45 TDI170 kW (231 PS)6 to 6.1 s250 km/h (155 mph)
50 TDI210 kW (286 PS)5.2 to 5.7 s250 km/h (155 mph)
50 TDI210 kW (286 PS)5.2 to 5.3 s250 km/h (155 mph)
S5 TDI255 kW (347 PS)4.8 to 4.9 s250 km/h (155 mph)
S5 TDI251 kW (341 PS)4.6 s250 km/h (155 mph)

Source: Audi A5 F5, de.wikipedia.org.

UK popularity & demand

~2,560 Audi RS5 licensed on UK roads — top 23% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 2,560 Audi RS5 on UK roads, placing it in the top 23% of car models by volume across our fitment database.

A parc that size is why Audi RS5 wheel fitment is worth getting exactly right: a lot of owners are shopping for these numbers.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Dimensions

Length4,673 to 4,783 mm
Width1,843 to 1,866 mm
Height1,360 to 1,387 mm
Wheelbase2,764 to 2,825 mm
Kerb weight1,775 to 1,810 kg

Source: Audi A5 F5, de.wikipedia.org; EU type-approval data (EEA).

Body styles & production

Body styles2-door coupé, 2-door convertible, 4-door liftback sedan
Produced2020–2026

Factory colours

Navarra Blue MetallicGletscherweiss PearlMythosschwarz MetallicDaytona Gray PearlFlorettsilber MetallicAscariblau MetallicManhattengrau MetallicPantherschwarz PearlSuzukagrau MetallicDistriktgruen MetallicTurbo BlueMisano Red PearlSebringschwarz Kristall MetallicNardo GrayIbis WhiteSonoma Green MetallicTango Red MetallicCataluyna Red Metallic

Trim levels

PremiumPremium PlusPrestige
