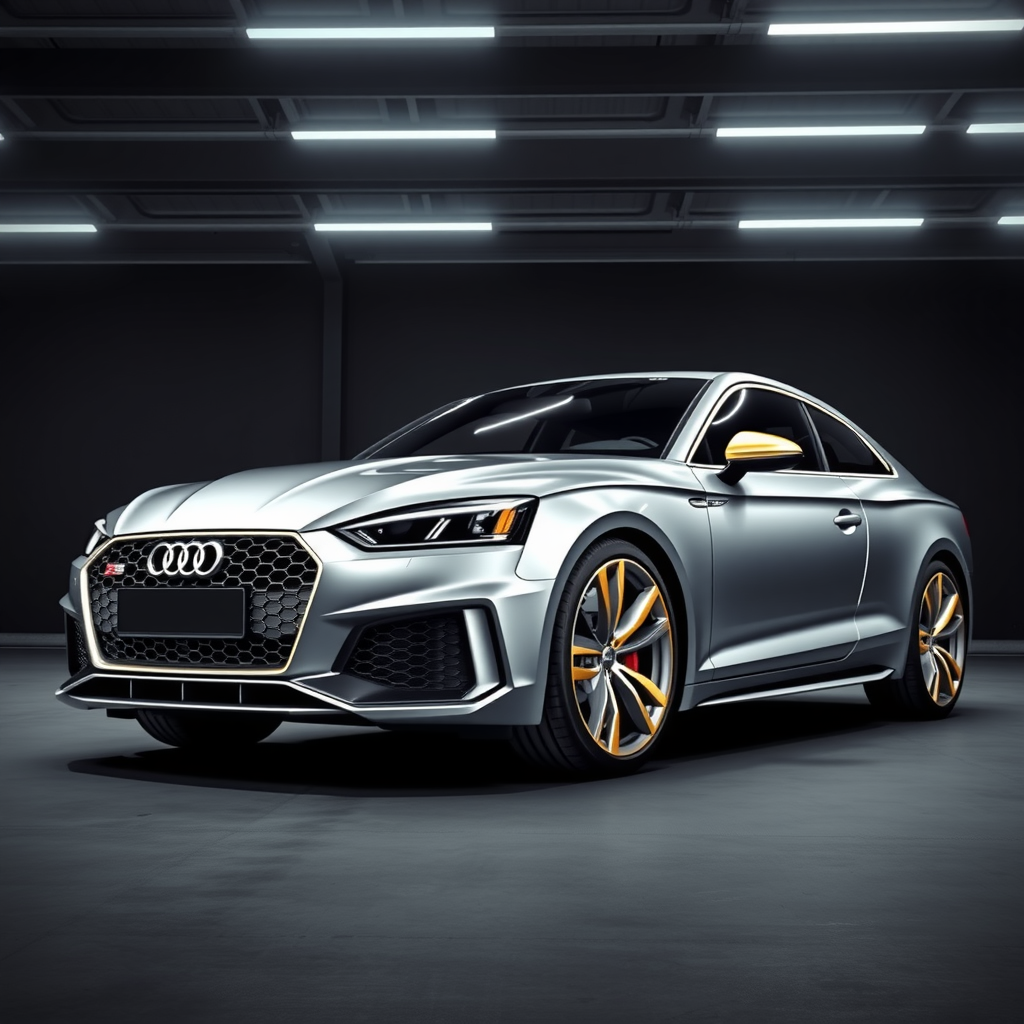

Audi S5 wheel fitment — 8T/8F
Audi S5 wheel fitment
Start with the hub. The Audi S5 8T/8F spec table gives the bolt pattern and bore; the second table is the aftermarket window for Audi S5 wheel fitment.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14x1.5 (bolts) |
| Wheel-bolt torque | 120 Nm |
| Seat type | radius |
| Factory setup | square |
| TPMS | indirect |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8.5J–9.5J | ET24–ET38 |
Width and offset move together: roughly 8 to 10 ET more for every extra 1J keeps the wheel inside the arch. Final offset and any spacer come from the fit-check.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 11,311 Audi S5 on UK roads, placing it in the top 14% of car models by volume across our fitment database.
That makes Audi S5 wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 4,625 to 4,718 mm |
| Width | 1,854 to 1,860 mm |
| Height | 1,366 to 1,391 mm |
| Wheelbase | 2,751 to 2,810 mm |
| Kerb weight | 1,470 to 1,995 kg |
Source: Audi A5 8T, de.wikipedia.org.
Body styles & production
| Body styles | Coupé, Cabriolet, Kombilimousine |
| Produced | 2007–2012 |
