Audi S5 wheel fitment — B10
Overview

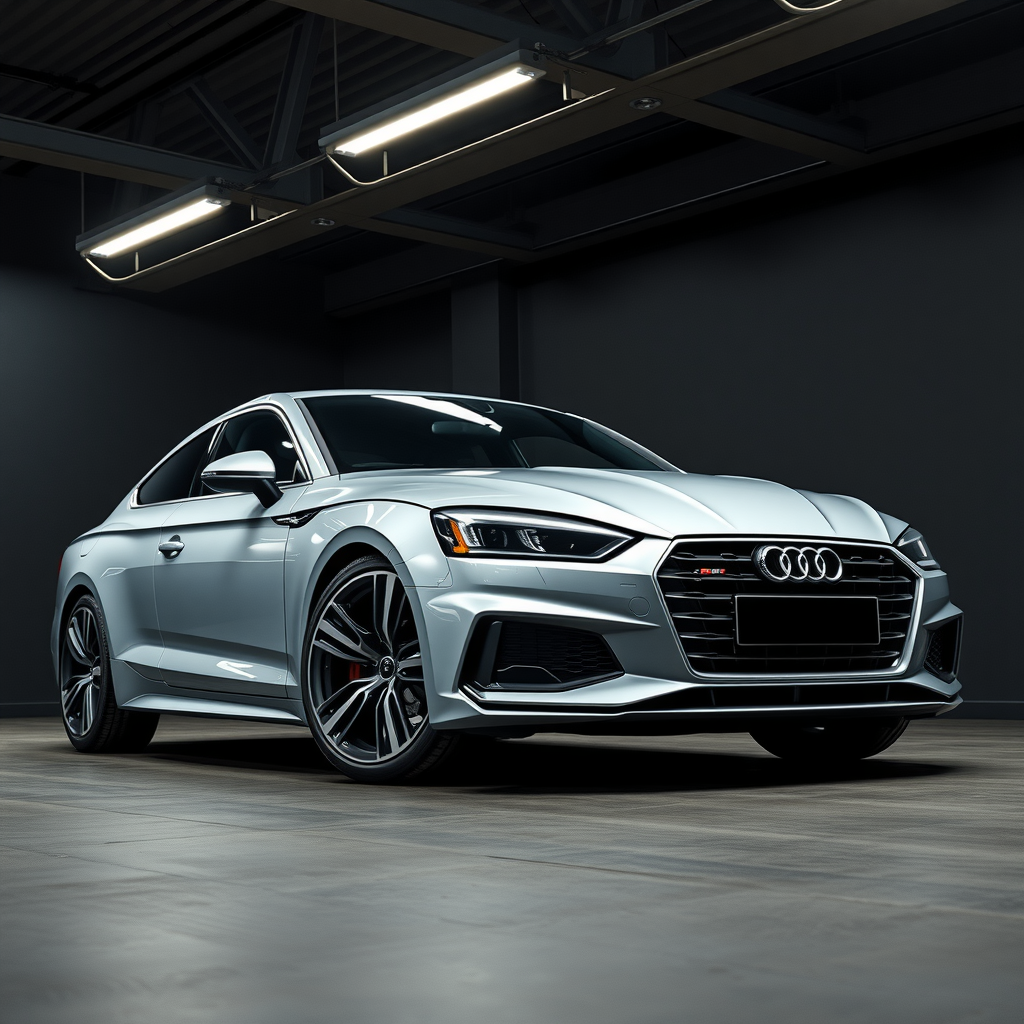

The Audi S5 B10 is based on the Audi A5 B10 platform, continuing the tradition of high-performance variants of the A5 series. It offers a coupé, cabriolet, and five-door fastback sedan body styles, maintaining Audi's quattro all-wheel drive system with a Torsen-based center differential. The S5 B10 represents an evolution in design and technology from its predecessor, integrating advanced features and performance enhancements.
History & notable variants
The introduction of the S5 B10 marks a significant shift as it is built on the Premium Platform Combustion (PPC) platform, replacing the previous MLB/MLP architecture. Notable for its sleeker body lines, improved aerodynamics, and enhanced interior technology, including an updated MMI system and optional Virtual Cockpit.
Audi S5 wheel fitment
Everything below is what the fit-check uses for Audi S5 wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the Audi S5 B10.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 57.1 mm |
| Bolt / thread | M14x1.5 (bolts) |
| Wheel-bolt torque | 120 Nm |
| Seat type | radius |
| Factory setup | square |
| TPMS | indirect |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8.5J–9.5J | ET18–ET38 |
As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 11,311 Audi S5 on UK roads, placing it in the top 14% of car models by volume across our fitment database.
With that many on the road, Audi S5 wheel fitment is a spec fitters see constantly. We keep it current for that reason.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 4,829 to 4,896 mm |
| Width | 1,860 to 1,952 mm |
| Height | 1,428 to 1,460 mm |
| Wheelbase | 2,892 to 2,903 mm |
| Kerb weight | 1,770 to 2,445 kg |
Source: Audi A5 B10, de.wikipedia.org.
Body styles & production
| Body styles | Kombilimousine, Kombi |
| Produced | 2024–2026 |
Factory colours
Trim levels
Reliability & owner notes
- Pros: Advanced technology, powerful engine, sleek design
- Cons: High price point, limited availability of certain features in some markets
