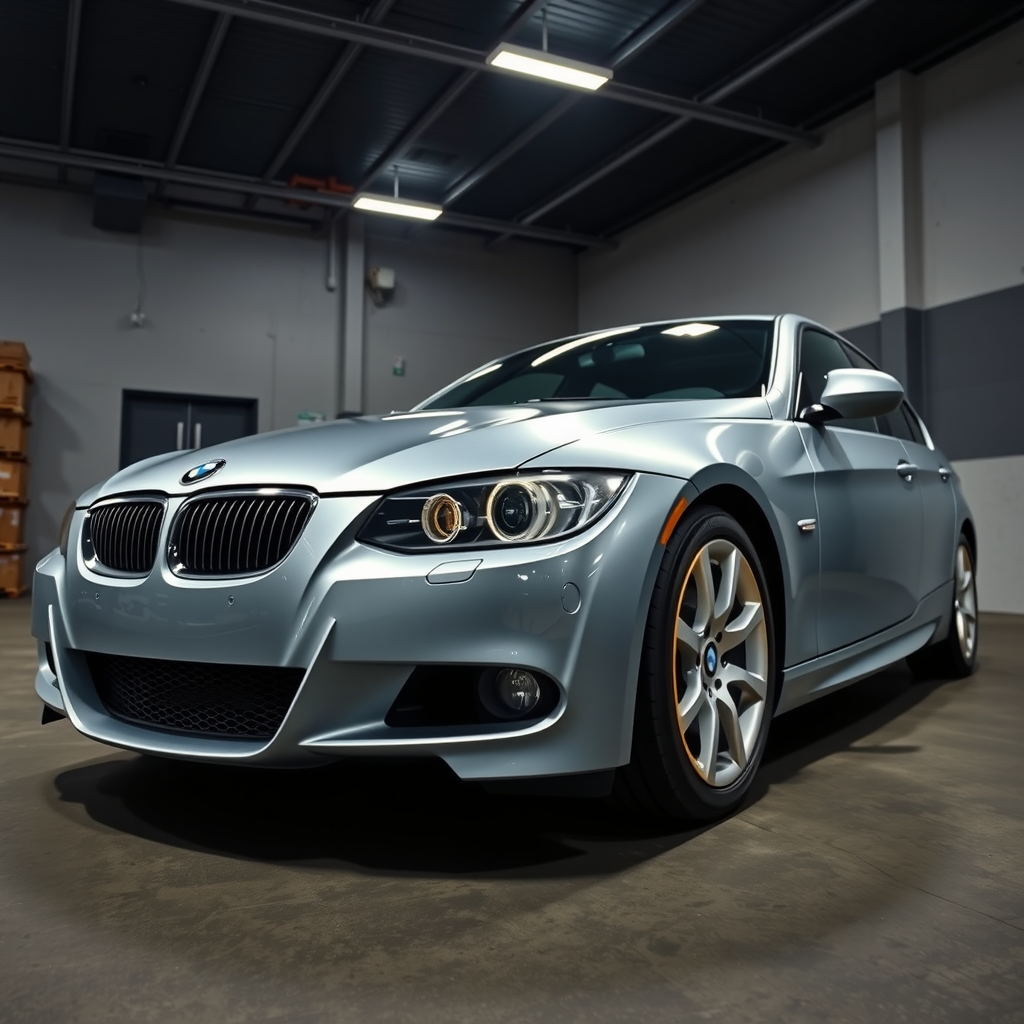

BMW 3 Series wheel fitment — LCII E90/E91/E92/E93
BMW 3 Series wheel fitment
BMW 3 Series wheel fitment for the BMW 3 Series LCII E90/E91/E92/E93) (2004–2012): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.
| Bolt pattern (PCD) | 5x120 |
| Centre bore | 72.6 mm |
| Bolt / thread | M12 x 1.5 (bolts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | direct |
| Run-flat | Yes |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 6.5J–8.5J | ET24–ET45 |
| Rear (staggered) | 8J–9.5J | ET33–ET45 |
Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 467,458 BMW 3 Series on UK roads, placing it in the top 1% of car models by volume across our fitment database.
With that many on the road, BMW 3 Series wheel fitment is a spec fitters see constantly. We keep it current for that reason.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Overview
The fifth generation of the BMW 3 Series (E90/E91/E92/E93) was manufactured from 2004 to 2012 and marked a significant evolution with modernized styling and improved technology. Produced in Germany, this generation featured sedan, Touring (estate), coupé, and cabriolet body styles. It introduced the first turbocharged gasoline engine for the 3 Series and run-flat tires as standard equipment.
Dimensions
| Length | 4,520 to 4,580 mm |
| Width | 1,782 to 1,817 mm |
| Height | 1,395 to 1,421 mm |
| Wheelbase | 2,760 mm |
| Kerb weight | 1,425 to 1,825 kg |
Source: BMW E90, de.wikipedia.org.
Body styles & production
| Body styles | 4-door sedan/saloon (E90), 5-door wagon/estate (E91), 2-door coupé (E92), 2-door convertible (E93) |
| Produced | 2004–2012 |
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 316i | 1,599 cc, N45B16 | petrol | 90 kW (122 PS) | 2007 to 2011 |
| 318i | 1,995 cc, N46B20 | petrol | 95 kW (129 PS) | 2005 to 2007 |
| 318i | 1,995 cc, N43B20 (N46NB20) | petrol | 105 kW (143 PS) | 2007 to 2012 |
| 320i | 1,995 cc, N46B20 | petrol | 110 kW (150 PS) | 2005 to 2007 |
| 320i | 1,995 cc, N43B20 (N46NB20) | petrol | 125 kW (170 PS) | 2007 to 2012 |
| 320si | 1,997 cc, N45B20S | petrol | 127 kW (173 PS) | 2006 to 2007 |
| 323i | 2,497 cc, N52B25 | petrol | 130 kW (177 PS) | 2005 to 2007 |
| 323i | 2,497 cc, N52B25 | petrol | 149 kW (203 PS) | 2007 to 2010 |
| 325i | 2,497 cc, N52B25 | petrol | 160 kW (218 PS) | 2005 to 2007 |
| 325xi | 2,497 cc, N52B25 | petrol | 160 kW (218 PS) | 2005 to 2007 |
| 325i | 2,996 cc, N53B30 | petrol | 160 kW (218 PS) | 2007 to 2012 |
| 325i xDrive | 2,996 cc, N53B30 | petrol | 160 kW (218 PS) | xDrive, 2007 to 2012 |
| 328i | 2,996 cc, N52B30 | petrol | 172 kW (233 PS) | 2007 to 2011 |
| 330i | 2,996 cc, N52B30 | petrol | 190 kW (258 PS) | 2005 to 2007 |
| 330xi | 2,996 cc, N52B30 | petrol | 190 kW (258 PS) | 2005 to 2007 |
| 330i | 2,996 cc, N53B30 | petrol | 200 kW (272 PS) | 2007 to 2012 |
| 330i xDrive | 2,996 cc, N53B30 | petrol | 200 kW (272 PS) | xDrive, 2007 to 2012 |
| 335i | 2,979 cc, N54B30 | petrol | 225 kW (306 PS) | 2006 to 2010 |
| 335i xDrive | 2,979 cc, N54B30 | petrol | 225 kW (306 PS) | xDrive, 2006 to 2010 |
| 335i | 2,979 cc, N55B30 | petrol | 225 kW (306 PS) | 2010 to 2012 |
| 335i xDrive | 2,979 cc, N55B30 | petrol | 225 kW (306 PS) | xDrive, 2010 to 2012 |
| M3 | 3,999 cc, S65B40 | petrol | 309 kW (420 PS) | 2008 to 2013 |
| 316d | 1,995 cc, N47D20 | diesel | 85 kW (116 PS) | 2009 to 2011 |
| 318d | 1,995 cc, M47D20TÜ2 | diesel | 90 kW (122 PS) | 2005 to 2007 |
| 318d | 1,995 cc, N47D20 | diesel | 105 kW (143 PS) | 2007 to 2009 |
| 318d | 1,995 cc, N47D20 | diesel | 105 kW (143 PS) | 2009 to 2010 |
| 318d | 1,995 cc, N47D20 | diesel | 105 kW (143 PS) | 2010 to 2012 |
| 320d Edition Fleet | 1,995 cc, M47D20TÜ2 | diesel | 110 kW (150 PS) | 2005 to 2007 |
| 320d | 1,995 cc, M47D20TÜ2 | diesel | 120 kW (163 PS) | 2005 to 2007 |
| 320d Edition Fleet | 1,995 cc, N47D20 | diesel | 120 kW (163 PS) | 2007 to 2010 |
| 320d Edition Fleet | 1,995 cc, N47D20 | diesel | 120 kW (163 PS) | 2010 to 2012 |
| 320d "Efficient-Dynamics" Edition | 1,995 cc, N47D20 | diesel | 120 kW (163 PS) | 2010 to 2011 |
| 320d | 1,995 cc, N47D20 | diesel | 130 kW (177 PS) | 2007 to 2010 |
| 320d xDrive | 1,995 cc, N47D20 | diesel | 130 kW (177 PS) | xDrive, 2008 to 2010 |
| 320d | 1,995 cc, N47D20 | diesel | 135 kW (184 PS) | 2010 |
| 320d xDrive | 1,995 cc, N47D20 | diesel | 135 kW (184 PS) | xDrive, 2010 to 2012 |
| 325d | 2,993 cc, M57D30TÜ2 | diesel | 145 kW (197 PS) | 2006 to 2010 |
| 325d | 2,993 cc, N57D30 | diesel | 150 kW (204 PS) | 2010 to 2013 |
| 330d | 2,993 cc, M57D30TÜ2 | diesel | 170 kW (231 PS) | 2005 to 2008 |
| 330xd | 2,993 cc, M57D30TÜ2 | diesel | 170 kW (231 PS) | 2005 to 2008 |
Source: BMW E90, de.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| 316i | 90 kW (122 PS) | 10.8 s | |
| 318i | 95 kW (129 PS) | 10 s | |
| 318i | 105 kW (143 PS) | 9.1 s | |
| 320i | 110 kW (150 PS) | 8.8 s | |
| 320i | 125 kW (170 PS) | 8.2 s | |
| 320si | 127 kW (173 PS) | 8.1 s | |
| 323i | 130 kW (177 PS) | 8 s | |
| 323i | 149 kW (203 PS) | 7.4 s | |
| 325i | 160 kW (218 PS) | 7 s | |
| 325xi | 160 kW (218 PS) | 7.5 s | |
| 325i | 160 kW (218 PS) | 6.7 s | |
| 325i xDrive | 160 kW (218 PS) | 7.3 s | |
| 328i | 172 kW (233 PS) | 6.7 s | |
| 330i | 190 kW (258 PS) | 6.3 s | |
| 330xi | 190 kW (258 PS) | 6.4 s | |
| 330i | 200 kW (272 PS) | 6.1 s | |
| 330i xDrive | 200 kW (272 PS) | 6.2 s | |
| 335i | 225 kW (306 PS) | 5.6 s | |
| 335i xDrive | 225 kW (306 PS) | 5.5 s | |
| 335i | 225 kW (306 PS) | 5.6 s | |
| 335i xDrive | 225 kW (306 PS) | 5.4 s | |
| M3 | 309 kW (420 PS) | 4.9 s | |
| 316d | 85 kW (116 PS) | 10.9 s | |
| 318d | 90 kW (122 PS) | 10.6 s | |
| 318d | 105 kW (143 PS) | 9.3 s | |
| 318d | 105 kW (143 PS) | 9.3 s | |
| 318d | 105 kW (143 PS) | 9.1 s | |
| 320d Edition Fleet | 110 kW (150 PS) | 8.7 s | |
| 320d | 120 kW (163 PS) | 8.3 s | |
| 320d Edition Fleet | 120 kW (163 PS) | 8.2 s | |
| 320d Edition Fleet | 120 kW (163 PS) | 8 s | |
| 320d "Efficient-Dynamics" Edition | 120 kW (163 PS) | 8 s | |
| 320d | 130 kW (177 PS) | 7.9 s | |
| 320d xDrive | 130 kW (177 PS) | 8.2 s | |
| 320d | 135 kW (184 PS) | 7.5 s | |
| 320d xDrive | 135 kW (184 PS) | 7.9 s | |
| 325d | 145 kW (197 PS) | 7.4 s | |
| 325d | 150 kW (204 PS) | 7 s | |
| 330d | 170 kW (231 PS) | 6.7 s | |
| 330xd | 170 kW (231 PS) | 6.6 s |
Source: BMW E90, de.wikipedia.org.
Trim levels
Factory colours
History & notable variants
The E90/E91/E92/E93 series underwent a mid-cycle refresh in 2008 known as the Long-Term Evolution (LCI). Notable performance variants included the M3, powered by a V8 engine. The generation received positive reception and numerous awards for its blend of luxury and sportiness.
Reliability & owner notes
- Pros: Advanced technology features, turbocharged engine options, improved aerodynamics
- Cons: Some models criticized for being too soft compared to previous generations
