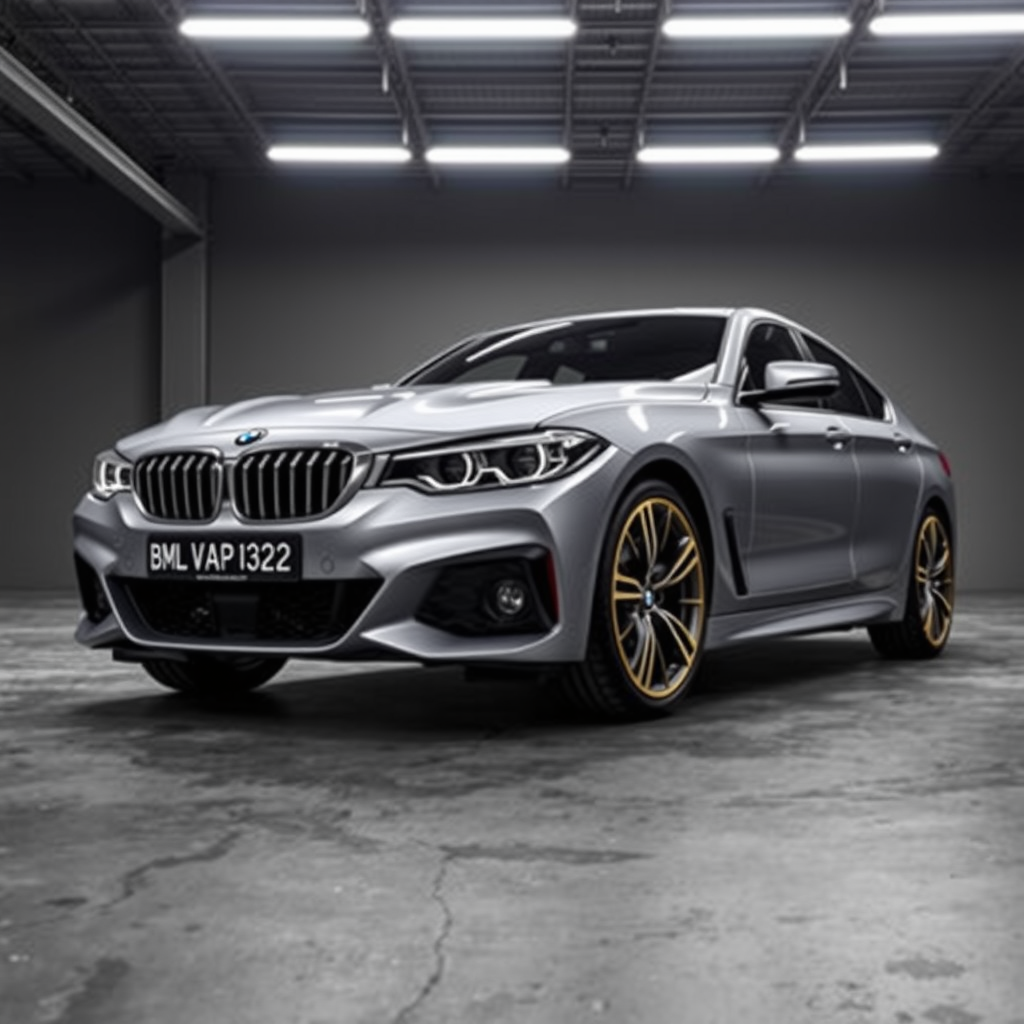

BMW 4 Series Gran Coupe F36 side profile — BMW 4 Series Gran Coupe wheel fitment

BMW 4 Series Gran Coupe wheel fitment — F36

By Torque, AIWheelTech vehicle & fitment specialist · 2014–2017
BMW 4 Series Gran Coupe wheel fitment at a glance — The BMW 4 Series Gran Coupe F36 (2014–2017) uses a 5x120 bolt pattern, 72.6 mm centre bore, M14 x 1.25 bolts torqued to ~140 Nm. It accepts ~7J–8J wheels at ET18–ET27 front; staggered setups run 8J–9.5J rear (ET29–ET45).

Overview

The first generation of the BMW 4 Series Gran Coupe (F36) was produced from 2014 to 2020. It is a compact executive car, part of BMW's D-segment lineup, and shares many features with its predecessor, the E92/E93 coupé/convertible models of the fifth-generation 3 Series range. The F36 model code represents the five-door liftback variant marketed as 'Gran Coupé'. This generation was powered by turbocharged petrol and diesel engines in inline-3, inline-4, and inline-6 configurations.

BMW 4 Series Gran Coupe wheel fitment

BMW 4 Series Gran Coupe wheel fitment for the BMW 4 Series Gran Coupe F36 (2014–2017): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x120
Centre bore72.6 mm
Bolt / threadM14 x 1.25 (bolts)
Wheel-bolt torque140 Nm
Seat typetapered
Factory setupstaggered
TPMSdirect
Run-flatYes

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front7J–8JET18–ET27
Rear (staggered)8J–9.5JET29–ET45

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a BMW 4 Series Gran Coupe →Get them fitted (UK)

UK popularity & demand

~113,829 BMW 4 Series Gran Coupe range licensed on UK roads — top 3% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 113,829 BMW 4 Series Gran Coupe range on UK roads, placing it in the top 3% of car models by volume across our fitment database.

That makes BMW 4 Series Gran Coupe wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
M440i xDrive3.0L B58 turbo petrolpetrol374 hpxDrive
330d xDrive3.0L B57 turbo dieseldiesel265 hpxDrive
330i2.0L B48 turbo petrolpetrol258 hpRWD
328i2.0L B48 turbo petrolpetrol252 hpRWD
320i2.0L B48 turbo petrolpetrol190 hpRWD
328d xDrive2.0L B47 turbo dieseldiesel190 hpxDrive
320d2.0L B47 turbo dieseldiesel150 hpRWD
320d xDrive2.0L B47 turbo dieseldiesel150 hpxDrive
318i1.5L B38 turbo petrolpetrol140 hpRWD

Performance

VariantPower0–62 mphTop speed
318i140 hp7.9 s137 mph
320d150 hp8 s139 mph
320i190 hp7.2 s150 mph
320d xDrive150 hp8.1 s139 mph
328i252 hp5.7 s155 mph
328d xDrive190 hp6.4 s150 mph
330i258 hp5.6 s155 mph
330d xDrive265 hp5.4 s155 mph
M440i xDrive374 hp4.5 s155 mph

Body styles & production

Body stylesGran Coupé
Produced2014–2017

Trim levels

M SportLuxury Line

Factory colours

Alpinweiss IIICarbonschwarz MetallicBlacksapphire MetallicKalaharibeige MetallicMelbourne Red MetallicImperialblau MetallicMineralweiss Metallics37 mondstein/ beige met.u21 brilliantweiss met.Glacier Silber MetallicMidnight Blue II MetallicEstorilblau Ii MetallicCitrinschwarz MetallicMineralgrau MetallicSparkling Brown MetallicJatoba (Dark Grey) MetallicTansanitblau MetallicPyritbraun Metallicpyritbraun met.Alpine White III

History & notable variants

The first generation BMW 4 Series Gran Coupe (F36) succeeded the E92/E93 coupé/convertible models of the fifth-generation 3 Series range. It was introduced alongside the F30 3 Series and shares many features with it, including engine options. The high-performance variant, the M4 (F82/F83), was also introduced in early 2014.
