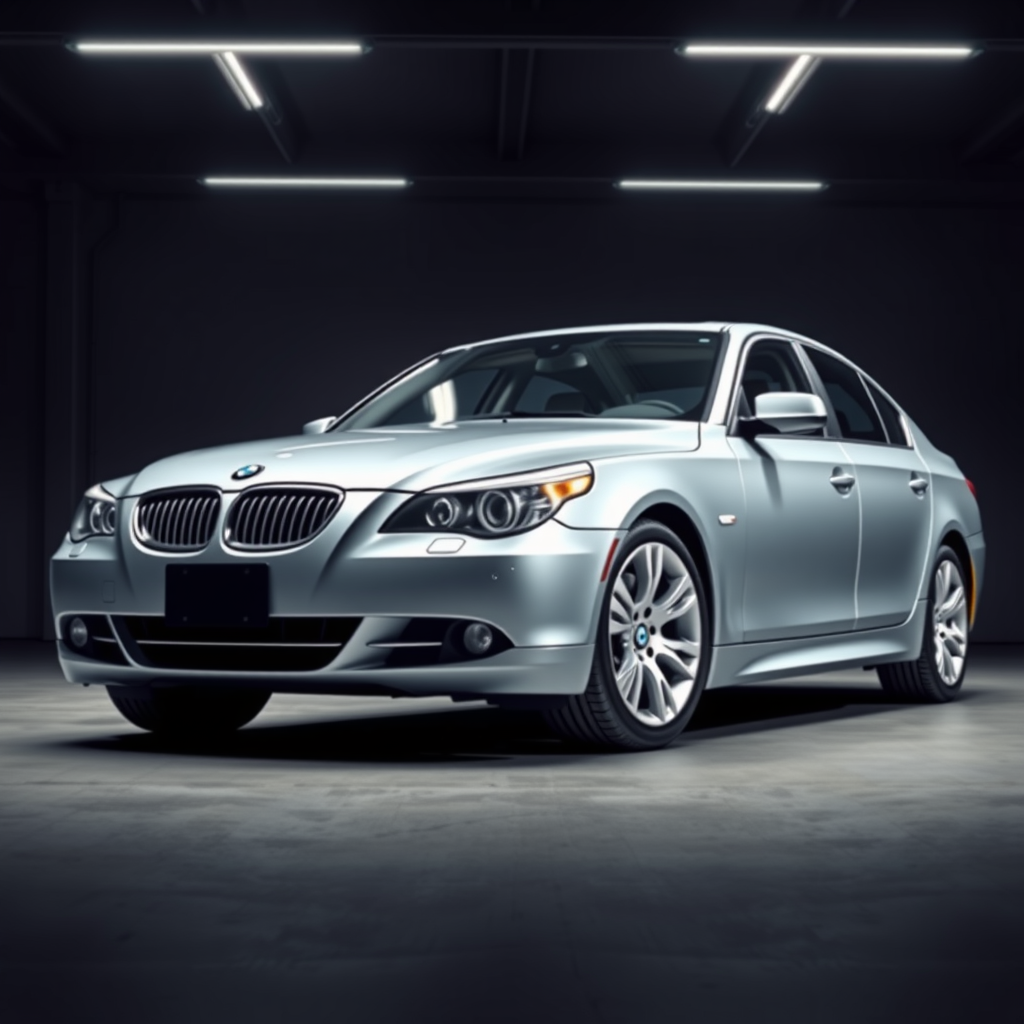

BMW 5 Series wheel fitment — V E60/E61
Overview
The fifth generation of the BMW 5 Series executive cars consists of the E60 (saloon version) and E61 (Touring wagon version). Produced from July 5, 2003 to 2010 by BMW in Dingolfing, Germany, and various international plants. This generation introduced new electronic features like iDrive infotainment system, head-up display, active cruise control, adaptive headlights, night vision, lane departure warning, and voice control. It was the first 5 Series with a turbocharged petrol engine, 6-speed automatic transmission, and regenerative braking.
BMW 5 Series wheel fitment
Start with the hub. The BMW 5 Series V (E60/E61) spec table gives the bolt pattern and bore; the second table is the aftermarket window for BMW 5 Series wheel fitment.
| Bolt pattern (PCD) | 5x120 |
| Centre bore | 72.6 mm |
| Bolt / thread | M12 x 1.5 (bolts) |
| Wheel-bolt torque | 120 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | direct |
| Run-flat | Yes |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 7J–8.5J | ET6–ET26 |
| Rear (staggered) | 9J–10J | ET25–ET35 |
Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 196,854 BMW 5 Series on UK roads, placing it in the top 2% of car models by volume across our fitment database.
With that many on the road, BMW 5 Series wheel fitment is a spec fitters see constantly. We keep it current for that reason.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 520i | 2171 cc, M54B22 straight-6 | petrol | 125 kW (170 PS) | 2003 to 2005 |
| 520i | 1995 cc, N46B20 straight-4 | petrol | 115 kW (156 PS) | 2007 to 2010 |
| 520i | 1995 cc, N43B20 straight-4 | petrol | 125 kW (170 PS) | 2007 to 2010 |
| 523i | 2497 cc, N52B25 straight-6 | petrol | 130 kW (177 PS) | 2005 to 2007 |
| 523i | 2497 cc, N53B25 straight-6 | petrol | 140 kW (190 PS) | 2007 to 2010 |
| 525i | 2494 cc, M54B25 straight-6 | petrol | 141 kW (192 PS) | 2003 to 2005 |
| 525i | 2497 cc, N52B25 straight-6 | petrol | 160 kW (218 PS) | 2005 to 2007 |
| 525i | 2996 cc, N53B30 straight-6 | petrol | 160 kW (218 PS) | 2007 to 2010 |
| 528i | 2996 cc, N52B30 straight-6 | petrol | 172 kW (234 PS) | 2007 to 2010 |
| 530i | 2979 cc, M54B30 straight-6 | petrol | 170 kW (231 PS) | 2003 to 2005 |
| 530i | 2996 cc, N52B30 straight-6 | petrol | 190 kW (258 PS) | 2005 to 2007 |
| 530i | 2996 cc, N53B30 straight-6 | petrol | 200 kW (272 PS) | 2007 to 2010 |
| 535i | 2979 cc, N54B30 turbo straight-6 | petrol | 225 kW (306 PS) | 2007 to 2010 |
| 540i | 4000 cc, N62B40 V8 | petrol | 225 kW (306 PS) | 2005 to 2010 |
| 545i | 4398 cc, N62B44 V8 | petrol | 245 kW (333 PS) | 2003 to 2005 |
| 550i | 4799 cc, N62B48 V8 | petrol | 270 kW (367 PS) | 2005 to 2010 |
| M5 | 4999 cc, S85B50 V10 | petrol | 373 kW (507 PS) | 2005 to 2010 |
| 520d | 1995 cc, M47TÜ2D20 straight-4 | diesel | 120 kW (163 PS) | 2005 to 2007 |
| 520d | 1995 cc, N47D20 straight-4 | diesel | 130 kW (177 PS) | 2007 to 2010 |
| 525d | 2497 cc, M57D25TÜ straight-6 | diesel | 130 kW (177 PS) | 2004 to 2007 |
| 525d | 2993 cc, M57D30TÜ2 straight-6 | diesel | 145 kW (197 PS) | 2007 to 2010 |
| 530d | 2993 cc, M57D30TÜ straight-6 | diesel | 160 kW (218 PS) | 2003 to 2005 |
| 530d | 2993 cc, M57D30TÜ2 straight-6 | diesel | 170 kW (231 PS) | 2005 to 2007 |
| 530d | 2993 cc, M57D30TÜ2 straight-6 | diesel | 173 kW (235 PS) | 2007 to 2010 |
| 535d | 2993 cc, M57D30TÜ TOP straight-6 | diesel | 200 kW (272 PS) | 2004 to 2007 |
| 535d | 2993 cc, M57D30TÜ2 TOP straight-6 | diesel | 210 kW (286 PS) | 2007 to 2010 |
Source: BMW 5 Series (E60), en.wikipedia.org.
Dimensions
| Length | 4,843 to 4,983 mm |
| Width | 1,850 mm |
| Height | 1,470 to 1,491 mm |
| Wheelbase | 2,890 to 3,030 mm |
| Kerb weight | 1,545 to 1,830 kg |
Source: BMW 5 Series (E60), en.wikipedia.org.
Body styles & production
| Body styles | 4-door saloon (E60), 5-door estate (E61) |
| Produced | 2003–2007 |
Trim levels
Factory colours
History & notable variants
Development began in 1997, concluding in 2002, led by Boyke Boyer and designed under Chris Bangle. The saloon was launched on July 5, 2003, followed by the Touring models late in 2004. Notable for its M5 variant introduced in 2005 with a V10 engine and advanced transmission options.
Reliability & owner notes
- Pros: Advanced electronic features, turbocharged engines, improved aerodynamics
- Cons: Controversial design aesthetics, initial safety concerns
- Common issues: Electrical gremlins, infotainment system quirks
