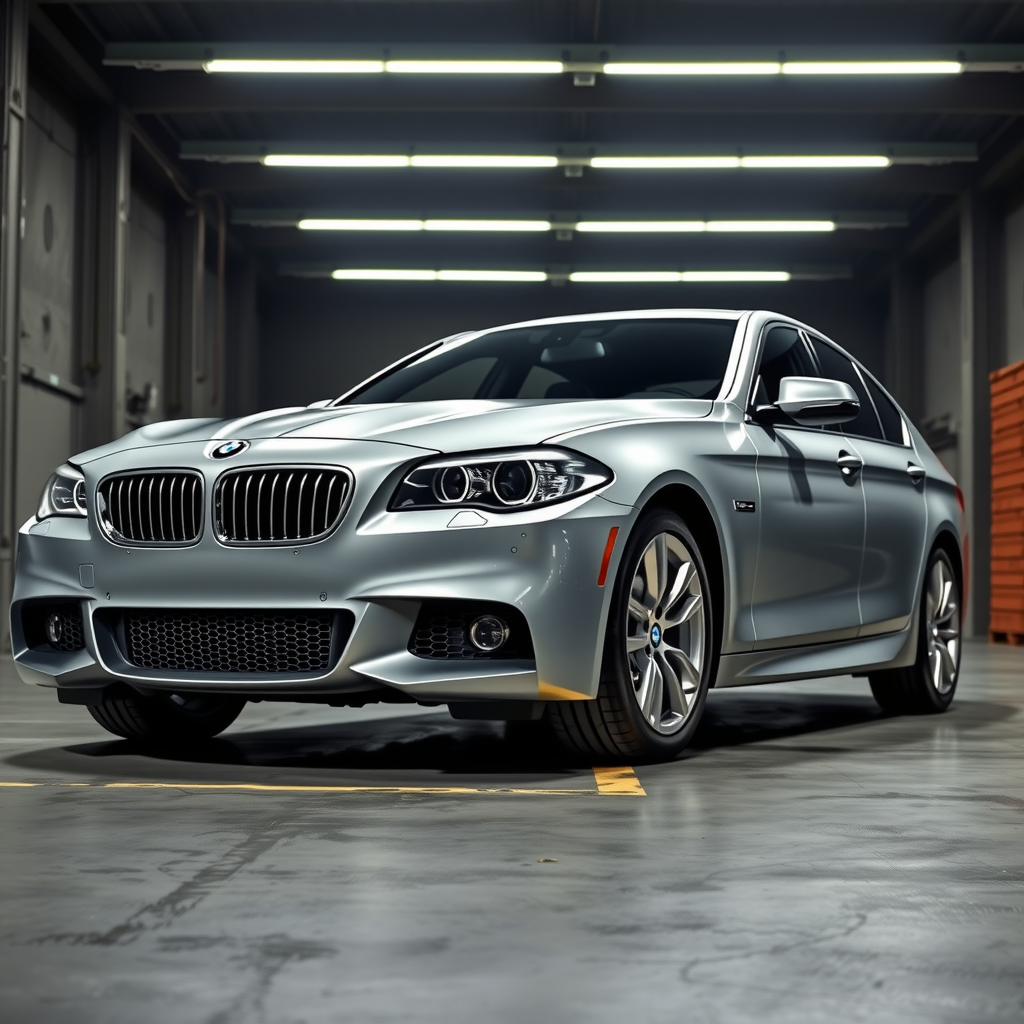

BMW 5 Series VI (F10/F11) side profile — BMW 5 Series wheel fitment

BMW 5 Series wheel fitment — VI F10/F11

By Torque, AIWheelTech vehicle & fitment specialist · 2009–2013
The BMW 5 Series VI (F10/F11) (2009–2013) uses a 5x120 bolt pattern, 72.6 mm centre bore, M14 x 1.25 bolts torqued to ~140 Nm. It accepts ~7.5J–9J wheels at ET19–ET49 front; staggered setups run 9J–10.5J rear (ET20–ET45). That is the short version of BMW 5 Series wheel fitment; the full picture is below.

Overview

The sixth generation BMW 5 Series includes models F10 (sedan), F18 (long-wheelbase sedan), F11 (Touring wagon), and F07 (Gran Turismo fastback). Produced from January 2010 to December 2017, it was launched in March 2010 for the domestic market. The generation shares a platform with the BMW 7 Series and 6 Series, featuring advanced technologies like turbocharged engines, an 8-speed automatic transmission, and active rear-wheel steering.

History & notable variants

Notable changes include the introduction of hybrid models (ActiveHybrid 5) and plug-in hybrids (530Le). The F10 generation also saw the launch of the M5 with a powerful V8 engine. In 2014, a facelift was introduced to enhance features like the Head-Up Display and ConnectedDrive system.

BMW 5 Series wheel fitment

Everything below is what the fit-check uses for BMW 5 Series wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the BMW 5 Series VI (F10/F11).

Bolt pattern (PCD)5x120
Centre bore72.6 mm
Bolt / threadM14 x 1.25 (bolts)
Wheel-bolt torque140 Nm
Seat typetapered
Factory setupstaggered
TPMSdirect
Run-flatYes

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front7.5J–9JET19–ET49
Rear (staggered)9J–10.5JET20–ET45

Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.

Browse wheels that fit a BMW 5 Series →Get them fitted (UK)

Engines & drivetrain

VariantEngineFuelPowerDrive, years
520iN20B20, turbo I4petrol135 kW (184 PS)2011 to 2016
523iN52B25, N.A. I6petrol150 kW (204 PS)2010 to 2011
523iN53B30, N.A. I6petrol150 kW (204 PS)2010 to 2011
528iN53B30, N.A. I6petrol190 kW (258 PS)2010 to 2011
528iN52B30, N.A. I6petrol180 kW (245 PS)2010 to 2011
528iN20B20, turbo I4petrol180 kW (245 PS)2012 to 2016
530iN53B30, N.A. I6petrol200 kW (272 PS)2011 to 2013
535iN55B30, turbo I6petrol225 kW (306 PS)2009 to 2017
550iN63B44, turbo V8petrol300 kW (408 PS)2009 to 2013
550iN63B44, turbo V8petrol331 kW (450 PS)2014 to 2017
M5S63B44TÜ, turbo V8petrol412 kW (560 PS)2012 to 2016
ActiveHybrid 5N55B30, turbo I6petrol225 kW (306 PS)2011 to 2016
ActiveHybrid 5electricpetrol40 kW (54 PS)2011 to 2016
ActiveHybrid 5combinedpetrol250 kW (340 PS)2011 to 2016
518dN47D20, turbo I4diesel105 kW (143 PS)2013 to 2014
518dB47D20, turbo I4diesel110 kW (150 PS)2014 to 2016
520dN47D20, turbo I4diesel135 kW (184 PS)2010 to 2014
520dB47D20, turbo I4diesel140 kW (190 PS)2014 to 2017
525dN57D30, turbo I6diesel150 kW (204 PS)2010 to 2011
525dN47D20, turbo I4diesel160 kW (218 PS)2011 to 2016
530dN57D30O0, single-turbo I6diesel180 kW (245 PS)2009 to 2011
530dN57D30O1, single-turbo I6diesel190 kW (258 PS)2011 to 2017
535dN57D30T0, twin-turbo I6diesel220 kW (299 PS)2010 to 2011
535dN57D30T1, twin-turbo I6diesel230 kW (313 PS)2011 to 2017
M550dN57S, tri-turbo I6diesel280 kW (381 PS)2012 to 2016

Source: BMW 5 Series (F10), en.wikipedia.org.

UK popularity & demand

~196,854 BMW 5 Series licensed on UK roads — top 2% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 196,854 BMW 5 Series on UK roads, placing it in the top 2% of car models by volume across our fitment database.

A parc that size is why BMW 5 Series wheel fitment is worth getting exactly right: a lot of owners are shopping for these numbers.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Dimensions

Length4,899 to 5,039 mm
Width1,860 mm
Height1,460 mm
Wheelbase2,968 mm
Kerb weight1,700 to 1,935 kg

Source: BMW 5 Series (F10), en.wikipedia.org.

Body styles & production

Body styles4-door saloon (F10), 5-door estate (F11), 5-door fastback (F07)
Produced2009–2013

Factory colours

Alpinweiss IIIBright RedOrient Blue MetallicMojave Brown MetallicOlive MetallicTitanium Silver MetallicStahlblau MetallicLemans Blue MetallicAtlantis MetallicImola RedOrinocco MetallicCarbon Black MetallicElectric RedStratus Gray MetallicMidnight Blue MetallicSterlinggrau MetallicBlack Sapphire MetallicKalahari Beige MetallicToledo Blue MetallicBluewater Metallic

Trim levels

F10F11F07F18
