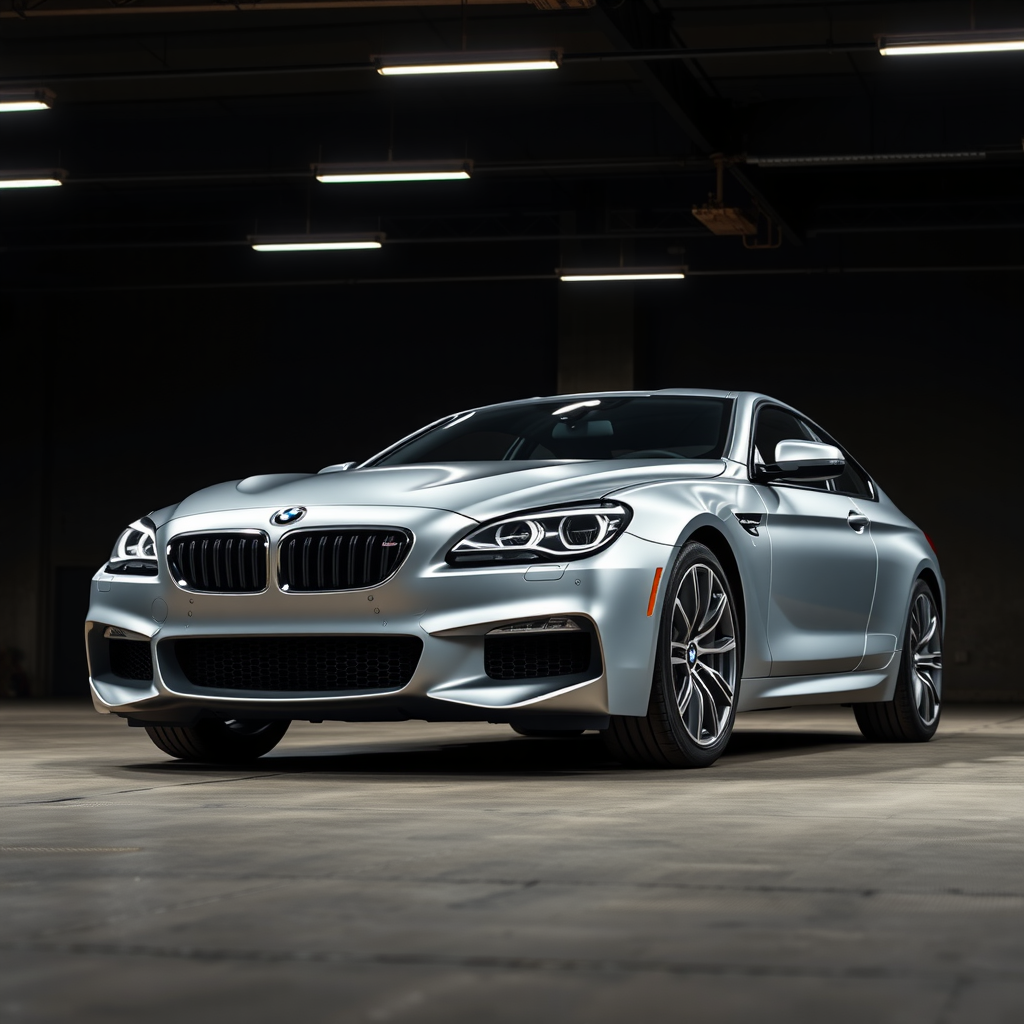

BMW 6 Series wheel fitment — III LCI F06/F12/F13
BMW 6 Series wheel fitment
BMW 6 Series wheel fitment comes down to two things: the factory hub spec, and how far the aftermarket width and offset can move from it. Both are here for the BMW 6 Series III LCI (F06/F12/F13) (2015–2019).
| Bolt pattern (PCD) | 5x120 |
| Centre bore | 72.6 mm |
| Bolt / thread | M14 x 1.25 (bolts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | direct |
| Run-flat | Yes |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8J–9.5J | ET9–ET30 |
| Rear (staggered) | 9J–10.5J | ET29–ET50 |
As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 640i / 640i xDrive | Ottomotor, 2,979 cc | petrol | 235 kW (320 PS) | xDrive, 2011 to 2018 |
| 650i / 650i xDrive | Ottomotor, 4,395 cc | petrol | 300 kW (408 PS) | xDrive, 2011 to 2012 |
| 650i / 650i xDrive | Ottomotor, 4,395 cc | petrol | 330 kW (450 PS) | xDrive, 2012 to 2018 |
| M6 | Ottomotor, 4,395 cc | petrol | 412 kW (560 PS) | RWD, 2012 to 2018 |
| M6 Competition | Ottomotor, 4,395 cc | petrol | 423 kW (575 PS) | RWD, 2012 to 2015 |
| M6 Competition | Ottomotor, 4,395 cc | petrol | 441 kW (600 PS) | RWD, 2015 to 2018 |
| 640d / 640d xDrive | Dieselmotor, 2,993 cc | diesel | 230 kW (313 PS) | xDrive, 2011 to 2018 |
| 640i / [640i xDrive] | N55B30, 2,979 cc | petrol | 235 kW (320 PS) | xDrive, 2012 to 2018 |
| 650i / [650i xDrive] | N63B44, 4,395 cc | petrol | 330 kW (450 PS) | xDrive, 2012 to 2018 |
| M6 | S63B44, 4,395 cc | 412 kW (560 PS) | RWD, 2013 to 2018 | |
| M6 Competition | S63B44, 4,395 cc | 423 kW (575 PS) | RWD, 2013 to 2015 | |
| M6 Competition | S63B44, 4,395 cc | 441 kW (600 PS) | RWD, 2015 to 2018 | |
| 640d / [640d xDrive] | N57D30, 2,993 cc | diesel | 230 kW (313 PS) | xDrive, 2012 to 2018 |
Source: BMW F12, de.wikipedia.org.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 19,390 BMW 6 Series on UK roads, placing it in the top 11% of car models by volume across our fitment database.
That makes BMW 6 Series wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 4,894 to 5,007 mm |
| Width | 1,894 mm |
| Height | 1,365 to 1,392 mm |
| Wheelbase | 2,855 to 2,968 mm |
| Kerb weight | 1,760 to 2,060 kg |
Source: BMW F12, de.wikipedia.org; EU type-approval data (EEA).
Body styles & production
| Body styles | 2-door convertible, 2-door coupé, 4-door sedan |
| Produced | 2015–2019 |
