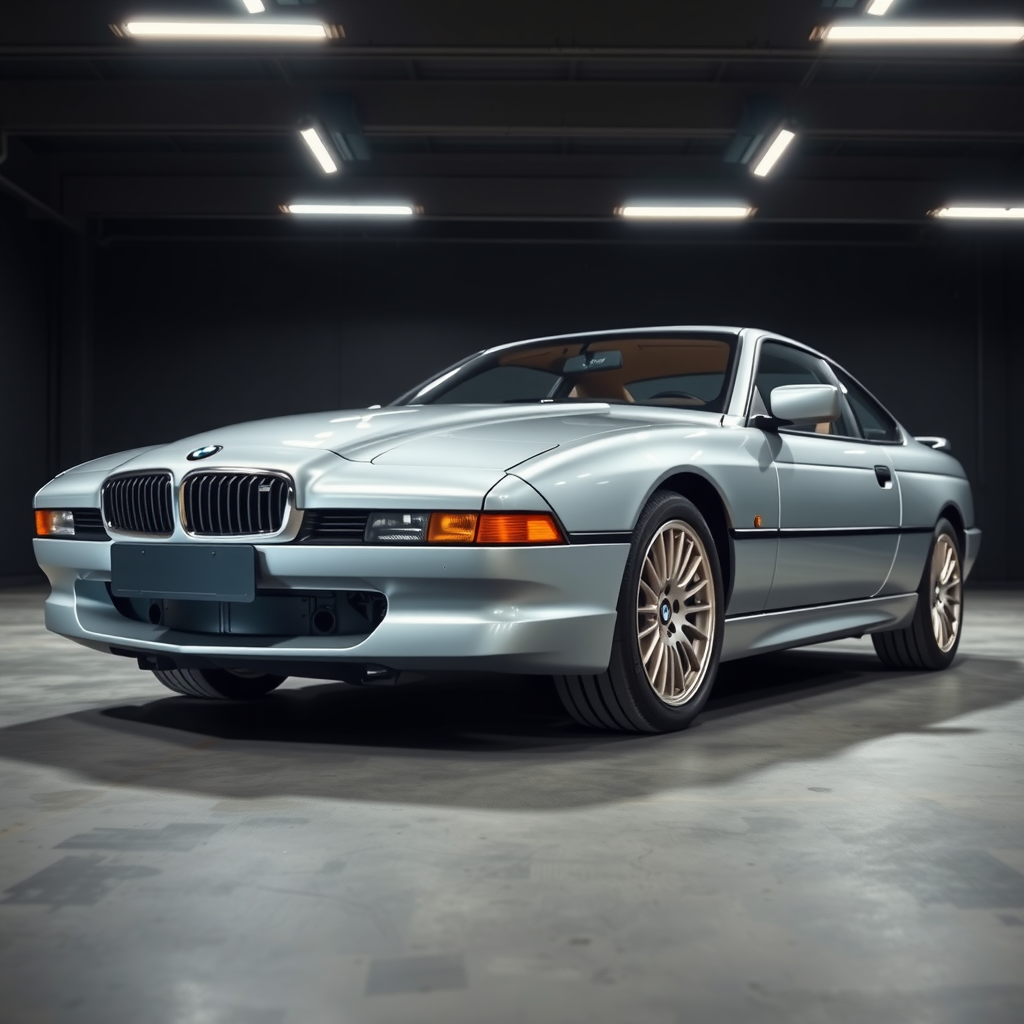

BMW 8 Series wheel fitment — E31
BMW 8 Series wheel fitment
Everything below is what the fit-check uses for BMW 8 Series wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the BMW 8 Series E31.
| Bolt pattern (PCD) | 5x120 |
| Centre bore | 72.5 mm |
| Bolt / thread | M12 x 1.5 (bolts) |
| Wheel-bolt torque | 115 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | none |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8J–8.5J | ET0–ET15 |
| Rear (staggered) | 9J–9.5J | ET5–ET21 |
Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| 830i | 2,997 cc, M60B30 | petrol | 160 kW (218 PS) | 1992 |
| 840i | 3,982 cc, M60B40 | petrol | 210 kW (286 PS) | 1993 to 1996 |
| 840Ci | 4,398 cc, M62B44 | 210 kW (286 PS) | 1995 to 1999 | |
| 850i | 4,988 cc, M70B50 | petrol | 220 kW (300 PS) | 1989 to 1992 |
| 850Ci | 4,988 cc, M70B50 | 220 kW (300 PS) | 1993 to 1994 | |
| 850Ci | 5,379 cc, M73B54 | 240 kW (326 PS) | 1994 to 1999 | |
| 850CSi | 5,576 cc, S70B56 | 280 kW (380 PS) | 1992 to 1996 |
Source: BMW E31, de.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| 830i | 160 kW (218 PS) | 8.3 s | 232 km/h (144 mph) |
| 840i | 210 kW (286 PS) | 7 s | 250 km/h (155 mph) |
| 840Ci | 210 kW (286 PS) | 6.9 s | 250 km/h (155 mph) |
| 850i | 220 kW (300 PS) | 6.8 s | 250 km/h (155 mph) |
| 850Ci | 220 kW (300 PS) | 6.8 s | 250 km/h (155 mph) |
| 850Ci | 240 kW (326 PS) | 6.3 s | 250 km/h (155 mph) |
| 850CSi | 280 kW (380 PS) | 6 s | 250 km/h (155 mph) |
Source: BMW E31, de.wikipedia.org.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 6,642 BMW 8 Series on UK roads, placing it in the top 17% of car models by volume across our fitment database.
That makes BMW 8 Series wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 4,780 mm |
| Width | 1,855 mm |
| Height | 1,340 mm |
| Wheelbase | 2,684 mm |
| Kerb weight | 1,790 to 1,955 kg |
Source: BMW E31, de.wikipedia.org.
Body styles & production
| Body styles | 2-door coupé |
| Produced | 1989–1999 |
