What size wheels fit a BMW M5 VI (F90) LCI?

Roughly 9.5J–10.5J (ET16–ET35); staggered setups run 10J–11J rear.

How many BMW M5 are there on UK roads?

Approximately 6,002 BMW M5 are licensed in the UK, according to DfT VEH0124 vehicle-parc data (2025).

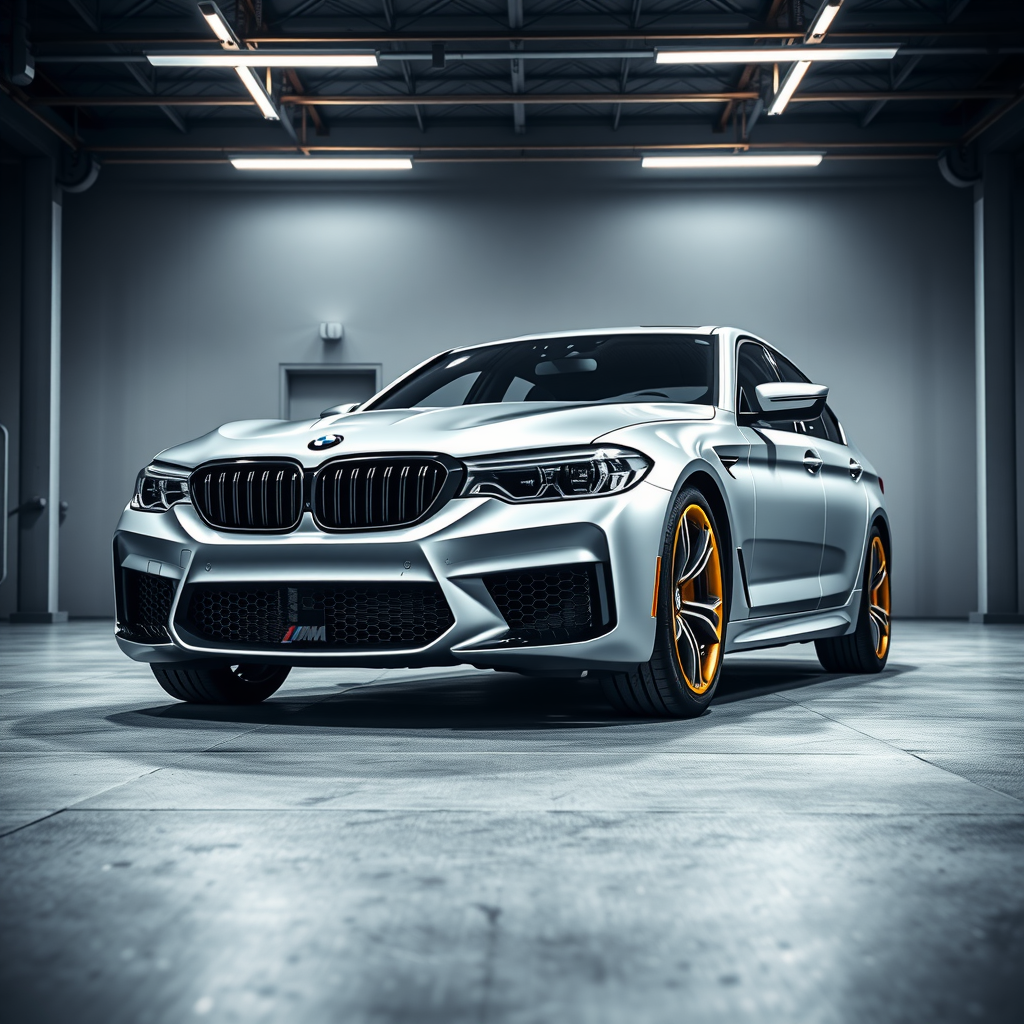

BMW M5 wheel fitment — VI F90 LCI

By Torque, AIWheelTech vehicle & fitment specialist · 2020–2023

BMW M5 wheel fitment in one line: The BMW M5 VI (F90) LCI (2020–2023) uses a 5x112 bolt pattern, 66.6 mm centre bore, M14 x 1.25 bolts torqued to ~140 Nm. It accepts ~9.5J–10.5J wheels at ET16–ET35 front; staggered setups run 10J–11J rear (ET14–ET40).

Overview

The BMW M5 VI (F90) LCI is a high-performance version of the BMW 5 Series automobile developed by BMW's motorsport division, BMW M GmbH. It has been produced since 2017 and features front-engine all-wheel-drive layout. The F90 generation succeeded the E60/E61 series and introduced significant changes including an increase in performance capabilities and a shift towards more advanced technology and luxury features compared to its predecessor.

History & notable variants

The VI generation of the M5 was first unveiled in 2017, marking a new era for BMW's high-performance executive car. It underwent a mid-cycle refresh (LCI) which brought cosmetic updates and minor mechanical improvements. Notable variants include performance editions that enhance the standard model’s capabilities.

BMW M5 wheel fitment

Everything below is what the fit-check uses for BMW M5 wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the BMW M5 VI (F90) LCI.

Bolt pattern (PCD)	5x112
Centre bore	66.6 mm
Bolt / thread	M14 x 1.25 (bolts)
Wheel-bolt torque	140 Nm
Seat type	tapered
Factory setup	staggered
TPMS	direct
Run-flat	Yes

Aftermarket wheel sizes — read per position:

Position	Width	Offset
Front	9.5J–10.5J	ET16–ET35
Rear (staggered)	10J–11J	ET14–ET40

As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a BMW M5 →Get them fitted (UK)

Engines & drivetrain

Variant	Engine	Fuel	Power	Drive, years
4.4 L S63 twin-turbo V8

Source: BMW M5, en.wikipedia.org.

UK popularity & demand

~6,002 BMW M5 licensed on UK roads — top 17% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 6,002 BMW M5 on UK roads, placing it in the top 17% of car models by volume across our fitment database.

With that many on the road, BMW M5 wheel fitment is a spec fitters see constantly. We keep it current for that reason.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Dimensions

Length	4,965 mm
Width	1,903 mm
Height	1,473 mm
Wheelbase	2,982 mm
Kerb weight	1,930 to 1,950 kg

Source: BMW M5, en.wikipedia.org; EU type-approval data (EEA).

Body styles & production

Body styles	4-door saloon
Produced	2020–2023

Factory colours

Alpinweiss IIIStahlblau MetallicCarbon Black MetallicBlack Sapphire MetallicFrozen Silver Metallic MatteFrozen Gray Metallic MatteFrozen Bronze Metallic MatteFrozen Dark Brown MetallicAventurinrot III MetallicFrozen Black Metallic MatteFrozen Arctic Grey Metallic MatteJet BlackAlpine White IIIBlacksapphire MetallicDonington Grey MetallicChampagne Quartz MetallicDonington grey met.Snapper rocks blue met.Bluestone PearlTansanitblau met.

Trim levels

M5 Competition

Reliability & owner notes

Pros: High performance capabilities, advanced technology features, luxurious interior
Cons: Expensive, high fuel consumption
