BMW X1 wheel fitment — II F48/F49
Overview

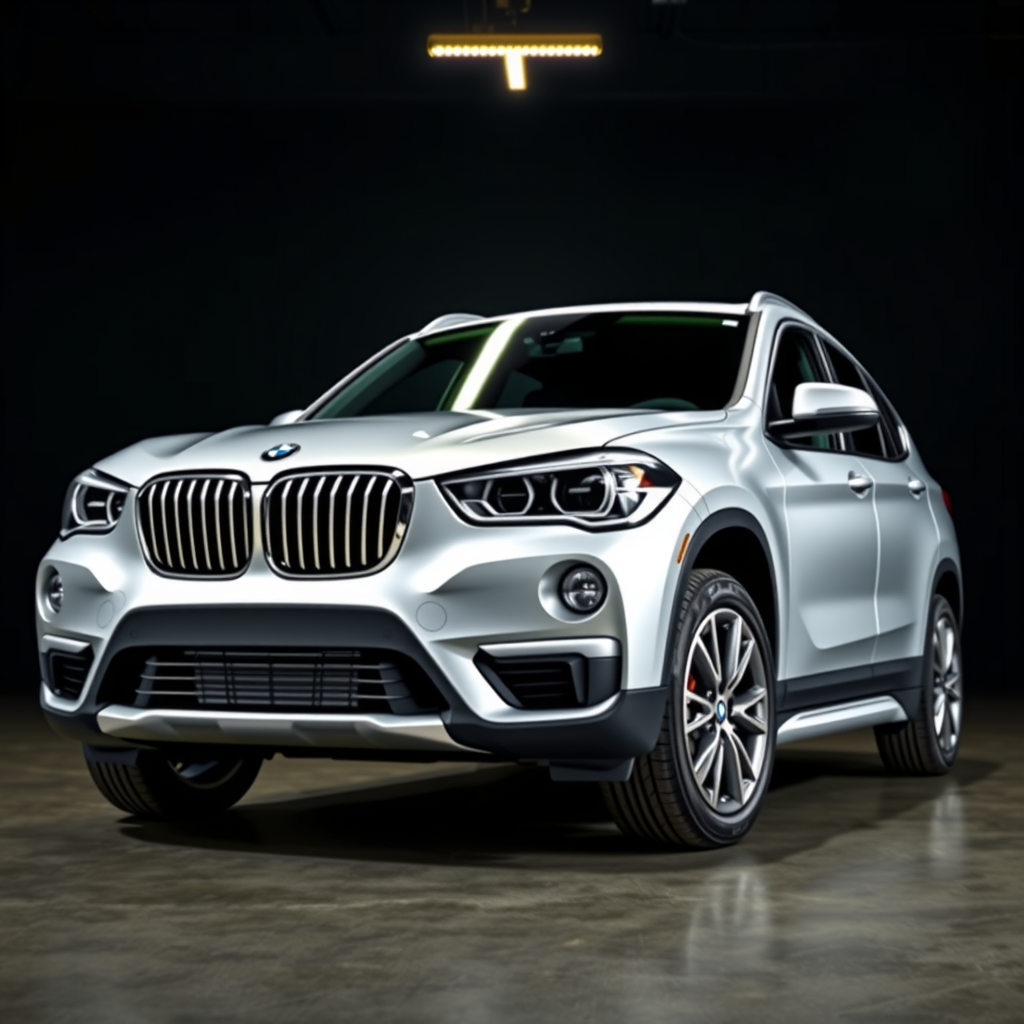

The BMW X1 II (F48/F49) is the second generation of the subcompact luxury crossover SUV, introduced at the September 2015 Frankfurt Motor Show and later at the 2015 Tokyo Motor Show. It marks a shift from rear-wheel drive to front-wheel drive (sDrive), with an optional all-wheel drive (xDrive). Built on the modular UKL2 platform shared with MINI models, it offers improved interior space despite being shorter in wheelbase compared to its predecessor. A long-wheelbase variant (F49) was introduced for the Chinese market in 2016.
BMW X1 wheel fitment
Start with the hub. The BMW X1 II (F48/F49) spec table gives the bolt pattern and bore; the second table is the aftermarket window for BMW X1 wheel fitment.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14 x 1.25 (bolts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | direct |
| Run-flat | Yes |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 7.5J–8.5J | ET22–ET35 |
| Rear (staggered) | 9J–9.5J | ET31–ET45 |
As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 129,378 BMW X1 on UK roads, placing it in the top 3% of car models by volume across our fitment database.
With that many on the road, BMW X1 wheel fitment is a spec fitters see constantly. We keep it current for that reason.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| sDrive18i | Ottomotor, 1,499 cc, B38A15M0 | petrol | 100 kW (136 PS) | FWD, 2015 to 2022 |
| sDrive18i | Ottomotor, 1,499 cc, B38A15M1 | petrol | 103 kW (140 PS) | FWD, 2017 to 2020 |
| sDrive20i | Ottomotor, 1,998 cc, B48A20U1 | petrol | 131 kW (178 PS) | FWD, 2020 to 2022 |
| xDrive20i | Ottomotor, 1,998 cc, B48A20U1 | petrol | 131 kW (178 PS) | xDrive, 2020 to 2022 |
| sDrive20i | Ottomotor, 1,998 cc, B48A20M1 | petrol | 141 kW (192 PS) | FWD, 2017 to 2020 |
| xDrive20i | Ottomotor, 1,998 cc, B48A20M0 | petrol | 141 kW (192 PS) | xDrive, 2015 to 2020 |
| xDrive25i/ / xDrive28i (USA) | Ottomotor, 1,998 cc, B48B20O0 | petrol | 170 kW (231 PS) | xDrive, 2015 to 2022 |
| xDrive25e | Ottomotor und Elektromotor, 1,499 cc, B38A15A | hybrid | 162 kW (220 PS) | xDrive, 2020 to 2022 |
| sDrive16d | Dieselmotor, 1,496 cc, B37C15U0 | diesel | 85 kW (116 PS) | FWD, 2015 to 2022 |
| sDrive18d | Dieselmotor, 1,995 cc, B47C20U0 | diesel | 110 kW (150 PS) | FWD, 2015 to 2022 |
| xDrive18d | Dieselmotor, 1,995 cc, B47C20U0 | diesel | 110 kW (150 PS) | xDrive, 2015 to 2022 |
| sDrive20d | Dieselmotor, 1,995 cc, B47C20O1 | diesel | 140 kW (190 PS) | FWD, 2018 to 2022 |
| xDrive20d | Dieselmotor, 1,995 cc, B47C20O0 | diesel | 140 kW (190 PS) | xDrive, 2015 to 2017 |
| xDrive20d | Dieselmotor, 1,995 cc, B47C20O1 | diesel | 140 kW (190 PS) | xDrive, 2017 to 2022 |
| xDrive25d | Dieselmotor, 1,995 cc, B47C20T0 | diesel | 170 kW (231 PS) | xDrive, 2015 to 2022 |
| xDrive25Le iPerformance | B38, 1,499 cc | phev | 170 kW (231 PS) | xDrive, 2016 to 2019 |
| xDrive25Le iPerformance | B38, 1,499 cc | phev | 170 kW (231 PS) | xDrive, 2019 |
Source: BMW F48, de.wikipedia.org.
Performance
| Variant | Power | 0 to 62 mph (0 to 100 km/h) | Top speed |
|---|---|---|---|
| sDrive18i | 100 kW (136 PS) | 200 to 204 km/h (124 to 127 mph) | |
| sDrive18i | 103 kW (140 PS) | 203 to 205 km/h (126 to 127 mph) | |
| sDrive20i | 131 kW (178 PS) | 226 km/h (140 mph) | |
| xDrive20i | 131 kW (178 PS) | 223 km/h (139 mph) | |
| sDrive20i | 141 kW (192 PS) | 226 km/h (140 mph) | |
| xDrive20i | 141 kW (192 PS) | 223 km/h (139 mph) | |
| xDrive25i/ / xDrive28i (USA) | 170 kW (231 PS) | 210 to 235 km/h (130 to 146 mph) | |
| sDrive16d | 85 kW (116 PS) | 190 km/h (118 mph) | |
| sDrive18d | 110 kW (150 PS) | 205 km/h (127 mph) | |
| xDrive18d | 110 kW (150 PS) | 204 km/h (127 mph) | |
| sDrive20d | 140 kW (190 PS) | 222 km/h (138 mph) | |
| xDrive20d | 140 kW (190 PS) | 219 to 220 km/h (136 to 137 mph) | |
| xDrive20d | 140 kW (190 PS) | 219 km/h (136 mph) | |
| xDrive25d | 170 kW (231 PS) | 235 km/h (146 mph) |
Source: BMW F48, de.wikipedia.org.
Dimensions
| Length | 4,439 to 4,447 mm |
| Width | 1,821 mm |
| Height | 1,582 to 1,612 mm |
| Wheelbase | 2,670 mm |
| Kerb weight | 1,470 to 1,984 kg |
Source: BMW F48, de.wikipedia.org; EU type-approval data (EEA).
Body styles & production
| Body styles | 5-door SUV |
| Produced | 2015–2019 |
Trim levels
Factory colours
History & notable variants
The F48 X1 underwent a facelift (LCI) in May 2019, featuring new LED headlights and bumpers with LED taillights, along with updated wheels and grille design. The plug-in hybrid xDrive25e model was also introduced in September 2019. Notable awards include the Auto Bild 'Golden Steering Wheel' (2015), Auto motor und sport 'Best Cars' (2016 & 2018), Motor Trend 'Best Subcompact Luxury SUV' (2017).
Reliability & owner notes
- Pros: Improved interior space, front-wheel drive efficiency, modular platform flexibility
- Cons: Shorter wheelbase compared to predecessor, limited engine options in some markets
- Common issues: None specified
