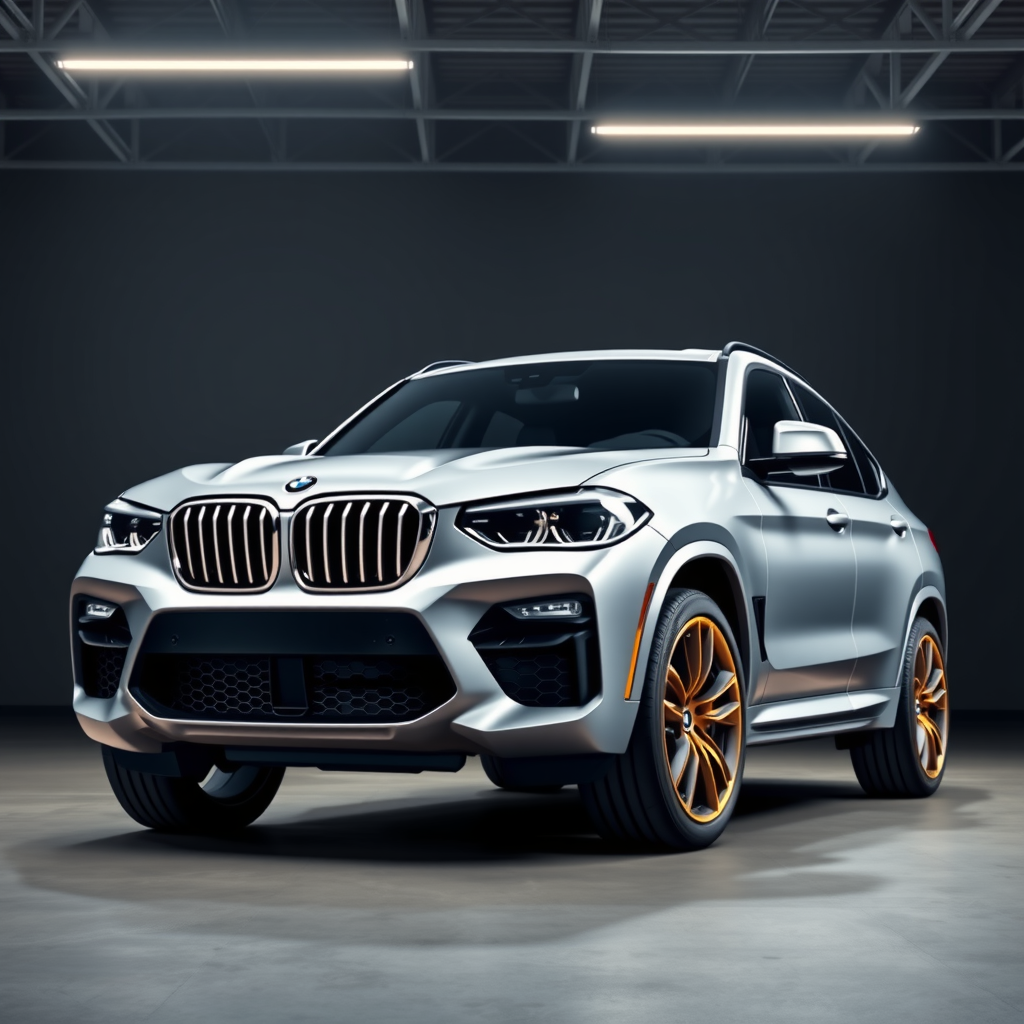

BMW X4 wheel fitment — G02 LCI
BMW X4 wheel fitment
BMW X4 wheel fitment for the BMW X4 G02 LCI (2014–2025): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.
| Bolt pattern (PCD) | 5x112 |
| Centre bore | 66.6 mm |
| Bolt / thread | M14 x 1.25 (bolts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | direct |
| Run-flat | Yes |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8J–9J | ET12–ET37 |
| Rear (staggered) | 9.5J–10J | ET28–ET42 |
As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 20,518 BMW X4 on UK roads, placing it in the top 10% of car models by volume across our fitment database.
That makes BMW X4 wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Overview
The BMW X4 is a compact luxury crossover SUV manufactured by BMW from 2014 to 2025. It is marketed as a sports activity coupé (SAC), the second model from BMW marketed as such after the X6, and features styling elements and the roofline of a traditional two-door coupé. The X4 is widely considered as a 'coupé' version of the X3, trading its practicality with a sloping rear roof which offers a sportier styling. BMW has indicated 2025 will be the X4's final model year.
Dimensions
| Length | 4,733 to 4,758 mm |
| Width | 1,918 to 1,938 mm |
| Height | 1,618 to 1,621 mm |
| Wheelbase | 2,864 mm |
| Kerb weight | 1,800 to 2,065 kg |
Source: BMW G02, de.wikipedia.org; EU type-approval data (EEA).
Body styles & production
| Body styles | Kombilimousine |
| Produced | 2014–2025 |
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| xDrive20i | Ottomotor, 1,998 cc | petrol | 135 kW (184 PS) | xDrive, 2018 to 2021 |
| xDrive20i | Ottomotor, 1,998 cc | petrol | 135 kW (184 PS) | xDrive, 2021 to 2023 |
| xDrive20i | Ottomotor, 1,998 cc | petrol | 135 kW (184 PS) | xDrive, 2023 to 2025 |
| xDrive30i | Ottomotor, 1,998 cc | petrol | 180 kW (245 PS) | xDrive, 2023 to 2025 |
| xDrive30i | Ottomotor, 1,998 cc | petrol | 180 kW (245 PS) | xDrive, 2021 to 2024 |
| xDrive30i | Ottomotor, 1,998 cc | petrol | 185 kW (252 PS) | xDrive, 2018 to 2021 |
| M40i | Ottomotor, 2,998 cc | petrol | 260 kW (354 PS) | AWD, 2018 to 2019 |
| M40i | Ottomotor, 2,998 cc | petrol | 265 kW (360 PS) | AWD, 2019 to 2021 |
| M40i | Ottomotor, 2,998 cc | petrol | 265 kW (360 PS) | AWD, 2021 to 2024 |
| M40i | Ottomotor, 2,998 cc | petrol | 265 kW (360 PS) | AWD, 2024 to 2025 |
| M [F98] | Ottomotor, 2,993 cc | petrol | 353 kW (480 PS) | AWD, 2019 to 2021 |
| M Competition [F98] | Ottomotor, 2,993 cc | petrol | 375 kW (510 PS) | AWD, 2019 to 2021 |
| M Competition [F98] | Ottomotor, 2,993 cc | petrol | 375 kW (510 PS) | AWD, 2021 to 2024 |
| M Competition [F98] | Ottomotor, 2,993 cc | petrol | 375 kW (510 PS) | AWD, 2024 to 2025 |
| xDrive20d | Dieselmotor, 1,995 cc | diesel | 140 kW (190 PS) | xDrive, 2018 to 2021 |
| xDrive20d | Dieselmotor, 1,995 cc | diesel | 140 kW (190 PS) | xDrive, 2021 to 2024 |
| xDrive20d | Dieselmotor, 1,995 cc | diesel | 140 kW (190 PS) | xDrive, 2024 to 2025 |
| xDrive25d | Dieselmotor, 1,995 cc | diesel | 170 kW (231 PS) | xDrive, 2018 to 2019 |
| xDrive30d | Dieselmotor, 2,993 cc | diesel | 195 kW (265 PS) | xDrive, 2018 to 2020 |
| xDrive30d | Dieselmotor, 2,993 cc | diesel | 210 kW (286 PS) | xDrive, 2020 to 2021 |
| xDrive30d | Dieselmotor, 2,993 cc | diesel | 210 kW (286 PS) | xDrive, 2021 to 2024 |
| xDrive30d | Dieselmotor, 2,993 cc | diesel | 210 kW (286 PS) | xDrive, 2024 to 2025 |
| M40d | Dieselmotor, 2,993 cc | diesel | 240 kW (326 PS) | AWD, 2018 to 2020 |
| M40d | Dieselmotor, 2,993 cc | diesel | 250 kW (340 PS) | AWD, 2020 to 2021 |
| M40d | Dieselmotor, 2,993 cc | diesel | 250 kW (340 PS) | AWD, 2021 to 2024 |
| M40d | Dieselmotor, 2,993 cc | diesel | 250 kW (340 PS) | AWD, 2024 to 2025 |
Source: BMW G02, de.wikipedia.org.
Trim levels
Factory colours
History & notable variants
The first-generation X4 was unveiled at the 2014 New York International Auto Show and later at the Beijing International Automotive Exhibition 2014, and Auto Mobil International Leipzig 2014. Early models included xDrive20i, xDrive28i, xDrive35i, xDrive20d, xDrive30d, and xDrive35d. The M Performance M40i model was announced in 2015 and went on sale from February 2016.
Reliability & owner notes
- Pros: Sporty styling, available M Performance models, efficient powertrains
- Cons: Less practical than the X3 due to sloping roofline, higher price point compared to traditional SUVs
