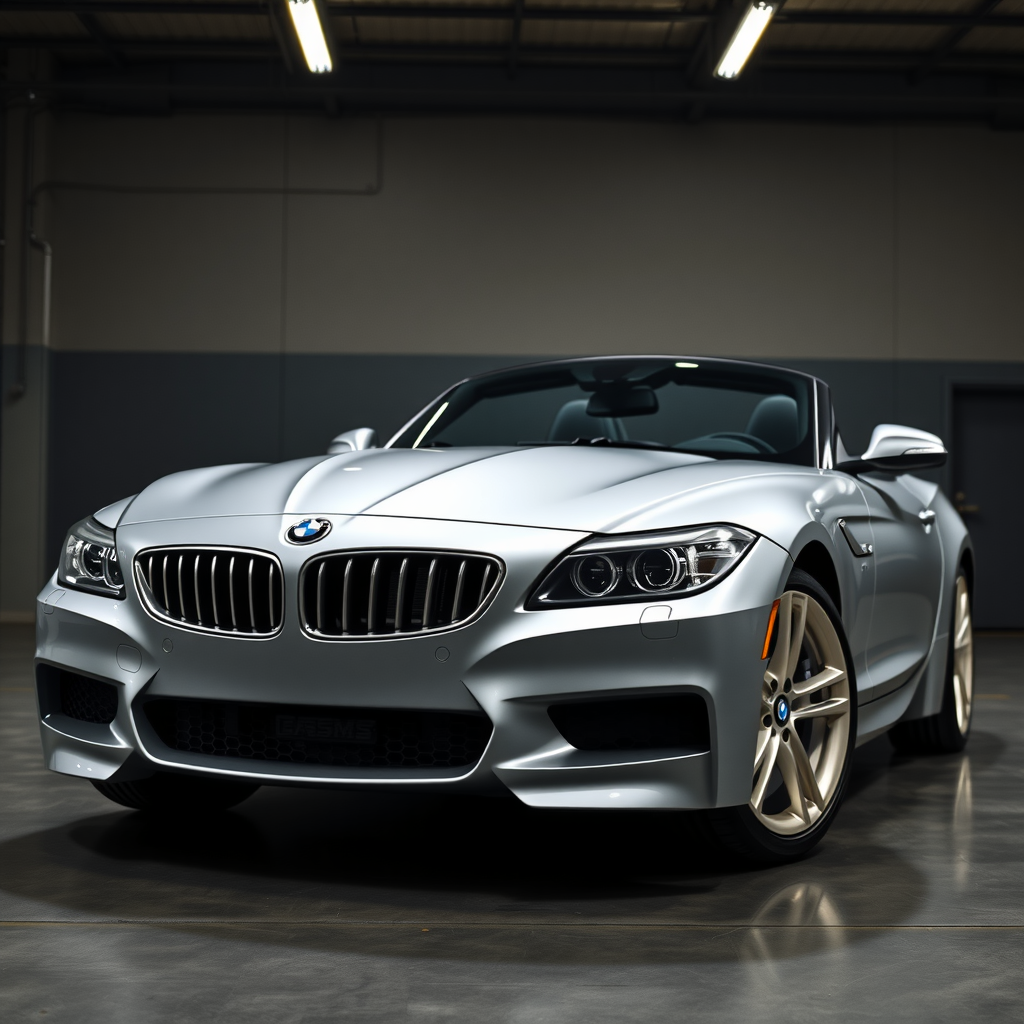

BMW Z4 wheel fitment — II E89 LCI
Overview
The BMW Z4 II (E89) is the second generation of the BMW Z4 range of two-door roadsters, produced from February 2009 to August 2016 in Regensburg, Germany. It was the first Z Series model to use a retractable hardtop roof, eliminating separate roadster and coupé versions. The E89 replaced the E85/E86 Z4 and is built on the BMW L2 platform. This generation saw significant design changes with female designers Juliane Blasi (exterior) and Nadya Arnaout (interior). It was succeeded by the G29 model in 2018.
History & notable variants
The E89 was officially announced on December 13, 2008, unveiled at the North American International Auto Show in Detroit alongside the MINI Convertible. Production began in February 2009 and ended in August 2016. A total of €130 million was spent from 2007 to 2009 on expanding the Regensburg plant for production, making it the third Z series car manufactured in Germany since the Z1 and Z8. Notable awards include the International Design Excellence Award (IDEA) and Eyes on Design Award for best production vehicle.
BMW Z4 wheel fitment
Everything below is what the fit-check uses for BMW Z4 wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the BMW Z4 II (E89) LCI.
| Bolt pattern (PCD) | 5x120 |
| Centre bore | 72.6 mm |
| Bolt / thread | M12 x 1.5 (bolts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | tapered |
| Factory setup | staggered |
| TPMS | direct |
| Run-flat | Yes |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 7J–8J | ET23–ET54 |
| Rear (staggered) | 8J–9.5J | ET17–ET45 |
As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.
Engines & drivetrain
| Variant | Engine | Fuel | Power | Drive, years |
|---|---|---|---|---|
| sDrive18i | 1,997 cc, N20B20 | 115 kW (156 PS) | 2013 to 2016 | |
| sDrive20i | 1,997 cc, N20B20 | 135 kW (184 PS) | 2011 to 2016 | |
| sDrive23i | 2,497 cc, N52B25 | 150 kW (204 PS) | 2009 to 2011 | |
| sDrive28i | 1,997 cc, N20B20 | 180 kW (245 PS) | 2011 to 2016 | |
| sDrive30i | 2,996 cc, N52B30 | 190 kW (258 PS) | 2009 to 2011 | |
| sDrive35i | 2,979 cc, N54B30 | 225 kW (306 PS) | 2009 to 2016 | |
| sDrive35is | 2,979 cc, N54B30 | 250 kW (340 PS) | 2010 to 2016 |
Source: BMW E89, de.wikipedia.org.
UK popularity & demand
Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 32,081 BMW Z4 on UK roads, placing it in the top 8% of car models by volume across our fitment database.
That makes BMW Z4 wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.
Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.
Dimensions
| Length | 4,239 mm |
| Width | 1,790 mm |
| Height | 1,291 mm |
| Wheelbase | 2,496 mm |
| Kerb weight | 1,470 to 1,600 kg |
Source: BMW E89, de.wikipedia.org.
Body styles & production
| Body styles | 2-door coupé convertible |
| Produced | 2009–2016 |
| Units produced | 197,950 |
Factory colours
Trim levels
Reliability & owner notes
- Pros: Retractable hardtop roof; available in multiple trims including M Sport; Euro 6 exhaust emission standards met since summer of 2013
- Cons: No diesel or all-wheel drive (xDrive) models offered; production ended earlier than expected
