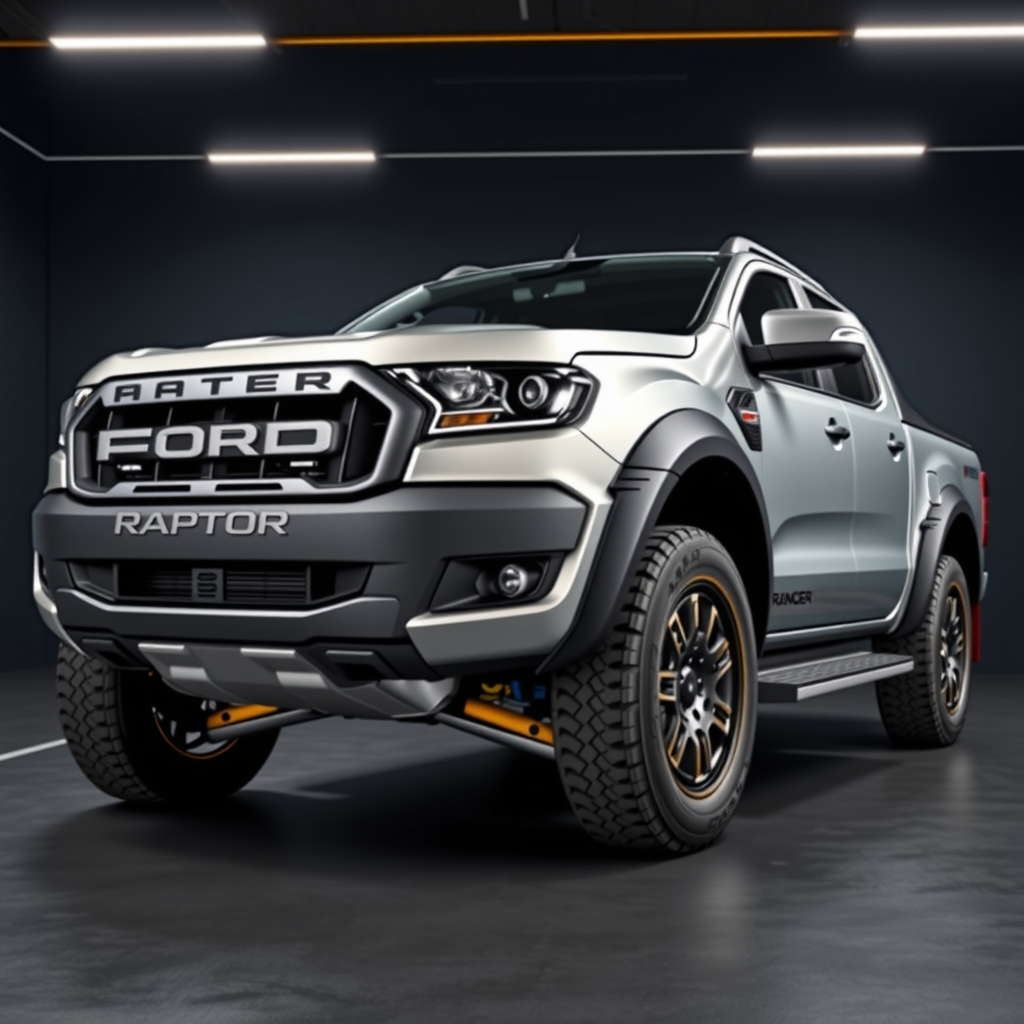

Ford Ranger Raptor wheel fitment — V 2AB, 2AZB 60mm Arch Kit
Quick answer on Ford Ranger Raptor wheel fitment: The Ford Ranger Raptor V 2AB, 2AZB 60mm Arch Kit (2019–2023) uses a 6x139.7 bolt pattern, 93.1 mm centre bore, M12x1.5 nuts torqued to ~140 Nm. It accepts ~8.5J–11J wheels at ET25–ET55.
Ford Ranger Raptor wheel fitment
Ford Ranger Raptor wheel fitment comes down to two things: the factory hub spec, and how far the aftermarket width and offset can move from it. Both are here for the Ford Ranger Raptor V 2AB, 2AZB 60mm Arch Kit (2019–2023).
| Bolt pattern (PCD) | 6x139.7 |
| Centre bore | 93.1 mm |
| Bolt / thread | M12x1.5 (nuts) |
| Wheel-bolt torque | 140 Nm |
| Seat type | tapered |
| Factory setup | square |
| TPMS | none |
Aftermarket wheel sizes — read per position:
| Position | Width | Offset |
|---|---|---|
| Front | 8.5J–11J | ET25–ET55 |
Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.
Dimensions
| Kerb weight | 2,035 to 2,585 kg |
Source: EU type-approval data (EEA).
Body styles & production
| Produced | 2019–2023 |
Factory colours
Ocean PearlMoondust Silver MetallicAluminum MetallicSea Gray MetallicRoyalgrau MetallicSea Grey MetallicMeteor Gray MicaSaber MetallicCool WhiteArizona Beige MetallicHarvest Gold MetallicBlue Reflex MetallicSedona Orange MetallicColorado RedConquer GreyLucid Red Pearl MetallicVermilion RedVelocity Blue MetallicHot Pepper Red Pearl MetallicDiffused Silver Metallic
