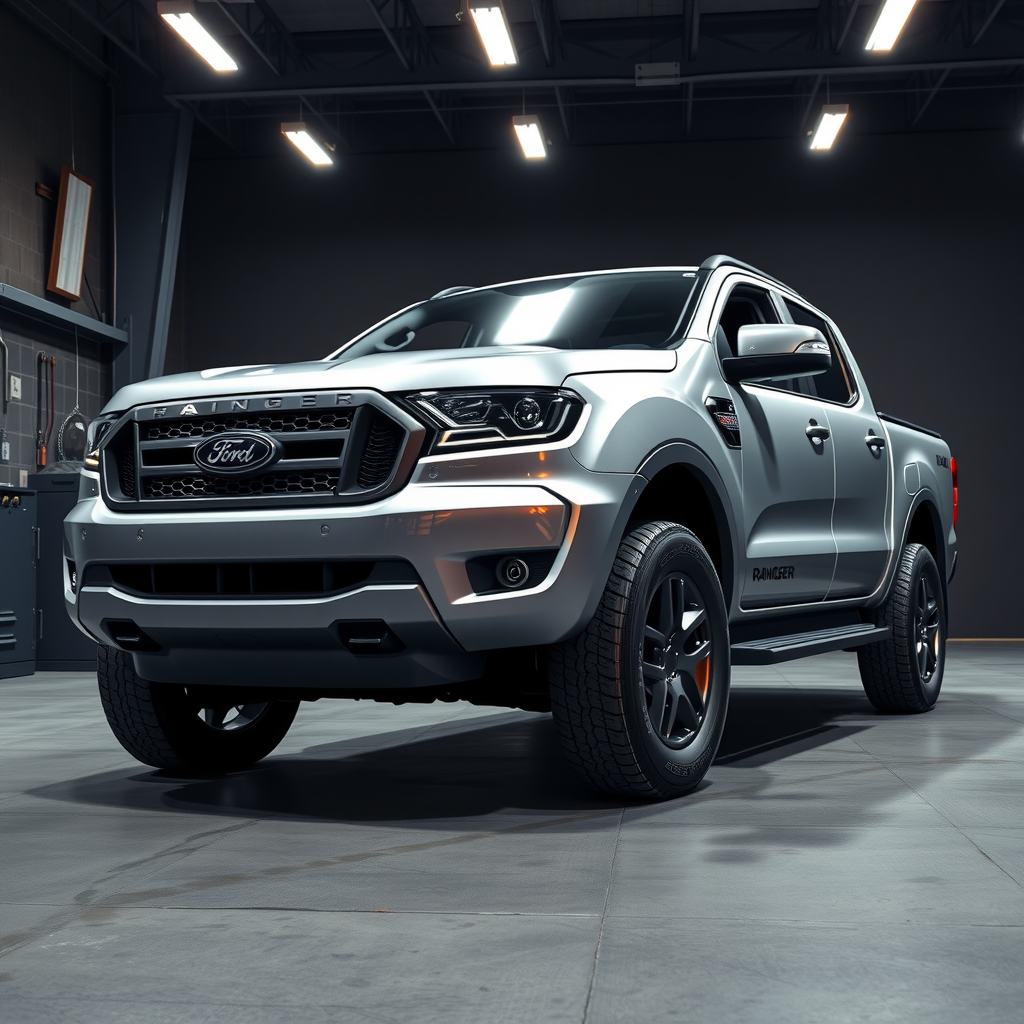

Ford Ranger III side profile — Ford Ranger wheel fitment

Ford Ranger wheel fitment — III

By Torque, AIWheelTech vehicle & fitment specialist · 2011–2016
The Ford Ranger III (2011–2016) uses a 6x139.7 bolt pattern, 93.1 mm centre bore, M12x1.5 nuts torqued to ~140 Nm. It accepts ~6.5J–10.5J wheels at ET-3–ET55. That is the short version of Ford Ranger wheel fitment; the full picture is below.

Overview

The Ford Ranger III is a mid-size pickup truck marketed globally by Ford since 2011, developed in-house by Ford Australia on the T6 platform (codename: P375). It replaced both American and Mazda-sourced Rangers with a single model worldwide. In North America, it was reintroduced for the 2019 model year after an eight-year hiatus to slot below the F-150 in the pickup truck range. The Ranger is manufactured at Ford's Michigan Assembly Plant in Wayne, Michigan.

Ford Ranger wheel fitment

Start with the hub. The Ford Ranger III spec table gives the bolt pattern and bore; the second table is the aftermarket window for Ford Ranger wheel fitment.

Bolt pattern (PCD)6x139.7
Centre bore93.1 mm
Bolt / threadM12x1.5 (nuts)
Wheel-bolt torque140 Nm
Seat typetapered
Factory setupsquare
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–10.5JET-3–ET55

As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Ford Ranger →Get them fitted (UK)

UK popularity & demand

~2 Ford Ranger licensed on UK roads — top 87% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 2 Ford Ranger on UK roads, placing it in the top 87% of car models by volume across our fitment database.

A parc that size is why Ford Ranger wheel fitment is worth getting exactly right: a lot of owners are shopping for these numbers.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Body styles & production

Produced2011–2016

Trim levels

XLXLTLariat

Factory colours

shiraz red mica met.Twilight Blue MetallicOcean / Blue Metallicvivid blue met.black met.Panther Black Mica (XSC-2851)Highlight / Silver MetallicDark Green Mica MetallicMoondust Silver Metallic XSC2431

History & notable variants

In 2011, Ford introduced the first generation of the T6-based Ranger globally, marking a shift from previous generations developed by Mazda or sourced from North America. This model was designed to be marketed worldwide but not available in the US and Canada between 2011 and 2018 due to market-specific regulations and demands. The second generation (codename: P703) was released in 2021, featuring significant changes on a revised T6 platform.
