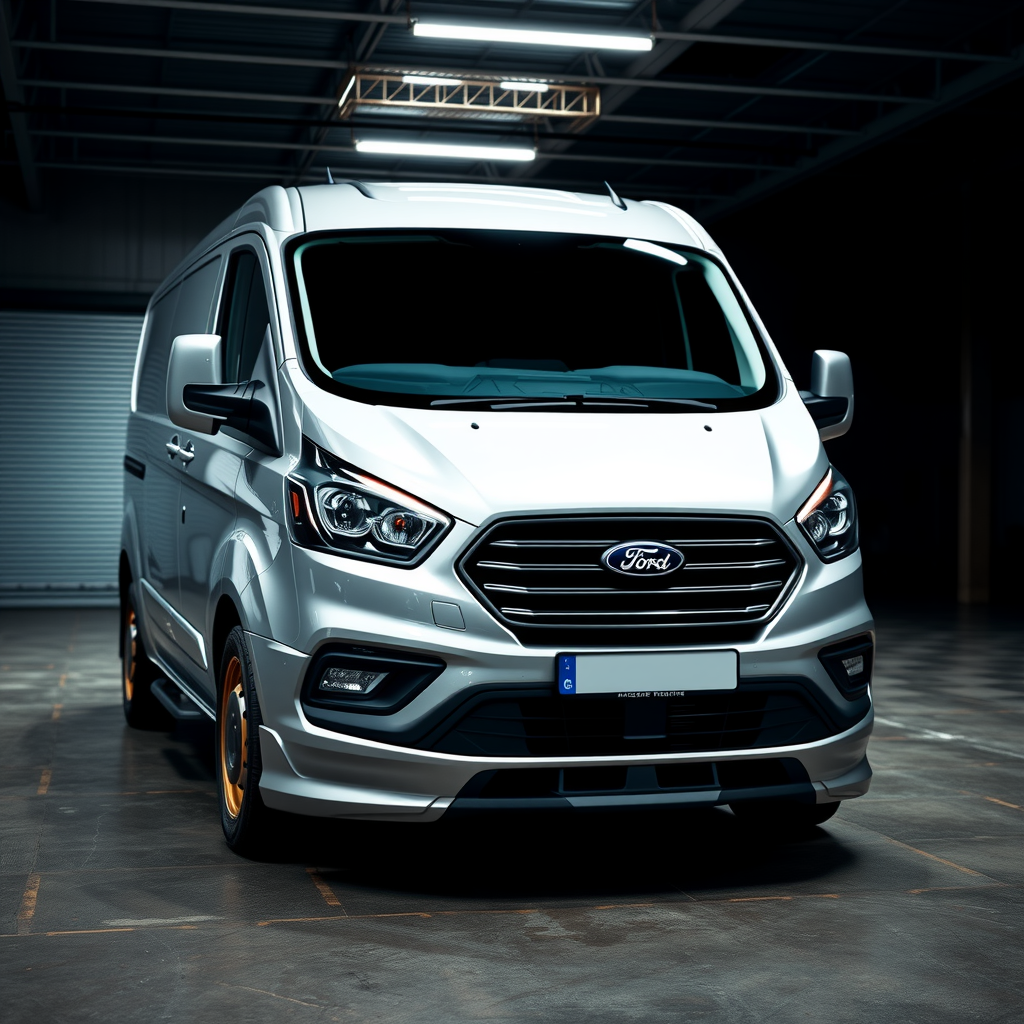

Ford Transit Custom FAC, FCC (5 Stud) side profile — Ford Transit Custom wheel fitment

Ford Transit Custom wheel fitment — FAC, FCC 5 Stud

By Torque, AIWheelTech vehicle & fitment specialist · 2013–2023
The Ford Transit Custom FAC, FCC (5 Stud) (2013–2023) uses a 5x160 bolt pattern, 65.1 mm centre bore, M14x1.5 nuts torqued to ~160 Nm. It accepts ~6.5J–8.5J wheels at ET18–ET60. That is the short version of Ford Transit Custom wheel fitment; the full picture is below.

Overview

The Ford Transit Custom FAC, FCC (5 Stud) is a mid-sized front-wheel-drive van produced by Ford Europe since 2012. It represents the smaller version of the larger Ford Transit and was unveiled at the Commercial Vehicle Show in Birmingham, England in 2012. The first generation saw mild styling changes and new engine families introduced from 2017 onwards.

Ford Transit Custom wheel fitment

Start with the hub. The Ford Transit Custom FAC, FCC (5 Stud) spec table gives the bolt pattern and bore; the second table is the aftermarket window for Ford Transit Custom wheel fitment.

Bolt pattern (PCD)5x160
Centre bore65.1 mm
Bolt / threadM14x1.5 (nuts)
Wheel-bolt torque160 Nm
Seat typetapered
Factory setupsquare
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–8.5JET18–ET60

Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.

Browse wheels that fit a Ford Transit Custom →Get them fitted (UK)

UK popularity & demand

~4,245 Ford Transit Custom licensed on UK roads — top 20% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 4,245 Ford Transit Custom on UK roads, placing it in the top 20% of car models by volume across our fitment database.

That makes Ford Transit Custom wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Dimensions

Kerb weight1,846 to 2,350 kg

Source: EU type-approval data (EEA).

Body styles & production

Produced2013–2023

Trim levels

Tourneo CustomNugget

Factory colours

BlackOcean PearlCafe MetallicFrozen WhiteRoyalgrau MetallicSea Grey MetallicSea Gray MetallicBlue Turquoise MetallicVermilionVermilion RedTonic Blue MetallicChill MetallicDiamond WhiteAvalon MetallicSchool Bus YellowPanther Black MetallicColorado RedWildtrak Orange MicaDeep Impact Blue MetallicDark Blue Pearl

History & notable variants

The Transit Custom was launched in 2012 and underwent a significant update in 2017 with new engines compliant with Euro 6 standards. In 2019, it received an optional mild hybrid system for its EcoBlue engine variants and introduced a plug-in hybrid Tourneo variant.
