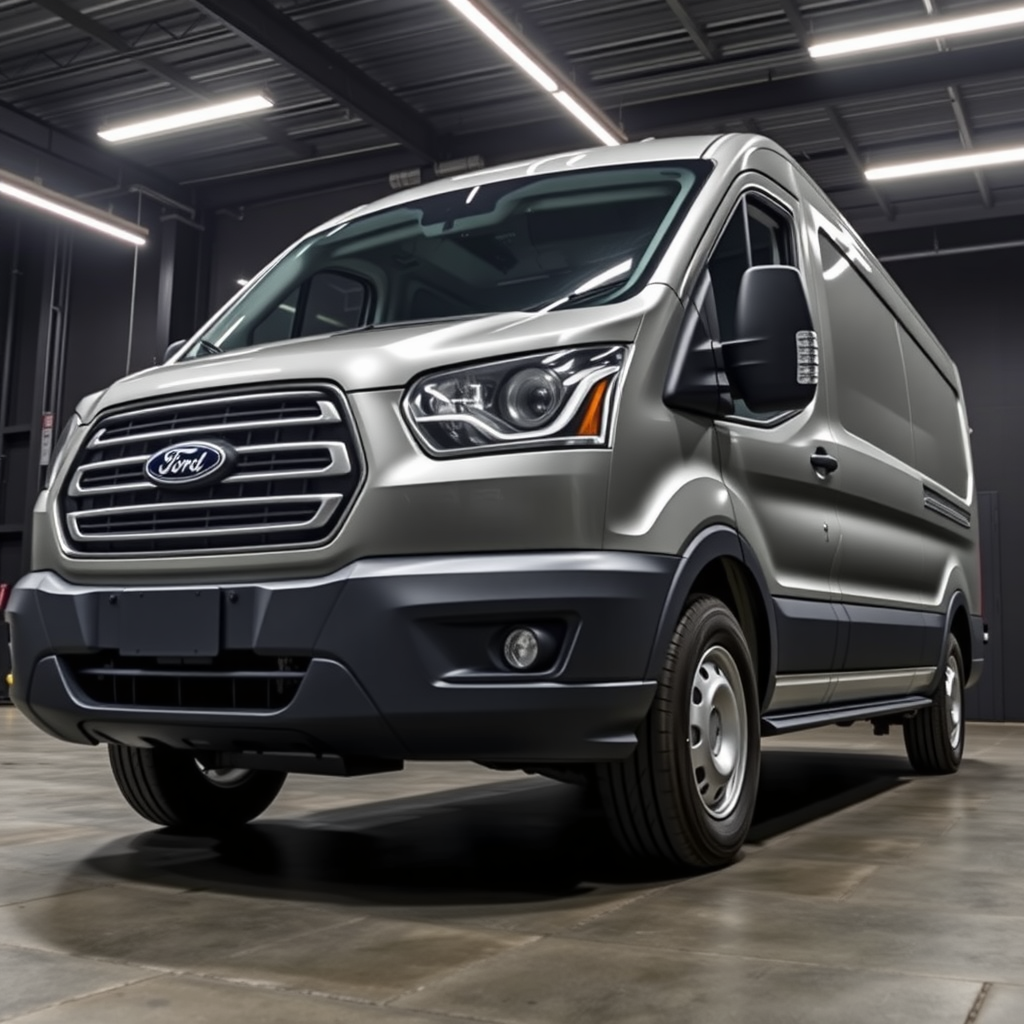

Ford Transit FCD side profile — Ford Transit wheel fitment

Ford Transit wheel fitment — FCD

By Torque, AIWheelTech vehicle & fitment specialist · 2014–2021
Ford Transit wheel fitment in one line: The Ford Transit FCD (2014–2021) uses a 5x160 bolt pattern, 65.1 mm centre bore, M14x1.5 bolts. It accepts ~6.5J–8J wheels at ET44–ET60.

Overview

The Ford Transit is a family of light commercial vehicles manufactured by the Ford Motor Company since 1965. It primarily serves as a cargo van but also comes in various configurations such as passenger vans (Ford Tourneo), minibuses, cutaway chassis, and pickup trucks. The vehicle has been produced across four basic platform generations: 1965, 1986, 2000, and 2013. This specific generation, referred to as the FCD or Ford Transit Custom (for passenger variants), was introduced in North America in 2014 to replace the E-Series van. It quickly became the best-selling van type in the United States, including minivans.

Ford Transit wheel fitment

Everything below is what the fit-check uses for Ford Transit wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the Ford Transit FCD.

Bolt pattern (PCD)5x160
Centre bore65.1 mm
Bolt / threadM14x1.5 (bolts)
Seat typetapered
Factory setupsquare
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–8JET44–ET60

As a rule, each extra 1J of width wants roughly +8 to 10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Ford Transit →Get them fitted (UK)

UK popularity & demand

~2,083 Ford Transit licensed on UK roads — top 24% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 2,083 Ford Transit on UK roads, placing it in the top 24% of car models by volume across our fitment database.

With that many on the road, Ford Transit wheel fitment is a spec fitters see constantly. We keep it current for that reason.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Dimensions

Kerb weight2,021 to 2,661 kg

Source: EU type-approval data (EEA).

Body styles & production

Produced2014–2021

Factory colours

Ocean PearlCafe MetallicFrozen WhiteMoondust Silver MetallicRoyalgrau MetallicSea Grey MetallicSea Gray MetallicBlue Turquoise MetallicSchool Bus YellowVermilionChill MetallicDiamond WhiteAvalon MetallicPanther Black MetallicColorado RedWildtrak Orange MicaDeep Impact Blue MetallicDark Blue PearlMidnight Sky PearlInk Blue Metallic

History & notable variants

The FCD generation of the Ford Transit is notable for its introduction into North American markets and subsequent success there. This model has seen various facelifts (LCIs) but no specific performance or special variants are mentioned within this reference text.
