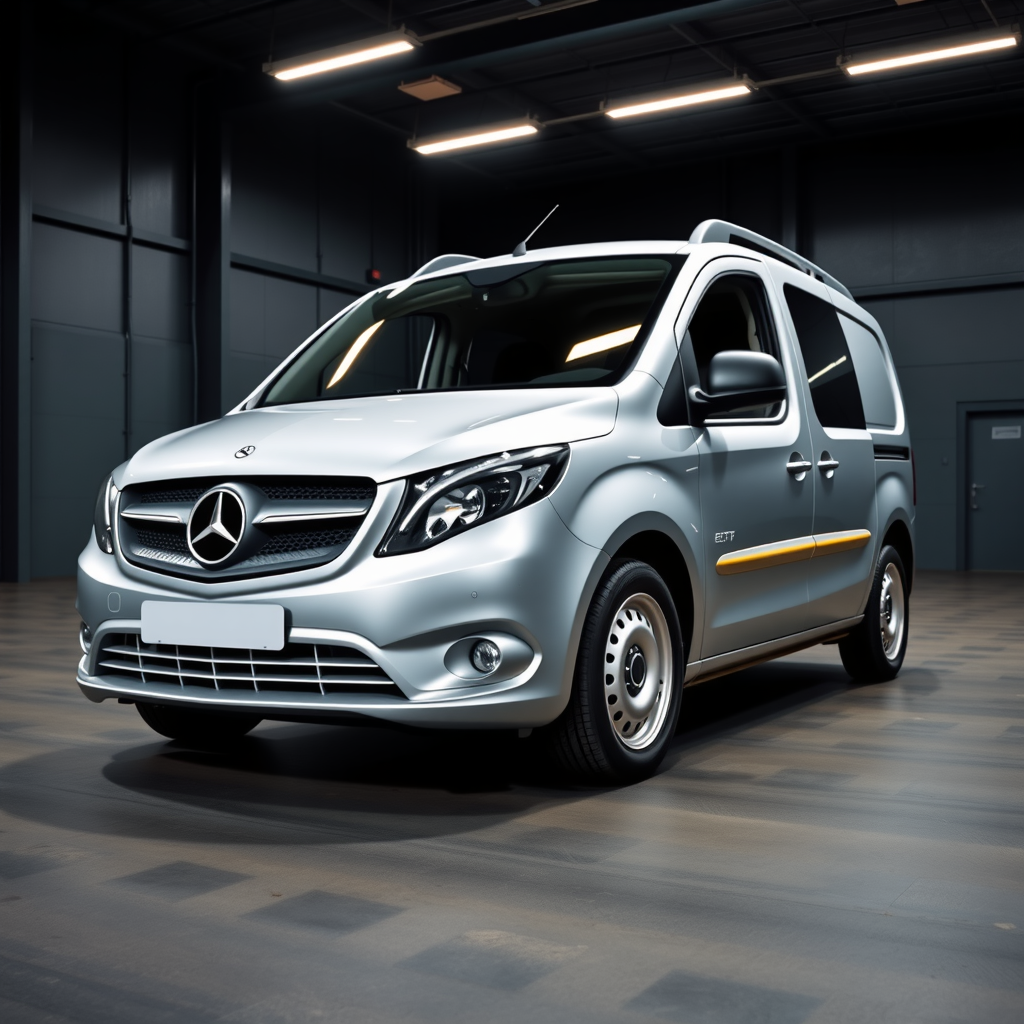

Mercedes Citan / Eqt MFK side profile — Mercedes Citan wheel fitment

Mercedes Citan wheel fitment — / Eqt MFK

By Torque, AIWheelTech vehicle & fitment specialist · 2021–2026
Mercedes Citan wheel fitment at a glance — The Mercedes Citan / Eqt MFK (2021–2026) uses a 5x114.3 bolt pattern, 66.1 mm centre bore, M12x1.5 bolts torqued to ~108 Nm. It accepts ~6J–8.5J wheels at ET25–ET45.

Overview

The second generation of the Mercedes-Benz Citan (W420) was introduced in August 2021 as a panel van and Tourer variant. Based on the third-generation Renault Kangoo, it rides on the CMF-CD platform, which also underpins the T-Class MPV. This model replaces the existing Citan Traveliner and Citan Tourer, offering improved safety features and modern amenities.

Mercedes Citan wheel fitment

Mercedes Citan wheel fitment for the Mercedes Citan / Eqt MFK (2021–2026): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x114.3
Centre bore66.1 mm
Bolt / threadM12x1.5 (bolts)
Wheel-bolt torque108 Nm
Seat typetapered
Factory setupsquare
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6J–8.5JET25–ET45

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Mercedes Citan →Get them fitted (UK)

UK popularity & demand

~915 Mercedes Citan licensed on UK roads — top 31% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 915 Mercedes Citan on UK roads, placing it in the top 31% of car models by volume across our fitment database.

That makes Mercedes Citan wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
1.3 H5Ht/M282 131 PS1.332L H5Ht/M282 I4petrol131 hpFWD
eCitan / EQTElectric motor with 44 kWh batteryelectric121 hpFWD
1.5 OM607 115 PS1.461L K9K/OM607 I4diesel115 hpFWD
1.5 OM607 110 PS1.461L K9K/OM607 I4diesel110 hpFWD
1.3 H5Ht/M282 102 PS1.332L H5Ht/M282 I4petrol102 hpFWD
1.5 OM607 94 PS1.461L K9K/OM607 I4diesel94 hpFWD
1.5 OM607 90 PS1.461L K9K/OM607 I4diesel90 hpFWD
1.5 OM607 80 PS1.461L K9K/OM607 I4diesel80 hpFWD
1.5 OM6071.461L K9K/OM607 I4diesel75 hpFWD

Performance

VariantPower0–62 mphTop speed
eCitan / EQT121 hp7.9 s87 mph

Dimensions

Length3937 mm
Width1829 mm
Height1809 mm
Wheelbase2697 mm
Kerb weight1295 kg

Body styles & production

Body stylesPanel Van, Tourer
Produced2021–2026

Trim levels

not specified

Factory colours

Artikwess SolidAmarenarot Solidbornitrot met.Tintenblau Solidkornelitblau metpfeffergruenkieselgrauDelfingrau SolidBrillantsilber MetallicTenoritgrau MetallicKieselgrau SolidARKTIKWEISSBRILLANTSILBER-MET.TENORITGRAU-MET.GRAUCHESTNUT BRONZE-MET.FIRECRACKER RED

History & notable variants

In March 2024, the second generation of the Mercedes-Benz Citan received a Platinum rating from Euro NCAP due to its advanced active safety systems. The T-Class MPV variant was released in April 2022 with plans for a long-wheelbase version seating seven people. In October 2021, an electric variant, the eCitan, was announced alongside the regular Citan.
