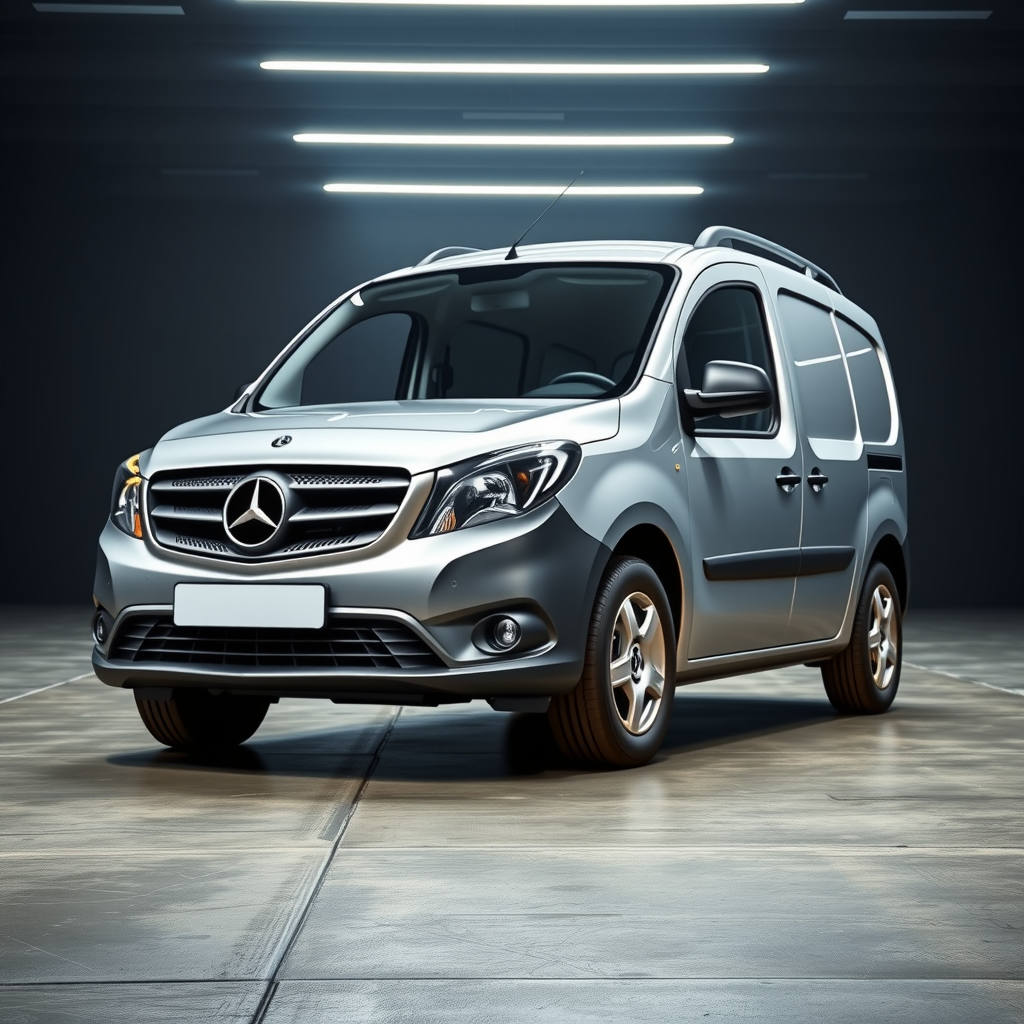

Mercedes Citan Tourer / Eqt MFK side profile — Mercedes Citan wheel fitment

Mercedes Citan wheel fitment — Tourer / Eqt MFK

By Torque, AIWheelTech vehicle & fitment specialist · 2021–2026
Mercedes Citan wheel fitment at a glance — The Mercedes Citan Tourer / Eqt MFK (2021–2026) uses a 5x108 bolt pattern, 60.1 mm centre bore, M12x1.5 bolts torqued to ~108 Nm. It accepts ~6J–8.5J wheels at ET30–ET45.

Overview

The Mercedes-Benz Citan Tourer / Eqt MFK is part of the second generation (W420) introduced in 2021, based on the third-generation Renault Kangoo. It rides on the CMF-CD platform and comes as a panel van and leisure activity vehicle variant, replacing earlier models like the Citan Traveliner and Tourer. The T-Class MPV was also released in April 2022, initially with seats for five people, while a long-wheelbase version seating seven is planned.

Mercedes Citan wheel fitment

Mercedes Citan wheel fitment for the Mercedes Citan Tourer / Eqt MFK (2021–2026): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x108
Centre bore60.1 mm
Bolt / threadM12x1.5 (bolts)
Wheel-bolt torque108 Nm
Seat typetapered
Factory setupsquare
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6J–8.5JET30–ET45

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Mercedes Citan →Get them fitted (UK)

UK popularity & demand

~915 Mercedes Citan licensed on UK roads — top 31% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 915 Mercedes Citan on UK roads, placing it in the top 31% of car models by volume across our fitment database.

That makes Mercedes Citan wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
113Nissan H5Ht/M282 turbo petrolpetrol131 hpFWD
eCitan / EQTelectric motorelectric121 hpFWD
112CDIRenault K9K turbo dieseldiesel116 hpFWD
111 CDIRenault K9K/OM607 turbo dieseldiesel110 hpFWD
112Nissan H5Ht/M282 turbo petrolpetrol102 hpFWD
110CDIRenault K9K turbo dieseldiesel95 hpFWD
109 CDIRenault K9K/OM607 turbo dieseldiesel90 hpFWD
108 CDIRenault K9K/OM607 turbo dieseldiesel75 hpFWD
108CDIRenault K9K turbo dieseldiesel75 hpFWD

Performance

VariantPower0–62 mphTop speed
eCitan / EQT121 hp8.9 s87 mph

Dimensions

Length3937 mm
Width1829 mm
Height1809 mm
Wheelbase2697 mm
Kerb weight1295 kg

Body styles & production

Body stylesPanel Van, Tourer
Produced2021–2026

Trim levels

TourerT-Class

Factory colours

Artikwess SolidAmarenarot Solidbornitrot met.Tintenblau Solidkornelitblau metpfeffergruenkieselgrauDelfingrau SolidBrillantsilber MetallicTenoritgrau MetallicKieselgrau SolidARKTIKWEISSBRILLANTSILBER-MET.TENORITGRAU-MET.GRAUCHESTNUT BRONZE-MET.FIRECRACKER RED

History & notable variants

In March 2024, the Citan van received a Platinum rating from Euro NCAP due to its advanced active safety systems. The electric variants eCitan and EQT were announced in October 2021 alongside the regular model, with availability starting mid-2022 for the eCitan and December 2022 for the EQT.
