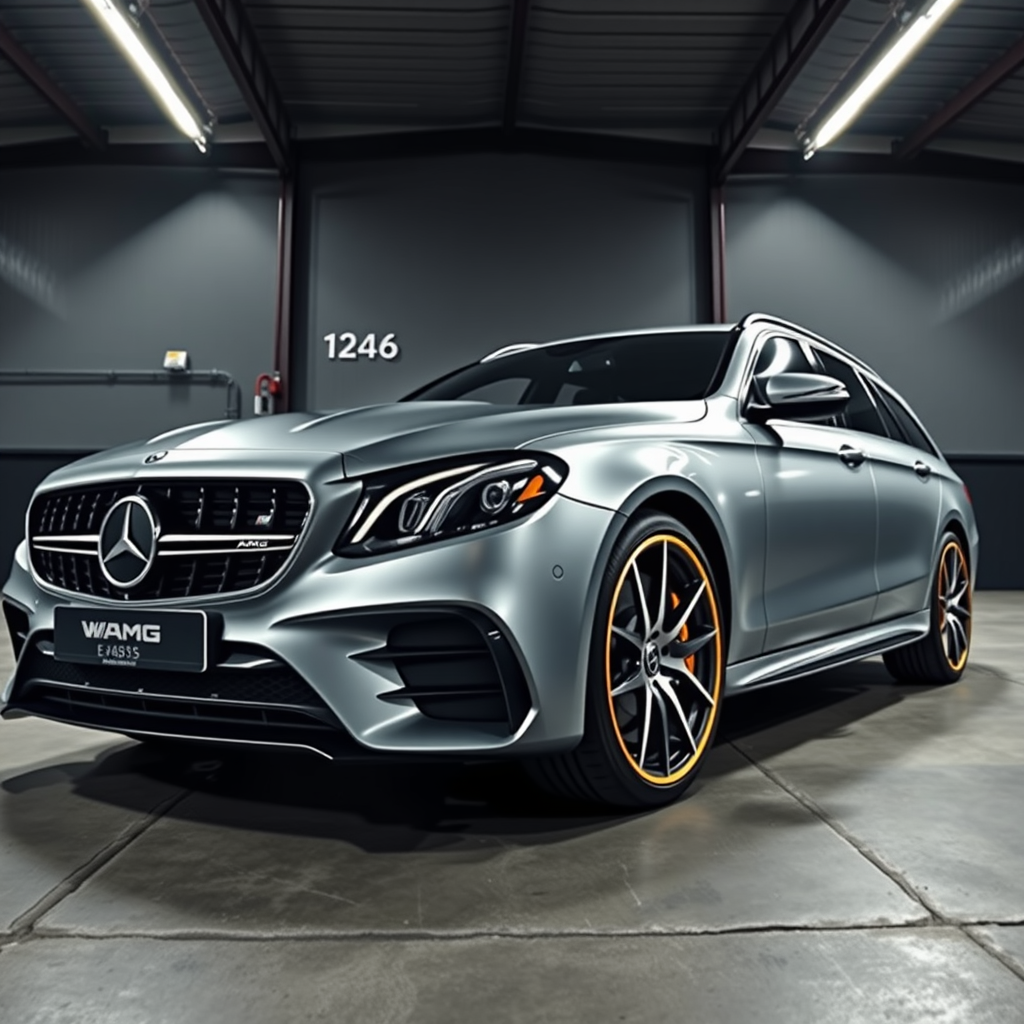

Mercedes E 63/63s Amg T-Modell R1ES side profile — Mercedes E Class AMG wheel fitment

Mercedes E Class AMG wheel fitment — 63/63s T-Modell R1ES

By Torque, AIWheelTech vehicle & fitment specialist · 2017–2018
The Mercedes E 63/63s Amg T-Modell R1ES (2017–2018) uses a 5x112 bolt pattern, 66.6 mm centre bore, M14x1.5 bolts torqued to ~120 Nm. It accepts ~9.5J–10J wheels at ET18–ET25 front; staggered setups run 9.5J–11J rear (ET40–ET55). That is the short version of Mercedes E Class AMG wheel fitment; the full picture is below.

Overview

The Mercedes-Benz E-Class is a range of executive cars manufactured by German automaker Mercedes-Benz in various engine and body configurations. Produced since September 1953, the E-Class falls as a midrange in the Mercedes line-up, and has been marketed worldwide across five generations. The latest incarnation of the E-Class released for the 2017 model year uses the W213 platform, offering either rear-wheel drive or Mercedes' 4Matic four-wheel drive system.

History & notable variants

The 'E-Class' nomenclature was adopted in July 1993 for the second facelift of the Mercedes-Benz W124. The current generation (W213) has seen notable development and performance variants such as AMG models, including the E63/63s AMG.

Mercedes E Class AMG wheel fitment

Everything below is what the fit-check uses for Mercedes E Class AMG wheel fitment: the factory bolt spec first, then the width and offset window that clears the arches and the brakes on the Mercedes E 63/63s Amg T-Modell R1ES.

Bolt pattern (PCD)5x112
Centre bore66.6 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque120 Nm
Seat typeradius
Factory setupstaggered
TPMSdirect
Run-flatYes

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front9.5J–10JET18–ET25
Rear (staggered)9.5J–11JET40–ET55

Width and offset move together: roughly 8 to 10 ET more for every extra 1J keeps the wheel inside the arch. Final offset and any spacer come from the fit-check.

Browse wheels that fit a Mercedes E Class AMG →Get them fitted (UK)

UK popularity & demand

~210,627 Mercedes E Class AMG range licensed on UK roads — top 2% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 210,627 Mercedes E Class AMG range on UK roads, placing it in the top 2% of car models by volume across our fitment database.

With that many on the road, Mercedes E Class AMG wheel fitment is a spec fitters see constantly. We keep it current for that reason.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Dimensions

Kerb weight1,705 to 2,215 kg

Source: EU type-approval data (EEA).

Body styles & production

Produced2017–2018

Factory colours

Obsidian Black MetallicMystic Blue PearlDesigno Mocha Black MetallicDesigno Mystic Red MetallicDesigno Graphite Green MetallicMagno Allanitgrau Metallic MatteDesigno Platinum Black MetallicMagno Kaschmirweiss Metallic MattePlatin Metallic MatteDesigno Mysticbraun MetallicDesigno Nachtschwarz Metallic MatteDesigno Mondsteinweiss MetallicPolar WhiteArgonitsilver MetallicJade Green MetallicCapri Blue MetallicFlint Gray MetallicBlack, Deep Black, TiefschwarzCuprit Brown MetallicCovellinblau Metallic

Trim levels

E 63 AMGE 63s AMG
