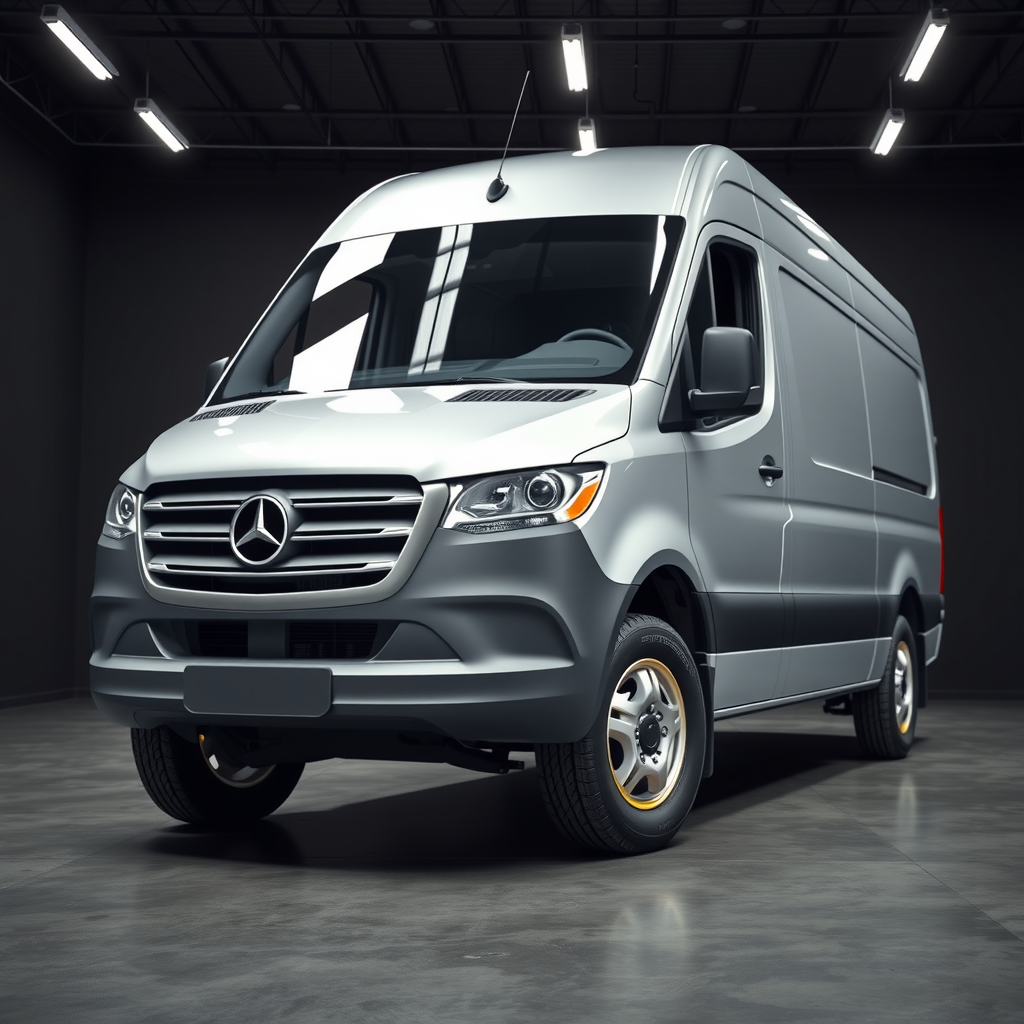

Mercedes Sprinter (3) KL3A5 side profile — Mercedes Sprinter wheel fitment

Mercedes Sprinter wheel fitment — 3 KL3A5

By Torque, AIWheelTech vehicle & fitment specialist · 2018–2026
Mercedes Sprinter wheel fitment at a glance — The Mercedes Sprinter (3) KL3A5 (2018–2026) uses a 6x130 bolt pattern, 84.1 mm centre bore, M14x1.5 bolts torqued to ~160 Nm. It accepts ~6.5J–8.5J wheels at ET16–ET60.

Overview

The Mercedes-Benz Sprinter (3rd generation, KL3A5) is a light commercial vehicle built by Mercedes-Benz Group AG in Stuttgart, Germany. It serves as the largest model in the Mercedes-Benz van lineup, following the Vito and Citan. This generation was introduced in 2019 to replace the second-generation model. The Sprinter is manufactured at various plants globally, including Düsseldorf and Ludwigsfelde in Germany, Tiaret in Algeria, Amman in Jordan, Buenos Aires in Argentina, Charleston in South Carolina (USA), Tai'an and Fúzhōu in China, Tehran in Iran, and Nizhny Novgorod in Russia. The third generation features a new platform with improved aerodynamics, enhanced safety systems, and updated styling compared to its predecessor.

Mercedes Sprinter wheel fitment

Mercedes Sprinter wheel fitment for the Mercedes Sprinter (3) KL3A5 (2018–2026): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)6x130
Centre bore84.1 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque160 Nm
Seat typeradius
Factory setupsquare
TPMSnone

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–8.5JET16–ET60

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Mercedes Sprinter →Get them fitted (UK)

UK popularity & demand

~1,898 Mercedes Sprinter licensed on UK roads — top 25% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 1,898 Mercedes Sprinter on UK roads, placing it in the top 25% of car models by volume across our fitment database.

That makes Mercedes Sprinter wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
214M111 inline-four 16V DOHCpetrol143 hpRWD
314M111 inline-four 16V DOHCpetrol143 hpRWD
414M111 inline-four 16V DOHCpetrol143 hpRWD
212 DOM602 inline-five 10V OHCdiesel129 hpRWD
312 DOM602 inline-five 10V OHCdiesel129 hpRWD
412 DOM602 inline-five 10V OHCdiesel129 hpRWD
210 DOM602 inline-five 10V OHCdiesel102 hpRWD
310 DOM602 inline-five 10V OHCdiesel102 hpRWD
410 DOM602 inline-five 10V OHCdiesel102 hpRWD
208 DOM601 inline-four 8V SOHCdiesel79 hpRWD
308 DOM601 inline-four 8V SOHCdiesel79 hpRWD
408 DOM601 inline-four 8V SOHCdiesel79 hpRWD

Dimensions

Length5425 mm
Height2435 mm

Body styles & production

Body stylesVan, Crew Van, Passenger Van, Minibus
Produced2018–2026

Trim levels

KL3A5

Factory colours

Obsidian Black MetallicGray WhiteVerkehrsrotArktikweiss , Arctic WhiteStone GrayGinstergelbGraphite Gray , Graphite GreyCalcite Yellow , CalcitgelbGelboliv MatteTannengruenBrilliant BlueFlint Gray MetallicVeilchenblau MetallicSteel Blue , StahlblauBlack , Deep Black , TiefschwarzFlame Red , AbendrotSandgelbBlack Blue , SchwarzblauFeuerrotVelvetrot , Velvet Red

History & notable variants

The third-generation Sprinter was unveiled as the successor to the second-generation model which had been on sale since 2006. It received an update in 2013 before transitioning into this latest generation. Notable changes include a new radiator grille design, improved driver assistance systems such as crosswind stabilization and collision avoidance, Euro VI emissions compliance, and enhanced interior comfort features.

Reliability & owner notes
