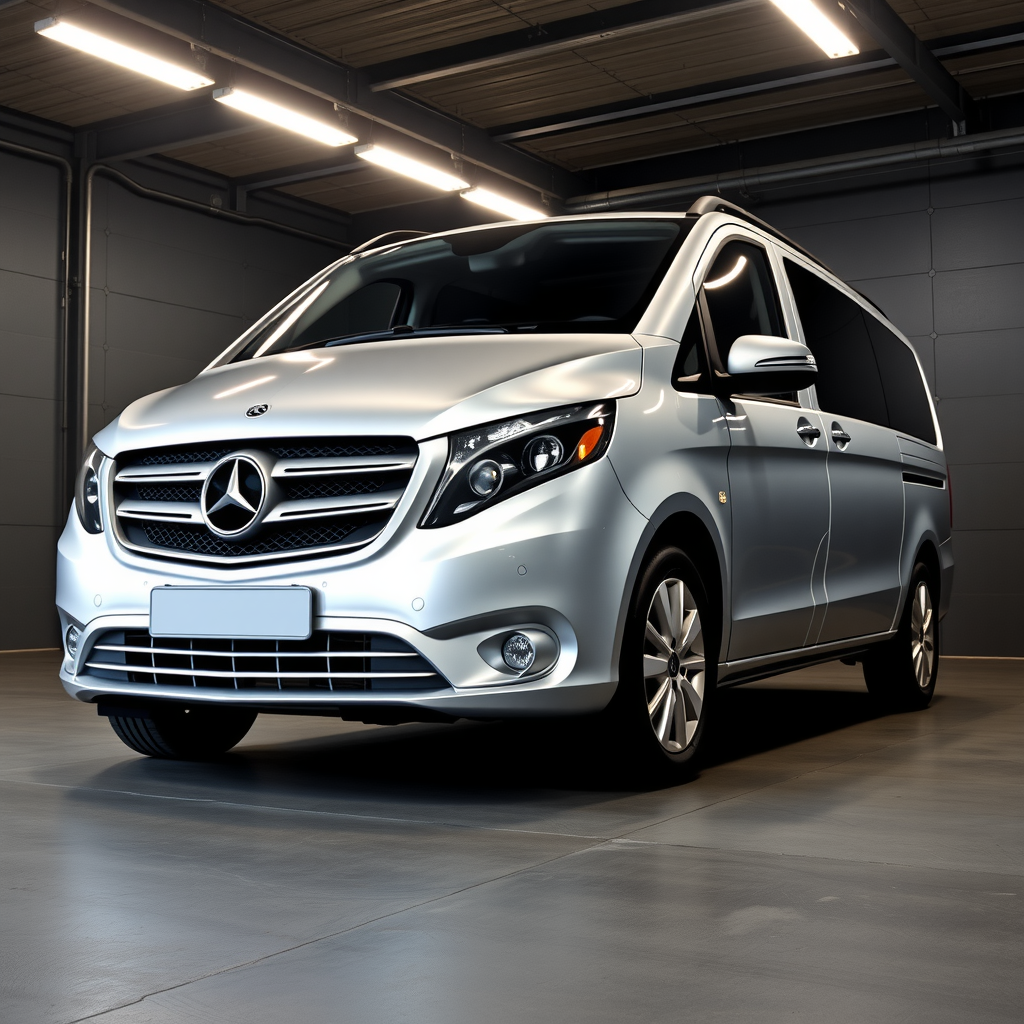

Mercedes V-Class/Vito (Iii) W639 side profile — Mercedes V Class (Vito) wheel fitment

Mercedes V Class (Vito) wheel fitment — V-Class/Vito Iii W639

By Torque, AIWheelTech vehicle & fitment specialist · 1995–present
Mercedes V Class (Vito) wheel fitment at a glance — The Mercedes V-Class/Vito (Iii) W639 (1995–present) uses a 5x112 bolt pattern, 66.6 mm centre bore, M14x1.5 bolts torqued to ~130 Nm. It accepts ~6.5J–9J wheels at ET8–ET65.

Overview

The Mercedes-Benz V-Class (W639) is a mid-sized light commercial vehicle available as a panel van or multi-purpose vehicle (MPV). Positioned between the larger Sprinter and smaller Citan in the Mercedes lineup, it offers cargo space or up to eight passenger seats. The third generation of this model was launched in 2014 and returned to being called V-Class after a facelift in 2010 that updated its front and rear bumpers and lights along with interior improvements.

Mercedes V Class (Vito) wheel fitment

Mercedes V Class (Vito) wheel fitment for the Mercedes V-Class/Vito (Iii) W639 (1995–present): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x112
Centre bore66.6 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque130 Nm
Seat typeradius
Factory setupsquare
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–9JET8–ET65

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Mercedes V Class (Vito) →Get them fitted (UK)

UK popularity & demand

~12,773 Mercedes V Class (Vito) range licensed on UK roads — top 13% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 12,773 Mercedes V Class (Vito) range on UK roads, placing it in the top 13% of car models by volume across our fitment database.

That makes Mercedes V Class (Vito) wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
Viano 3.0 CDI TouchShift3.0 L, 6 in-V OM642diesel204 hpRWD
Vito 120 CDI3.0 L, 6 in-V OM642diesel204 hpRWD
Vito 2.5L Service2.5 L, V6 M272 E25diesel184 hpRWD
Vito 2.5L Elite2.5 L, V6 M272 E25diesel184 hpRWD
Vito 119 CDI2.5 L, V6 M272 E25diesel184 hpRWD
Vito 3.0L Business3.0 L, V6 OM642diesel177 hpRWD
Vito 3.0L Service3.0 L, V6 OM642diesel177 hpRWD
Vito 3.0 CDI3.0 L, V6 OM642diesel177 hpRWD
Viano 2.2 CDI2.2 L, 4 in-L OM646 DE22 LA Rdiesel150 hpRWD
Viano 2.2 CDI TouchShift2.2 L, 4 in-L OM646 DE22 LA Rdiesel150 hpRWD
Vito 115 CDI2.2 L, 4 in-L OM646 DE22 LA Rdiesel150 hpRWD
Viano 2.0 CDI (updated)2.2 L, 4 in-L OM646 DE22 LA Rdiesel116 hpRWD
Viano 2.0 CDI TouchShift (updated)2.2 L, 4 in-L OM646 DE22 LA Rdiesel116 hpRWD
Viano 2.0 CDI TouchShift2.2 L, 4 in-L OM646 DE22 LA Rdiesel109 hpRWD
Viano 2.0 CDI2.2 L, 4 in-L OM646 DE22 LA Rdiesel109 hpRWD
Vito 112 CDI2.2 L, 4 in-L OM611 DE22 LA red.diesel90 hpRWD
Vito 110 CDI2.2 L, 4 in-L OM611 DE22 LA red.diesel75 hpRWD
Vito 108 CDI2.2 L, 4 in-L OM611 DE22 LA red.diesel60 hpRWD

Performance

VariantPower0–62 mphTop speed
Viano 2.0 CDI109 hp17.6 s99 mph
Viano 2.0 CDI TouchShift109 hp17.3 s98 mph
Viano 2.0 CDI (updated)116 hp17.6 s99 mph
Viano 2.0 CDI TouchShift (updated)116 hp17.3 s98 mph
Viano 2.2 CDI150 hp14.9 s112 mph
Viano 2.2 CDI TouchShift150 hp13 s111 mph
Viano 3.0 CDI TouchShift204 hp9.2 s123 mph

Dimensions

Length4895 mm
Width1903 mm
Height1876 mm
Wheelbase3200 mm
Kerb weight2040 kg

Body styles & production

Body stylesVan, MPV
Produced1995–present

Trim levels

ExclusiveAMG Line

Factory colours

Schwarz SolidRavennagelb SolidCalcitgelb SolidMellitgelb Solidbergkristallweiss metArtikwess SolidCarbonschwarz MetallicstrassengelbObsidianschwarz Metallic

History & notable variants

In 2010, the second-generation Vito/Viano underwent a mid-cycle refresh (facelift) which included revised exterior styling and enhanced interiors. The third generation was introduced in 2014 as the Mercedes-Benz V-Class, featuring updated design elements and improved technology. Notable variants include the Marco Polo campervan and Metris for North American markets.
