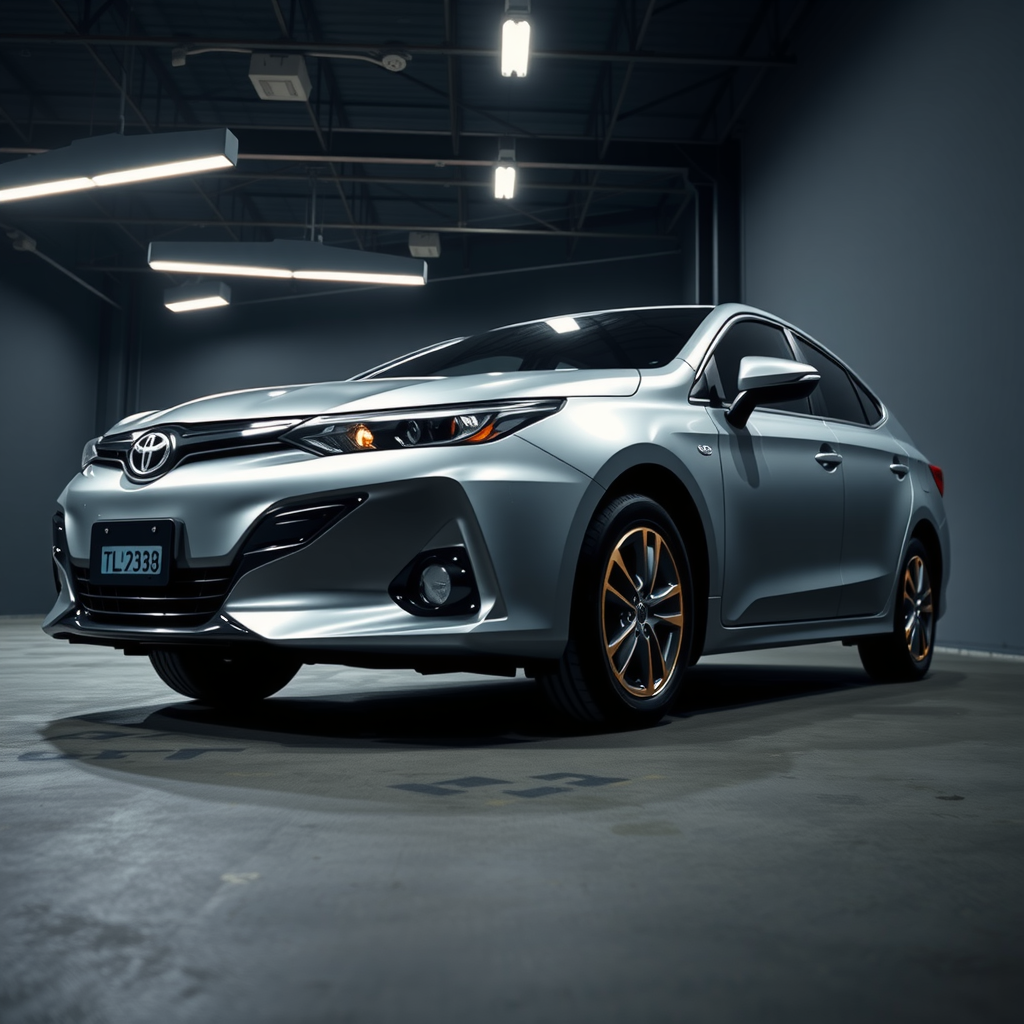

Toyota Avensis T270 Facelift side profile — Toyota Avensis wheel fitment

Toyota Avensis wheel fitment — T270 Facelift

By Torque, AIWheelTech vehicle & fitment specialist · 1997–2018
Toyota Avensis wheel fitment at a glance: The Toyota Avensis T270 Facelift (1997–2018) uses a 5x114.3 bolt pattern, 60.1 mm centre bore, M12x1.5 nuts torqued to ~103 Nm. It accepts ~6.5J–8.5J wheels at ET30–ET45.

Overview

The third generation Toyota Avensis (T270) was introduced in January 2009, built at the Burnaston plant in Derbyshire, England. Available only as a saloon or estate variant, it aimed to offer sporty handling and comfort with front MacPherson struts and rear double wishbones. The car featured advanced safety technologies like seven airbags, adaptive cruise control, and Toyota Safety Sense. It was discontinued across Europe by late 2018.

Toyota Avensis wheel fitment

Start with the hub. The Toyota Avensis T270 Facelift spec table gives the bolt pattern and bore; the second table is the aftermarket window for Toyota Avensis wheel fitment.

Bolt pattern (PCD)5x114.3
Centre bore60.1 mm
Bolt / threadM12x1.5 (nuts)
Wheel-bolt torque103 Nm
Seat typeflat
Factory setupsquare
Brakese11*2001/116*0196*.
TPMSdirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–8.5JET30–ET45

Width and offset move together: roughly 8 to 10 ET more for every extra 1J keeps the wheel inside the arch. Final offset and any spacer come from the fit-check.

Browse wheels that fit a Toyota Avensis →Get them fitted (UK)

UK popularity & demand

~53,884 Toyota Avensis licensed on UK roads — top 6% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 53,884 Toyota Avensis on UK roads, placing it in the top 6% of car models by volume across our fitment database.

A parc that size is why Toyota Avensis wheel fitment is worth getting exactly right: a lot of owners are shopping for these numbers.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive, years
1.6 L 1ZR-FAE Valvematic I4petrol
1.8 L 2ZR-FAE Valvematic I4petrol
2.0 L 3ZR-FAE Valvematic I4petrol
1.6 L 1WW D-4D I4-Tdiesel
2.0 L 2WW D-4D I4-Tdiesel
2.0 L D-4D 1AD-FTV I4-Tdiesel
2.2 L D-4D 2AD-FTV I4-Tdiesel
2.2 L D-CAT 2AD-FHV I4-Tdiesel

Source: Toyota Avensis, en.wikipedia.org.

Dimensions

Length4,695 to 4,780 mm
Width1,810 mm
Height1,480 mm
Wheelbase2,700 mm

Source: Toyota Avensis, en.wikipedia.org.

Body styles & production

Body styles4-door saloon, 5-door estate
Produced1997–2018

Trim levels

ZRZS

Factory colours

DECUMA GREY-MET.WHITE CRYSTAL SHINE/CRYSTAL PEARL-MET.CIRRUS WHITESILVER-MET.SILVER PEARL-MET.AVANT GARDE BRONZE-MET.

History & notable variants

The T270 generation received two facelifts: the first in January 2012 with revised front grille and tail lamps, and a second in March 2015 at Geneva Motor Show featuring new engines and interior design. It won Euro NCAP's five-star rating for safety.

Reliability & owner notes
