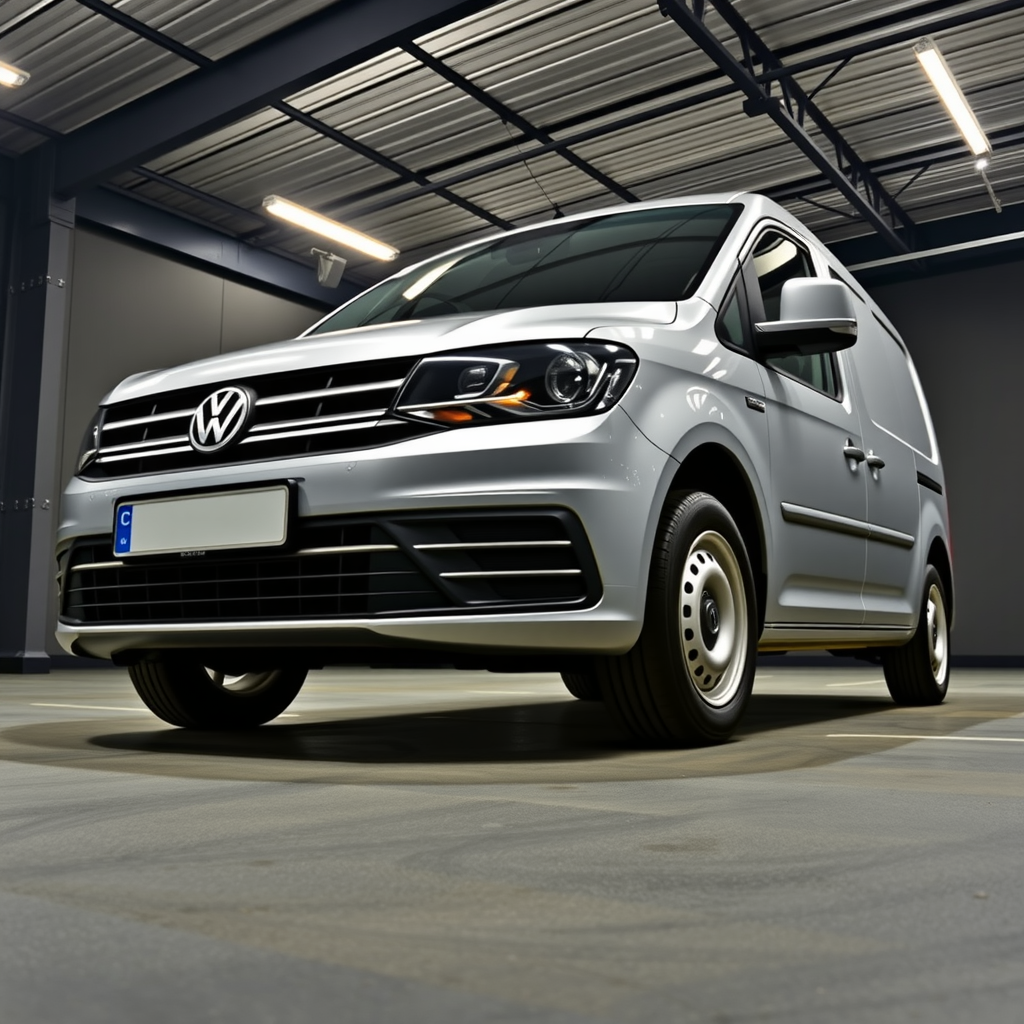

Volkswagen Caddy (Iii) 2K, 2KN side profile — Volkswagen Caddy wheel fitment

Volkswagen Caddy wheel fitment — Iii 2K, 2KN

By Torque, AIWheelTech vehicle & fitment specialist · 1979–present
Volkswagen Caddy wheel fitment at a glance — The Volkswagen Caddy (Iii) 2K, 2KN (1979–present) uses a 5x112 bolt pattern, 57.1 mm centre bore, M14x1.5 bolts torqued to ~120 Nm. It accepts ~6J–8.5J wheels at ET12–ET50.

Overview

The Volkswagen Caddy III, also known as Typ 2K, is a leisure activity vehicle and panel van produced by the German automaker Volkswagen Group since October 2003. It was unveiled at the RAI Commercial Vehicle Show in Amsterdam and went into production shortly after in November of the same year. The third generation Caddy shares 50% of its modules with the Volkswagen Golf Mk5 and Touran, featuring a more aerodynamic design with a horizontal windscreen angle and A-pillar. Available in two body sizes ('normal' and Maxi), it can be configured as Panel Van, Window Panel Van, Kombi (spartan passenger version), Caddy Life (family version), and the Camping variant called Caddy Tramper or Caddy Life Camper. The Caddy III is marketed for its versatility in both commercial and leisure activities, offering a range of configurations to suit various needs.

Volkswagen Caddy wheel fitment

Volkswagen Caddy wheel fitment for the Volkswagen Caddy (Iii) 2K, 2KN (1979–present): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x112
Centre bore57.1 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque120 Nm
Seat typeradius
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6J–8.5JET12–ET50

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Volkswagen Caddy →Get them fitted (UK)

UK popularity & demand

~10,421 Volkswagen Caddy licensed on UK roads — top 14% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 10,421 Volkswagen Caddy on UK roads, placing it in the top 14% of car models by volume across our fitment database.

That makes Volkswagen Caddy wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
1.9 TDI1.9L I4 SOHC 8vdiesel90 hpFWD
1.6 MPI1.6L I4 SOHC 8vpetrol70 hpFWD
1.9 SDI1.9L I4 SOHC 8vdiesel63 hpFWD
1.7 SDI1.7L I4 SOHC 8vdiesel56 hpFWD

Performance

VariantPower0–62 mphTop speed
1.6 MPI70 hp16.6 s95 mph
1.9 TDI90 hp14.4 s101 mph
1.9 SDI63 hp20.1 s95 mph

Dimensions

Length4380 mm
Width1640 mm
Height1490 mm
Wheelbase2625 mm
Kerb weight1000 kg

Body styles & production

Body stylesPanel Van, Window Panel Van, Kombi (spartan passenger version), Caddy Life (family version), Caddy Maxi
Produced1979–present

Trim levels

Caddy LifeCaddy Maxi

Factory colours

Schwarz SolidMojawebeige Met.Surfblau SolidSteinblau SolidDeep Black MetallicAcapulcoblau MetStarlight Blue MetMerlin Perleff.Kirschrot SolidToffee Braun MetallicReflexsilber-Met.Deepblack-Met.CandyweissShadow Blue-Met.Pure GreyBlack Magic-Met.

History & notable variants

The third generation Volkswagen Caddy was introduced at the RAI Commercial Vehicle Show in Amsterdam in October 2003, marking a significant evolution from previous models with enhanced aerodynamics and modular design elements shared with other VW Group vehicles. Notable for its flexibility, it includes variants such as the Caddy Life (a seven-seat passenger-oriented People Mover) and the Maxi range which debuted at the Frankfurt Motor Show in 2007. The model has received several awards including Professional Van and Light Truck Magazine's Small Van of the Year in both 2007 and 2008, highlighting its success in fleet applications.
