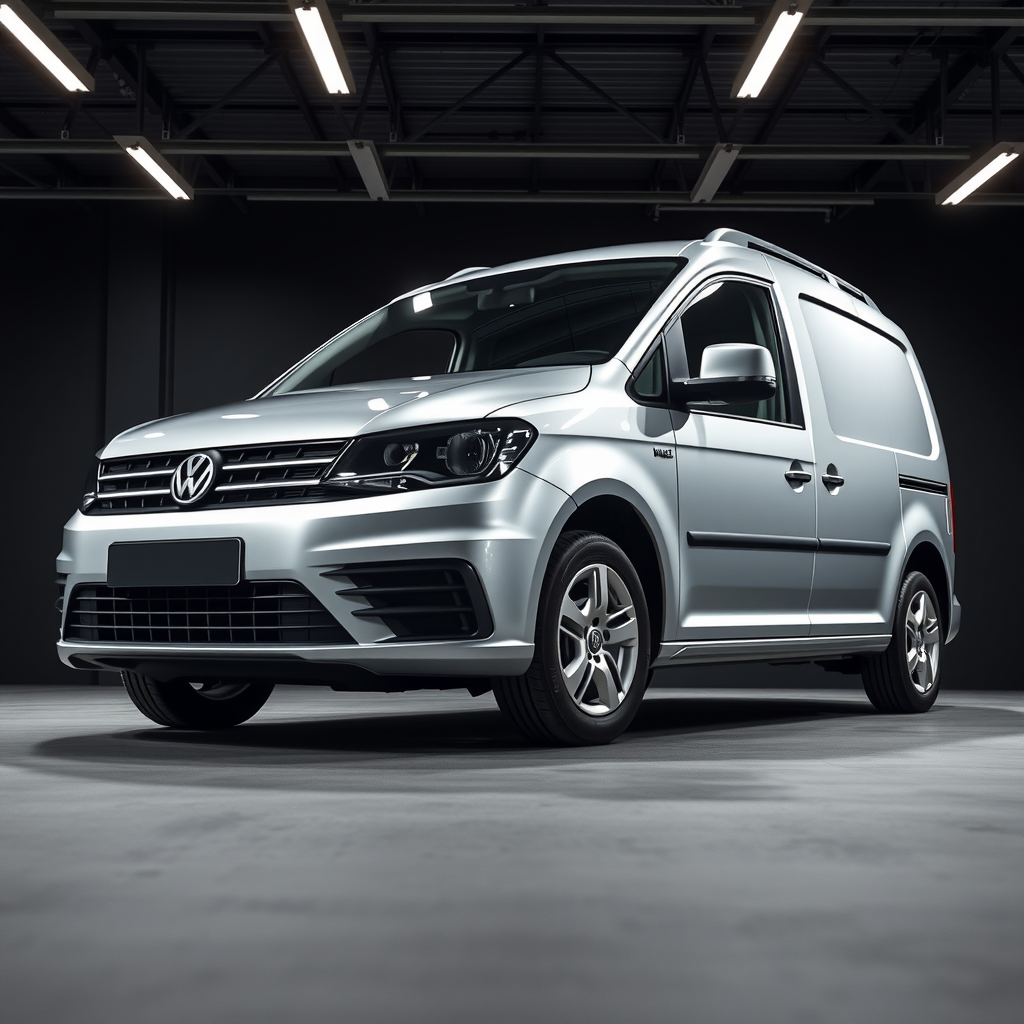

Volkswagen Caddy (V) SK side profile — Volkswagen Caddy wheel fitment

Volkswagen Caddy wheel fitment — V SK

By Torque, AIWheelTech vehicle & fitment specialist · 2020–2026
Volkswagen Caddy wheel fitment at a glance — The Volkswagen Caddy (V) SK (2020–2026) uses a 5x112 bolt pattern, 57.1 mm centre bore, M14x1.5 bolts torqued to ~120 Nm. It accepts ~6J–8.5J wheels at ET5–ET50.

Overview

The Volkswagen Caddy is a leisure activity vehicle and panel van produced by the German automaker Volkswagen Group since 1979, sold in Europe and other markets around the world. The first generation (Typ 14) was based on the Volkswagen Group A1 platform shared with the Golf Mk1 and featured coupe utility and van body styles. It was introduced as the Rabbit Pickup in North America from 1978 to 1984, while the Caddy nameplate debuted in Europe in 1982. The second generation (Typ 9K/9U) was derived from the SEAT Ibiza platform and offered improved safety features such as driver airbags and ABS. The third generation (Typ 2K), introduced in 2003, shares modules with the Golf Mk5 and Touran, offering a more aerodynamic design and various body styles including Panel Van, Window Panel Van, Kombi, Caddy Life, and Caddy Tramper.

Volkswagen Caddy wheel fitment

Volkswagen Caddy wheel fitment for the Volkswagen Caddy (V) SK (2020–2026): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x112
Centre bore57.1 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque120 Nm
Seat typeradius
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6J–8.5JET5–ET50

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Volkswagen Caddy →Get them fitted (UK)

UK popularity & demand

~10,421 Volkswagen Caddy licensed on UK roads — top 14% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 10,421 Volkswagen Caddy on UK roads, placing it in the top 14% of car models by volume across our fitment database.

That makes Volkswagen Caddy wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
1.9 TDI1.9L I4 SOHC 8vdiesel88 hpFWD
1.6 MPI1.6L I4 SOHC 8vpetrol73 hpFWD
1.6 SPI1.6L I4 SOHC 8vpetrol70 hpFWD
1.9 D1.9L I4 SOHC 8vdiesel63 hpFWD
1.9 SDI1.9L I4 SOHC 8vdiesel61 hpFWD
1.4 MPI1.4L I4 SOHC 8vpetrol55 hpFWD

Performance

VariantPower0–62 mphTop speed
1.4 MPI55 hp14.9 s94 mph
1.6 SPI70 hp17.5 s95 mph
1.9 SDI61 hp20.1 s90 mph
1.9 TDI88 hp14.4 s101 mph
1.6 MPI73 hp12.5 s99 mph
1.9 D63 hp16.5 s93 mph

Dimensions

Length4380 mm
Width1640 mm
Height1490 mm
Wheelbase2625 mm
Kerb weight1000 kg

Body styles & production

Body stylesPanel Van, Window Panel Van, Kombi, Caddy Life, Caddy Tramper
Produced2020–2026

Trim levels

Caddy LifeKombiPanel Van

Factory colours

Schwarz SolidMojawebeige met.Surfblau SolidSteinblau SolidDeep Black MetallicAcapulcoblau metStarlight blue metMerlin perleff.Kirschrot SolidToffee Braun MetallicReflexsilber-met.Deepblack-met.CandyweissShadow Blue-met.Pure GreyBlack Magic-met.

History & notable variants

The third generation of Volkswagen Caddy debuted at the RAI Commercial Vehicle Show in Amsterdam in October 2003. It was built on a platform shared with the Golf Mk5 and Touran, featuring a more aerodynamic design compared to its predecessor. The model has been well-received, winning awards such as Professional Van and Light Truck Magazine's Small Van of the Year (UK) in both 2007 and 2008.
