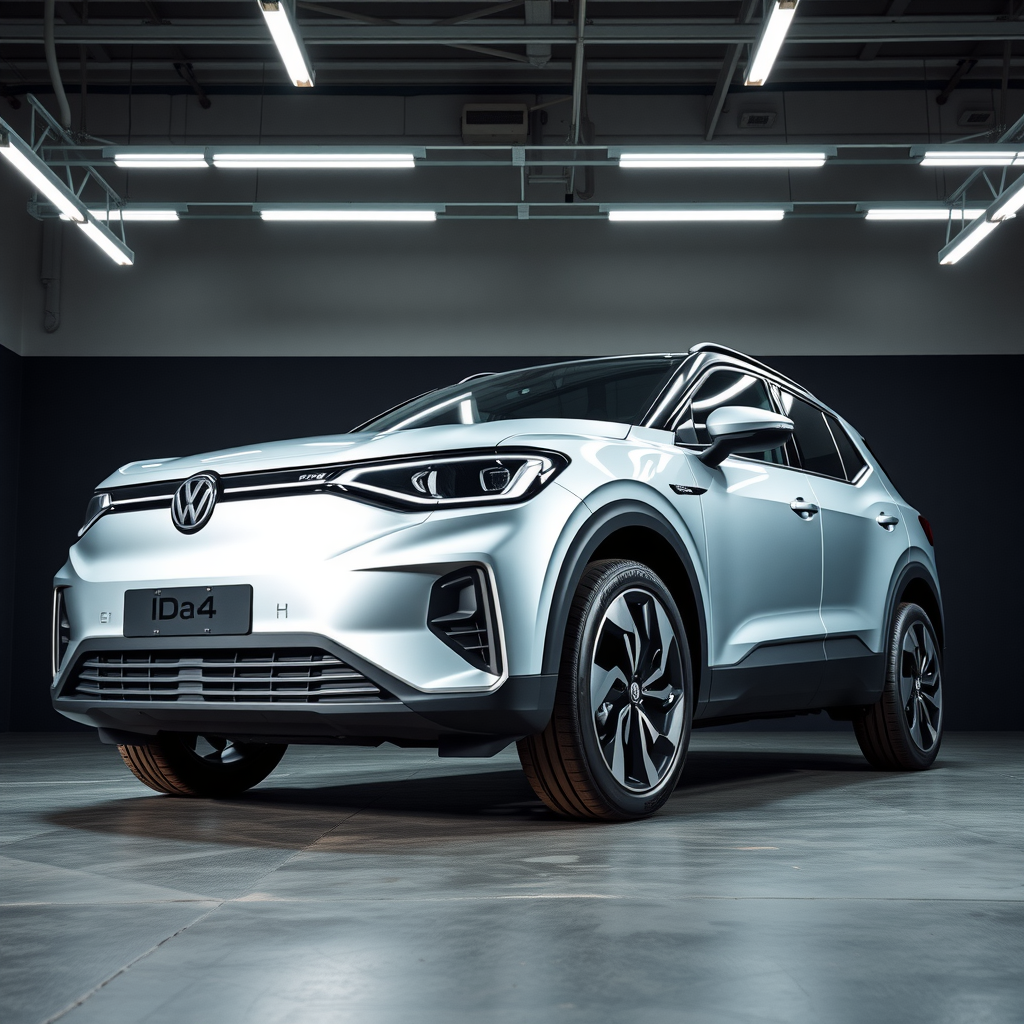

Volkswagen Id.4 Pro / Gtx E2 side profile — Volkswagen ID.4 wheel fitment

Volkswagen ID.4 wheel fitment — Pro / Gtx E2

By Torque, AIWheelTech vehicle & fitment specialist · 2020–present
Volkswagen ID.4 wheel fitment at a glance — The Volkswagen Id.4 Pro / Gtx E2 (2020–present) uses a 5x112 bolt pattern, 57.1 mm centre bore, M14x1.5 bolts torqued to ~120 Nm. It accepts ~8J–10J wheels at ET30–ET45.

Overview

The Volkswagen ID.4 and ID.5 are battery electric compact crossover SUVs produced by Volkswagen based on the MEB platform, introduced in September 2020 as the first fully-electric crossover SUV under the Volkswagen brand for Europe and North America. The coupe-shaped variant of the ID.4 is marketed as the Volkswagen ID.5 and was presented in November 2021. Positioned as a high-volume mass-market electric vehicle, it targets 'the millions, not the millionaires.' Production began at the Zwickau-Mosel Plant in Germany with assembly also taking place in Emden since May 2022 and Chattanooga, Tennessee from July 2022 to April 2026.

Volkswagen ID.4 wheel fitment

Volkswagen ID.4 wheel fitment for the Volkswagen Id.4 Pro / Gtx E2 (2020–present): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x112
Centre bore57.1 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque120 Nm
Seat typeradius
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front8J–10JET30–ET45

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Volkswagen ID.4 →Get them fitted (UK)

Engines & drivetrain

VariantEngineFuelPowerDrive
ID.4 AWD/Pro/Pro S (North America)APP 550 electric drive (since MY 2024)electric335 hpAWD
ID.4 GTX (other markets)APP 550 electric drive (since MY 2024)electric335 hpAWD
ID.5 GTXAPP 550 electric drive (since MY 2024)electric335 hpAWD
ID.4 Pro/Pro Performance/Pro SAPP 550 electric drive (since MY 2024)electric279 hpRWD
ID.4 Standard/ID.4 SAPP 550 electric drive (since MY 2024)electric201 hpRWD
ID.4 Pure/Pure PerformanceAPP 550 electric drive (since MY 2024)electric173 hpRWD
ID.5 Pro/Pro PerformanceAPP 550 electric drive (since MY 2024)electric173 hpRWD

Performance

VariantPower0–62 mphTop speed
ID.4 Pure/Pure Performance173 hp8.9 s100 mph
ID.4 Standard/ID.4 S201 hp7.1 s100 mph
ID.5 Pro/Pro Performance173 hp8.9 s112 mph
ID.4 Pro/Pro Performance/Pro S279 hp5.9 s112 mph
ID.4 AWD/Pro/Pro S (North America)335 hp4.9 s112 mph
ID.4 GTX (other markets)335 hp5.9 s112 mph
ID.5 GTX335 hp5.9 s112 mph

Dimensions

Length4584 mm
Width1852 mm
Height1636 mm
Wheelbase2765 mm
Kerb weight1891 kg

Body styles & production

Body stylesSUV, Coupe SUV
Produced2020–present

Trim levels

ProGTX

Factory colours

Arctic Blue MetallicAurora Red MetallicSilver Mist MetallicTourmaline Blue MetallicDeep Black PearlOpal WhitePure GrayMythos Black

History & notable variants

The ID.4 was elected World Car of the Year 2021 over runner-ups Honda e and Toyota Yaris. For model year 2024, it received an update including a larger 12.9-inch infotainment display with new software and an upgraded APP 550 motor for improved power and efficiency.
