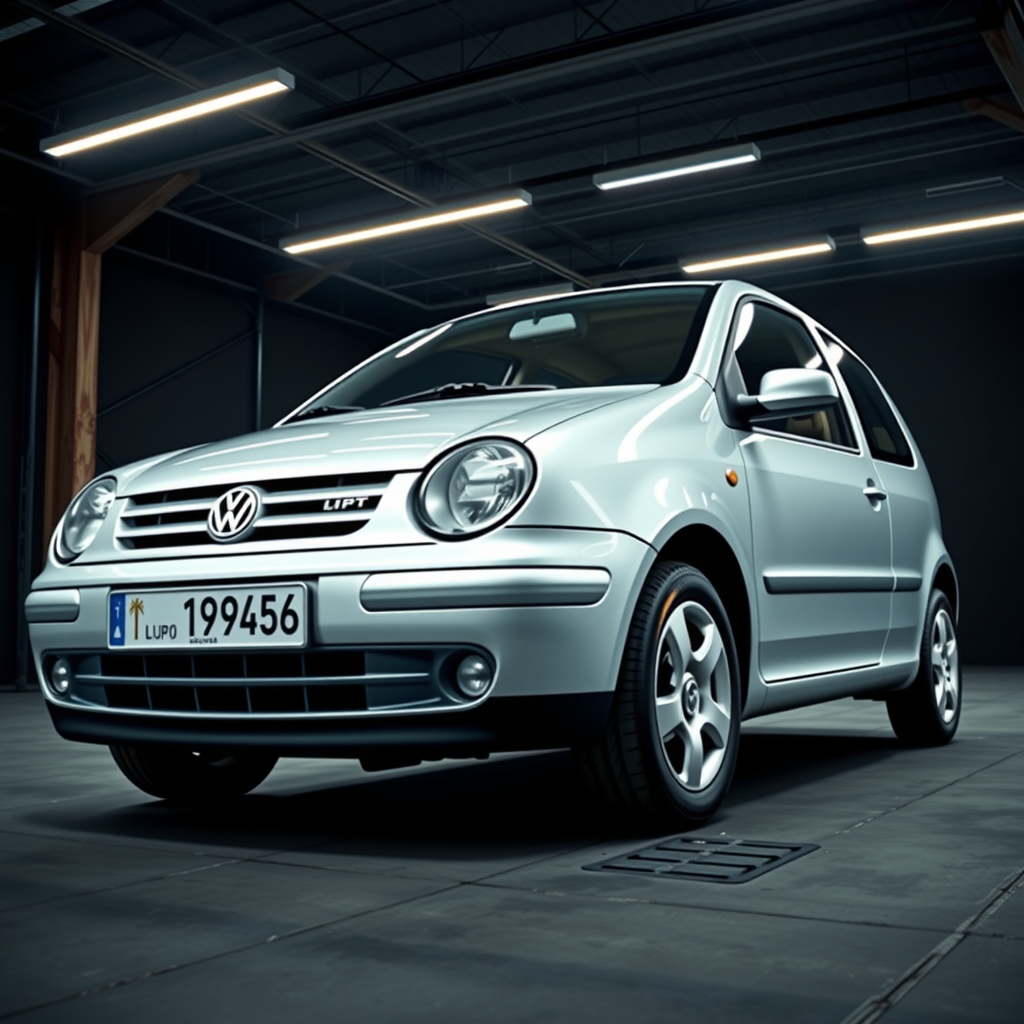

Volkswagen Lupo 6X, 6E side profile — Volkswagen Lupo wheel fitment

Volkswagen Lupo wheel fitment — 6X, 6E

By Torque, AIWheelTech vehicle & fitment specialist · 1994–2015
Volkswagen Lupo wheel fitment at a glance — The Volkswagen Lupo 6X, 6E (1994–2015) uses a 4x100 bolt pattern, 57.1 mm centre bore, M12x1.5 bolts torqued to ~110 Nm. It accepts ~5J–8J wheels at ET10–ET45.

Overview

The Volkswagen Lupo (Typ 6X) is a city car produced by the German manufacturer from 1998 to 2005. It shares many aspects with the SEAT Arosa, both derived from the Polo Mk3 platform but differing in styling and equipment. The Lupo is a three-door hatchback featuring front-engine, front-wheel-drive layout. Introduced in October 1998 to fill the gap at the bottom of Volkswagen's model range caused by the larger Polo, it was assembled in Wolfsburg (Germany) and Brussels (Belgium). Initially offered in two trim levels—E and S—with later additions including Sport and GTI variants.

Volkswagen Lupo wheel fitment

Volkswagen Lupo wheel fitment for the Volkswagen Lupo 6X, 6E (1994–2015): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)4x100
Centre bore57.1 mm
Bolt / threadM12x1.5 (bolts)
Wheel-bolt torque110 Nm
Seat typetapered
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front5J–8JET10–ET45

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Volkswagen Lupo →Get them fitted (UK)

UK popularity & demand

~4,273 Volkswagen Lupo licensed on UK roads — top 20% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 4,273 Volkswagen Lupo on UK roads, placing it in the top 20% of car models by volume across our fitment database.

That makes Volkswagen Lupo wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
1.6 16v GTI1.6L I4petrol125 hpFWD
1.4 16v FSI1.4L I4petrol105 hpFWD
1.4 16v Sport1.4L I4petrol100 hpFWD
1.4 16v1.4L I4petrol75 hpFWD
1.4 TDI1.4L I3 turbo dieseldiesel75 hpFWD
1.2 TDI1.2L I3 turbo dieseldiesel61 hpFWD
1.4 8v1.4L I4petrol60 hpFWD
1.7 SDI1.7L I4diesel60 hpFWD
1.0 8v1.0L I4petrol50 hpFWD

Performance

VariantPower0–62 mphTop speed
1.0 8v50 hp17.7 s94 mph
1.4 8v60 hp14.3 s99 mph
1.4 16v75 hp12 s107 mph
1.4 16v Sport100 hp10 s117 mph
1.4 16v FSI105 hp10 s124 mph
1.6 16v GTI125 hp7.8 s129 mph
1.2 TDI61 hp14.5 s103 mph
1.4 TDI75 hp12.3 s106 mph
1.7 SDI60 hp16.8 s97 mph

Dimensions

Length3524 mm
Width1640 mm
Height1457 mm
Wheelbase2318 mm
Kerb weight975 kg

Body styles & production

Body stylesHatchback
Produced1994–2015
Units produced480,000

Trim levels

ESSportGTI

Factory colours

REFLEXSILBER-MET.CANDYWEISSTORNADOROTSCHWARZ AB 6/2001PLATINUM GREY-MET.RAVENNABLAU-MET.Schwarz Solide steinblauBlue Anthrazit PearlRavennablau MetallicReflexsilber MetallicCandy White Solidsunflower uni

History & notable variants

The Lupo faced slow sales and missed its targets. In 2001, Volkswagen planned to discontinue the model and replace it with a Chinese-built car but ultimately decided on the Brazilian-designed Fox as its successor in Europe. The Lupo's production ended in June 2005.

Reliability & owner notes
