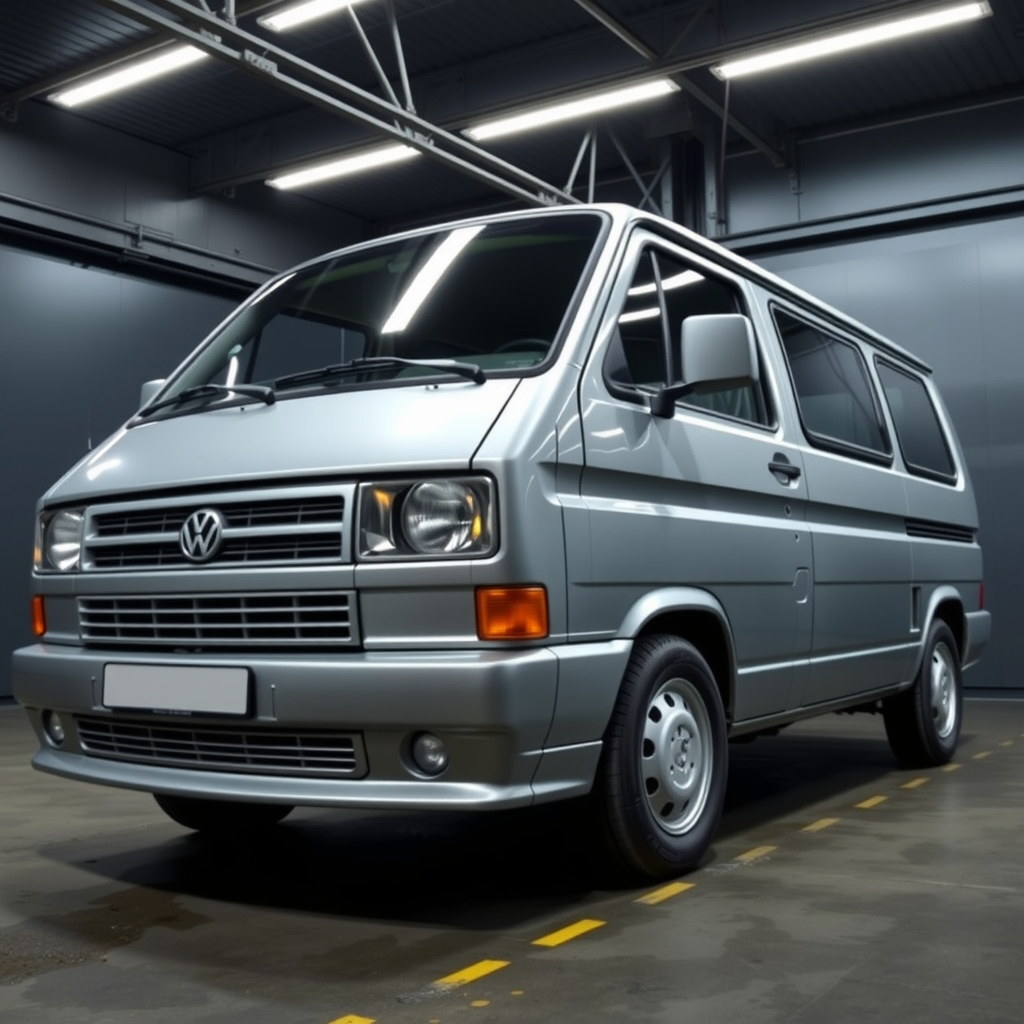

Volkswagen (T4) 7DZ side profile — Volkswagen Transporter wheel fitment

Volkswagen Transporter wheel fitment — T4 7DZ

By Torque, AIWheelTech vehicle & fitment specialist · 1990–2003
Volkswagen Transporter wheel fitment at a glance — The Volkswagen (T4) 7DZ (1990–2003) uses a 5x112 bolt pattern, 57.1 mm centre bore, M14x1.5 bolts torqued to ~120 Nm. It accepts ~6.5J–8.5J wheels at ET33–ET51.

Overview

The Volkswagen Transporter (T4), marketed in North America as the Volkswagen EuroVan, is a van produced by the German manufacturer Volkswagen Commercial Vehicles between 1990 and 2004. It succeeded the Volkswagen Type 2 (T3) and was superseded by the Volkswagen Transporter (T5). The T4 marked a significant shift for Volkswagen with its front-mounted, water-cooled engine layout, which replaced the air-cooled rear-engine design of previous models. Available in various body styles including vans, pickups, campervans, and special vehicles like ambulances, the T4 was known for its versatility and adaptability to different markets and uses.

Volkswagen Transporter wheel fitment

Volkswagen Transporter wheel fitment for the Volkswagen (T4) 7DZ (1990–2003): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x112
Centre bore57.1 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque120 Nm
Seat typeradius
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–8.5JET33–ET51

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Volkswagen Transporter →Get them fitted (UK)

UK popularity & demand

~16,862 Volkswagen Transporter licensed on UK roads — top 11% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 16,862 Volkswagen Transporter on UK roads, placing it in the top 11% of car models by volume across our fitment database.

That makes Volkswagen Transporter wheel fitment a high-demand spec to keep in stock. It is one reason we track it here.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Engines & drivetrain

VariantEngineFuelPowerDrive
2.8 VR6 (late)VR6 DOHC 24v, 2792 ccpetrol204 hpFWD|AWD
2.5 TD (late)inline-5 SOHC 10v, 2461 ccdiesel151 hpFWD|AWD
2.8 VR6 (early)VR6 DOHC 12v, 2792 ccpetrol140 hpFWD|AWD
2.5 (late)inline-5 SOHC 10v, 2461 ccpetrol115 hpFWD|AWD
2.5 (early)inline-5 SOHC 10v, 2461 ccpetrol110 hpFWD|AWD
2.5 TDI (late)inline-5 SOHC 10v, 2461 ccdiesel102 hpFWD|AWD
2.5 TDI (early)inline-5 SOHC 10v, 2461 ccdiesel88 hpFWD|AWD
2.5 TD (early)inline-5 SOHC 10v, 2461 ccdiesel88 hpFWD|AWD
2.0inline-4 SOHC 8v, 1968 ccpetrol84 hpFWD|AWD
2.4 D (late)inline-5 SOHC 10v, 2370 ccdiesel78 hpFWD|AWD
2.4 D (early)inline-5 SOHC 10v, 2370 ccdiesel75 hpFWD|AWD
1.9 TDinline-4 SOHC 8v, 1896 ccdiesel68 hpFWD|AWD
1.8inline-4 SOHC 8v, 1798 ccpetrol67 hpFWD|AWD
1.9 Dinline-4 SOHC 8v, 1896 ccdiesel61 hpFWD|AWD

Performance

VariantPower0–62 mphTop speed
2.5 petrol115 hp

Dimensions

Length4707 mm
Width1840 mm
Height1940 mm
Wheelbase2920 mm

Body styles & production

Body stylesVan, Pickup
Produced1990–2003
Units produced1,900,000

Trim levels

CLGLGLSMV WeekenderWestfalia Camperised

Factory colours

Schwarz Solidk1 orixweiss metDeep Black Metallicm ibizarotnebioblau met. ( transp. )Toffee Braun MetallicSalsa Red SolidIndigoblue Pearl MetallicReflexsilber MetallicDeep Black Solid

History & notable variants

Introduced in 1990, the T4 was a major departure from earlier Volkswagen vans with its front-engine layout. This change was prompted by the success of similar moves in passenger cars but delayed due to internal decisions favoring rear-engined designs. The T4 underwent a significant facelift in 1996 to accommodate the VR6 engine, leading to short and long-nose versions (T4a and T4b). Production ceased in 2003 after nearly 14 years of manufacturing.

Reliability & owner notes
