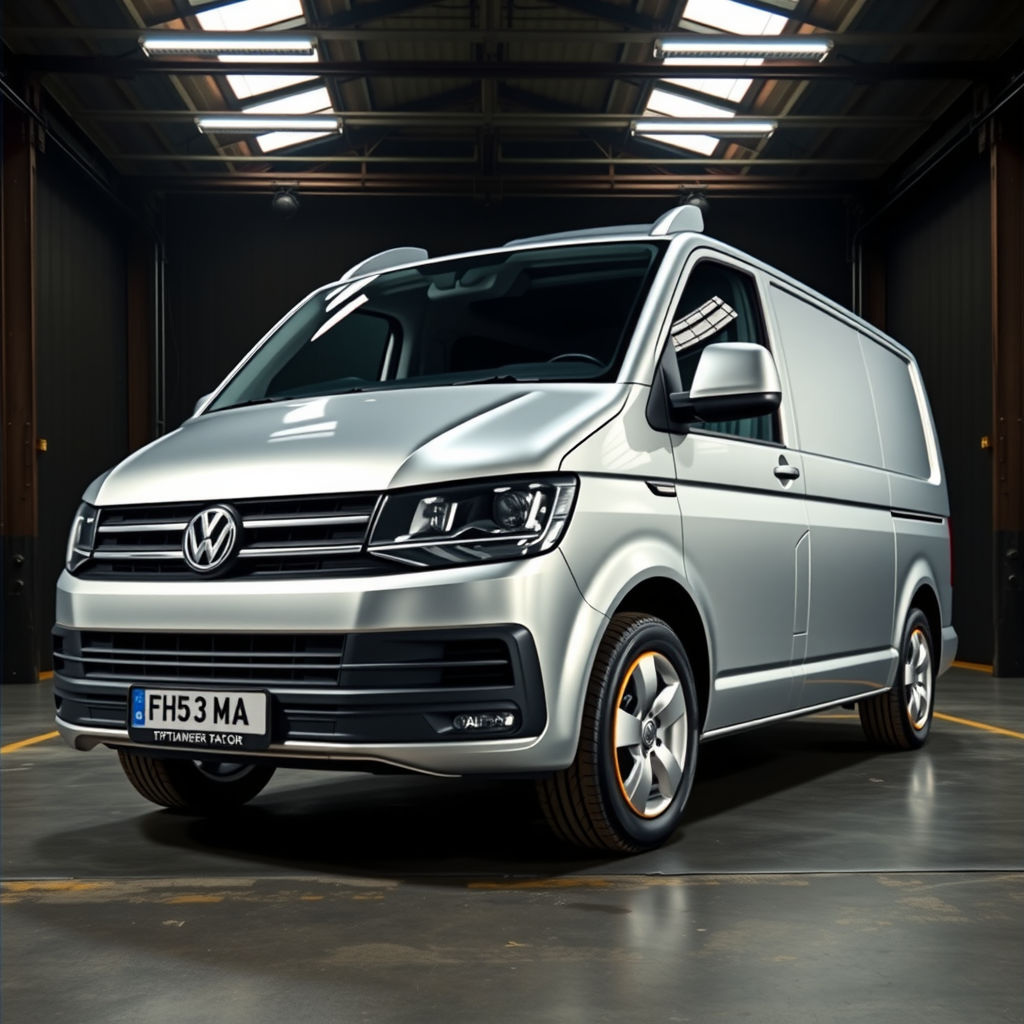

Volkswagen (T6.1) 7HMA side profile — Volkswagen Transporter wheel fitment

Volkswagen Transporter wheel fitment — T6.1 7HMA

By Torque, AIWheelTech vehicle & fitment specialist · 2019–2023
If you only need the numbers for Volkswagen Transporter wheel fitment: The Volkswagen (T6.1) 7HMA (2019–2023) uses a 5x120 bolt pattern, 65.1 mm centre bore, M14x1.5 bolts torqued to ~140 Nm. It accepts ~6.5J–9.5J wheels at ET35–ET56.

Volkswagen Transporter wheel fitment

Volkswagen Transporter wheel fitment for the Volkswagen (T6.1) 7HMA (2019–2023): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)5x120
Centre bore65.1 mm
Bolt / threadM14x1.5 (bolts)
Wheel-bolt torque140 Nm
Seat typeradius
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front6.5J–9.5JET35–ET56

Go wider and the offset has to rise with it, about 8 to 10 ET per extra 1J, or the wheel pokes past the arch. The fit-check settles the exact offset and any spacer.

Browse wheels that fit a Volkswagen Transporter →Get them fitted (UK)

UK popularity & demand

~16,862 Volkswagen Transporter licensed on UK roads — top 11% of models by volume.

Based on DfT VEH0124 vehicle-parc data (2025), there are approximately 16,862 Volkswagen Transporter on UK roads, placing it in the top 11% of car models by volume across our fitment database.

With that many on the road, Volkswagen Transporter wheel fitment is a spec fitters see constantly. We keep it current for that reason.

Source: DfT/DVLA licensed-vehicle statistics (VEH0124), matched to the AIWheelTech fitment database.

Overview

The Volkswagen Transporter (T6.1) 7HMA is the refreshed version of the T6 model, introduced in 2019. It continues to be produced on a platform shared with Ford and features updated styling and improved technology compared to its predecessor. The vehicle is marketed globally as a versatile commercial van, available in various body styles including panel vans and chassis cab configurations.

Dimensions

Kerb weight2,607 to 2,725 kg

Source: EU type-approval data (EEA).

Body styles & production

Produced2019–2023

Trim levels

HighlineLife

Factory colours

Shadow BlueAscot Grey

History & notable variants

The T6.1 generation saw minor updates over the original T6 model introduced in 2016, with changes primarily focused on aesthetics and interior features. Notable for its reliability and versatility, it has been well-received in the commercial vehicle market. The production of this generation is set to continue until at least 2024.
