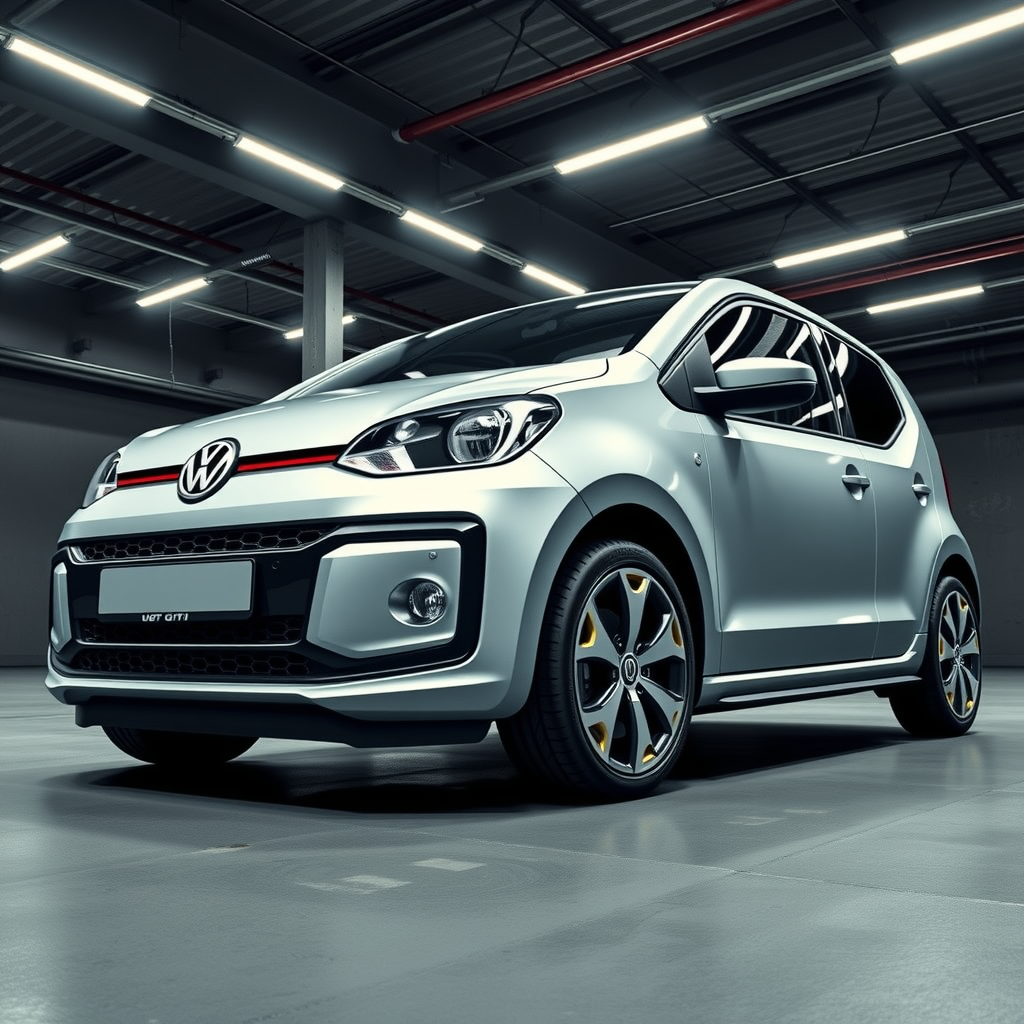

Volkswagen Vw Up! Gti AA side profile — Volkswagen Up! wheel fitment

Volkswagen Up! wheel fitment — Vw Gti AA

By Torque, AIWheelTech vehicle & fitment specialist · 2019–2023
Volkswagen Up! wheel fitment at a glance — The Volkswagen Vw Up! Gti AA (2019–2023) uses a 4x100 bolt pattern, 57.1 mm centre bore, M12x1.5 bolts torqued to ~110 Nm. It accepts ~5J–7.5J wheels at ET25–ET40.

Overview

The Volkswagen up! is a city car produced by the Volkswagen Group from 2011 to 2023. It is part of the New Small Family (NSF) series, alongside the SEAT Mii and Škoda Citigo which are rebadged versions with different front and rear fascias. Production began in December 2011 at the Volkswagen Plant in Bratislava, Slovakia, and continued until October 2023.

Volkswagen Up! wheel fitment

Volkswagen Up! wheel fitment for the Volkswagen Vw Up! Gti AA (2019–2023): the factory PCD, centre bore and bolt spec, then the aftermarket width and offset window we fit to.

Bolt pattern (PCD)4x100
Centre bore57.1 mm
Bolt / threadM12x1.5 (bolts)
Wheel-bolt torque110 Nm
Seat typetapered
Factory setupsquare
TPMSindirect

Aftermarket wheel sizes — read per position:

PositionWidthOffset
Front5J–7.5JET25–ET40

As a rule, each extra 1J of width wants roughly +8–10 ET to keep the wheel tucked. The exact offset and any spacer are confirmed by the fit-check.

Browse wheels that fit a Volkswagen Up! →Get them fitted (UK)

Engines & drivetrain

VariantEngineFuelPowerDrive
1.0L TSI1.0L turbocharged petrol enginepetrol115 hpFWD
Electric version32.3 kWh lithium-ion batteryelectricFWD

Performance

VariantPower0–62 mphTop speed
1.0L TSI115 hp8.8 s75 mph
Electric version12.4 s80 mph

Dimensions

Length3540 mm
Width1641 mm
Height1478 mm
Wheelbase2420 mm
Kerb weight929 kg

Body styles & production

Body stylesHatchback, Cross-up!
Produced2019–2023

Trim levels

Take UpMove UpHigh UpUp BlackUp White

Factory colours

Schwarz Solidk1 orixweiss metPure White SolidOrixweiss Metallict tribu ii yellow met.Pool Blau Solidw spring green met.Deep Black Metallicrocket orange met.Uranogrey SolidSilver Leaf MetallicDEEPBLACK-MET.REFLEXSILBER-MET.CANDYWEISSBLANC PURURANOGRAUTORNADOROT

History & notable variants

The Up was first shown as a concept car in 2007 at the Frankfurt Motor Show. It went into production with a front-engine, front-wheel-drive layout using the NSF platform and a three-cylinder petrol engine. The model won the World Car of the Year award in 2012. A GTI variant was introduced in January 2018 featuring a turbocharged 1.0-litre three-cylinder engine producing 115 PS (113 bhp; 85 kW).
